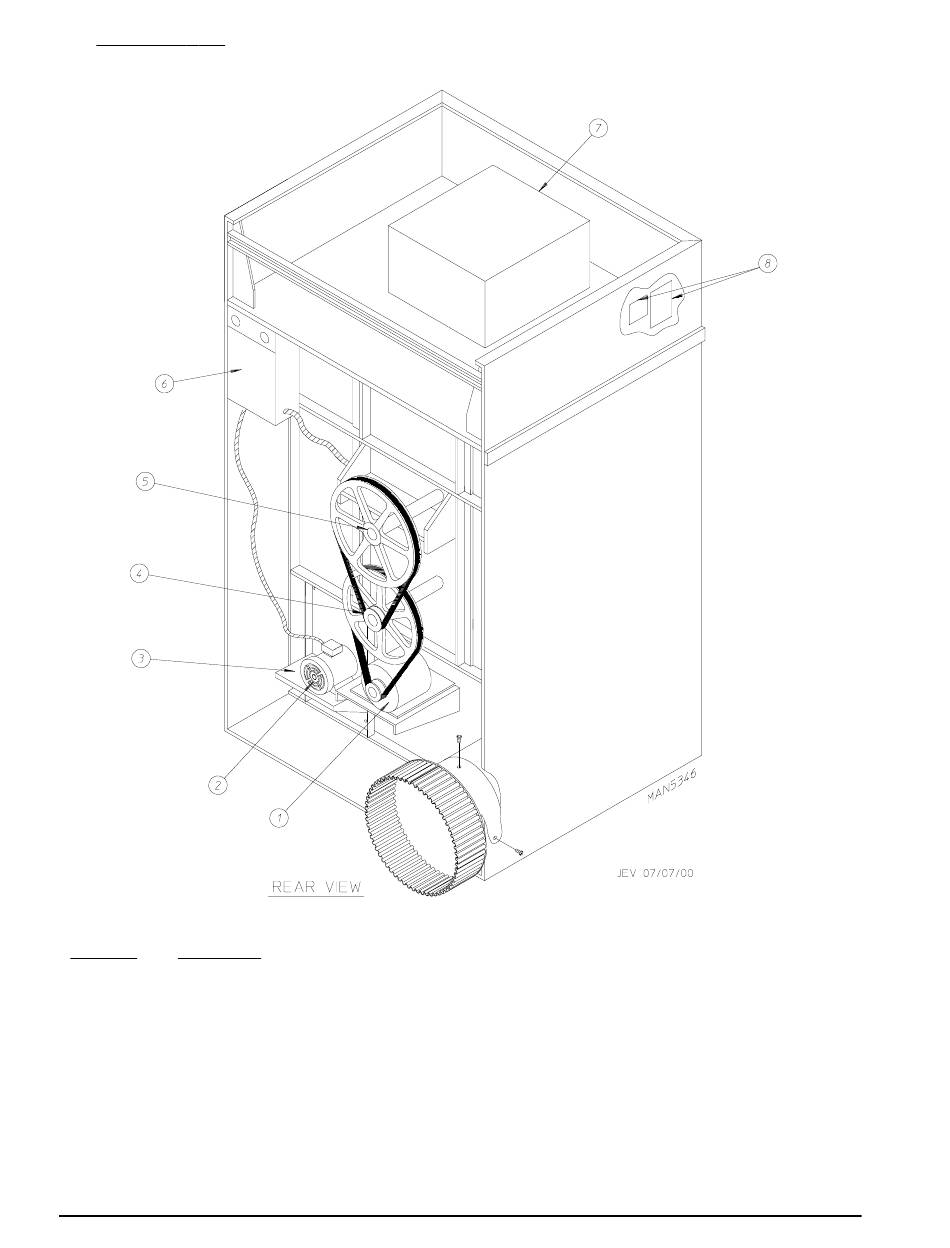

2. Dryer Rear View
Illus. No.
Description
1
Tumbler Drive Motor Assembly
2
Blower Motor Mount Assembly
3
Impellor (fan/blower) Assembly
4
Idler Bearing Mount Assembly
5
Tumbler Bearing Mount Assembly
6*
Electric Service Relay Box
7
Heating Unit
8
Data Label and Installation Label
*
Electric service connections are made in this box.
10
American Dryer Corp.
113202 - 27
