Evaluation Board User Guide

SETTING UP THE EVALUATION BOARD

INSTALLING THE SigmaStudio SOFTWARE

Users can download the latest version of SigmaStudio by
completing the following steps:
1. Go to www.analog.com/sigmastudiodownload
the Email: and Software Key: boxes. You will get a
software key with the evaluation board, or you can contact
Analog Deviecs, Inc., at
software key.
2. Chose which version of SigmaStudio you would like and
click Submit.
3. Download the installer file, open the file, and extract the
files to your PC.
4. Install the Microsoft .NET Framework if you do not
already have it installed.
5. Install SigmaStudio by double-clicking setup.exe and
follow the prompts.

INSTALLING THE USBi DRIVERS

For Windows XP:
SigmaStudio must be installed to use the USBi. When
SigmaStudio has been properly installed, connect the USBi
to an available USB port with the included USB cable. At this
point, Windows® XP recognizes the device and prompts the user
to install drivers (see Figure 6).

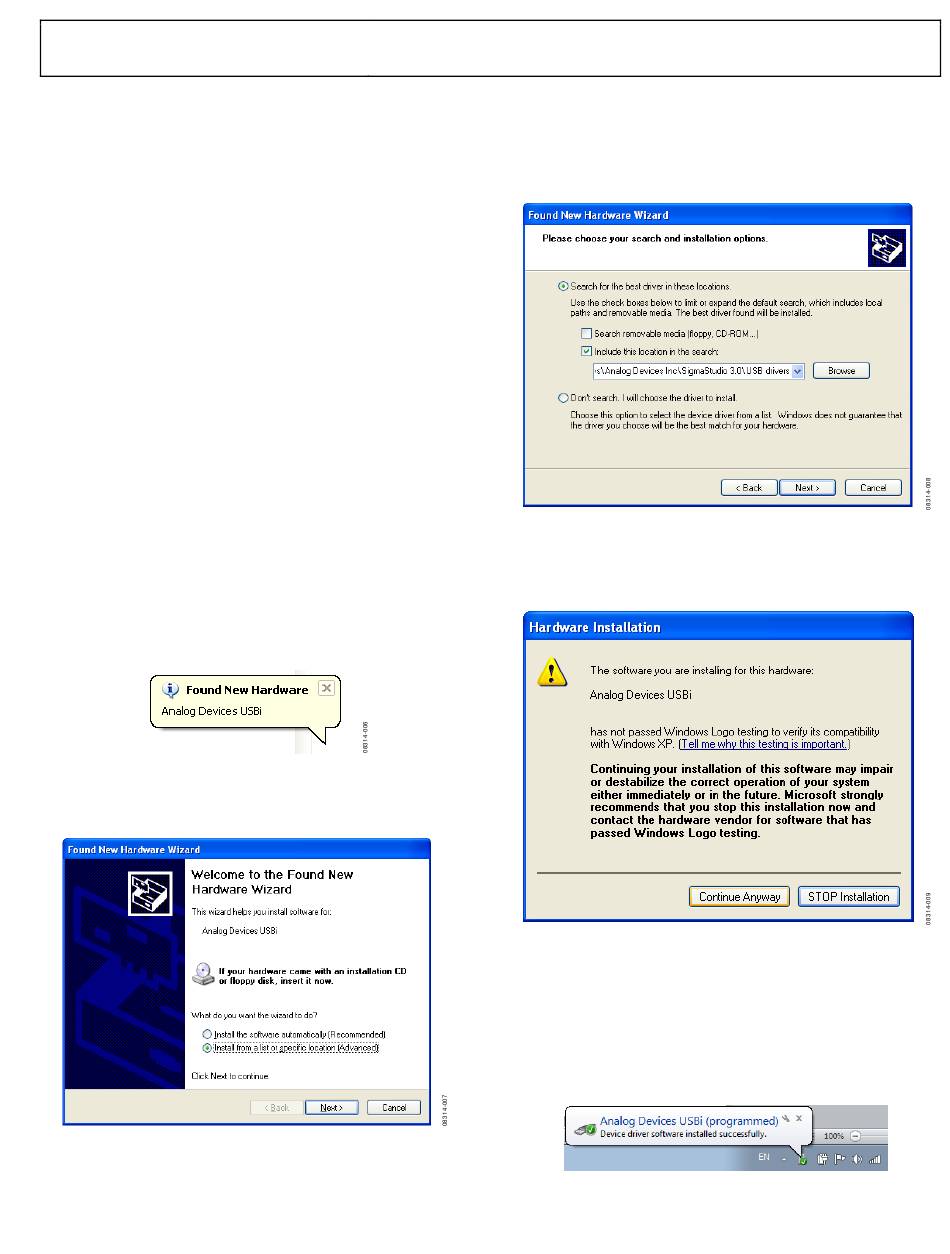

Figure 6. Found New Hardware Notification
Select the Install from a list or specific location (Advanced)
option and click Next > (see Figure 7).
Figure 7. Found New Hardware Wizard—Installation
and fill in
sigmadsp@analog.com to request a
Click Search for the best driver in these locations, select
Include this location in the search, and click Browse to find
the SigmaStudio 3.7.x\USB drivers directory (see Figure 8).
Figure 8. Windows Found New Hardware Wizard—Search and
When the warning about Windows Logo testing appears, click
Continue Anyway (see Figure 9).
Figure 9. Windows Logo Testing Warning
The USBi drivers should now be installed successfully. Leave
the USBi connected to the PC.
For Windows 7 and Vista:
Connect the USBi to an available USB port with the included
USB cable. At this point, Windows® 7 recognizes the device and
installs the drivers (see Figure 10).
Rev. 0 | Page 5 of 27
Installation Options
Figure 10. USBI Driver Installed correctly
UG-177
