User Guide

SETTING UP THE EVALUATION BOARD

DEFAULT SWITCH AND JUMPER SETTINGS (S/
2
PDIF INPUT, I C MODE)
The EVAL-SSM6515Z consists of two SSM6515s for stereo head-
phone output. Refer to Figure 19
These settings set the EVAL-SSM6515Z for external I
2
I C control using the USBi.
The EVAL-SSM6515Z provides multiple options for configuring the
SSM6515. See Table 3 for the I
settings. By default, the EVAL-SSM6515Z is configured for Address
0x34 (AMP1) and Address 0x35 (AMP2). If other addresses are
required, refer to Table 3.
analog.com
for the switch and jumper settings.
2
S input with
2
C mode and device address

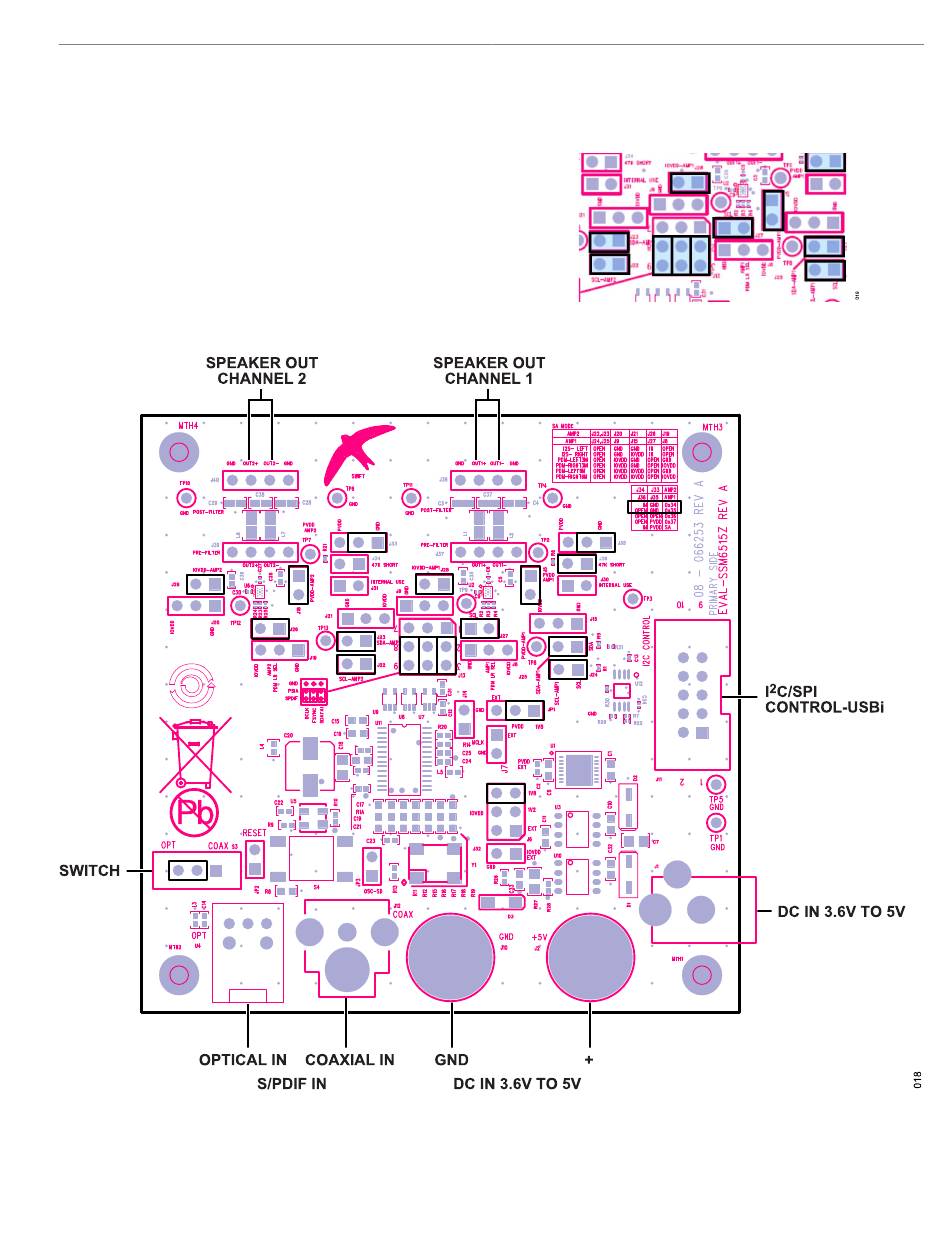

Figure 19. S/PDIF Input, I
To use the on-board S/PDIF receiver I
J13 as shown in Figure 18.
Figure 18. S/PDIF as I
2
C Mode
EVAL-SSM6515
2
S input, insert jumpers for
2
S Source
Rev. 0 | 10 of 23
