INTERFACES

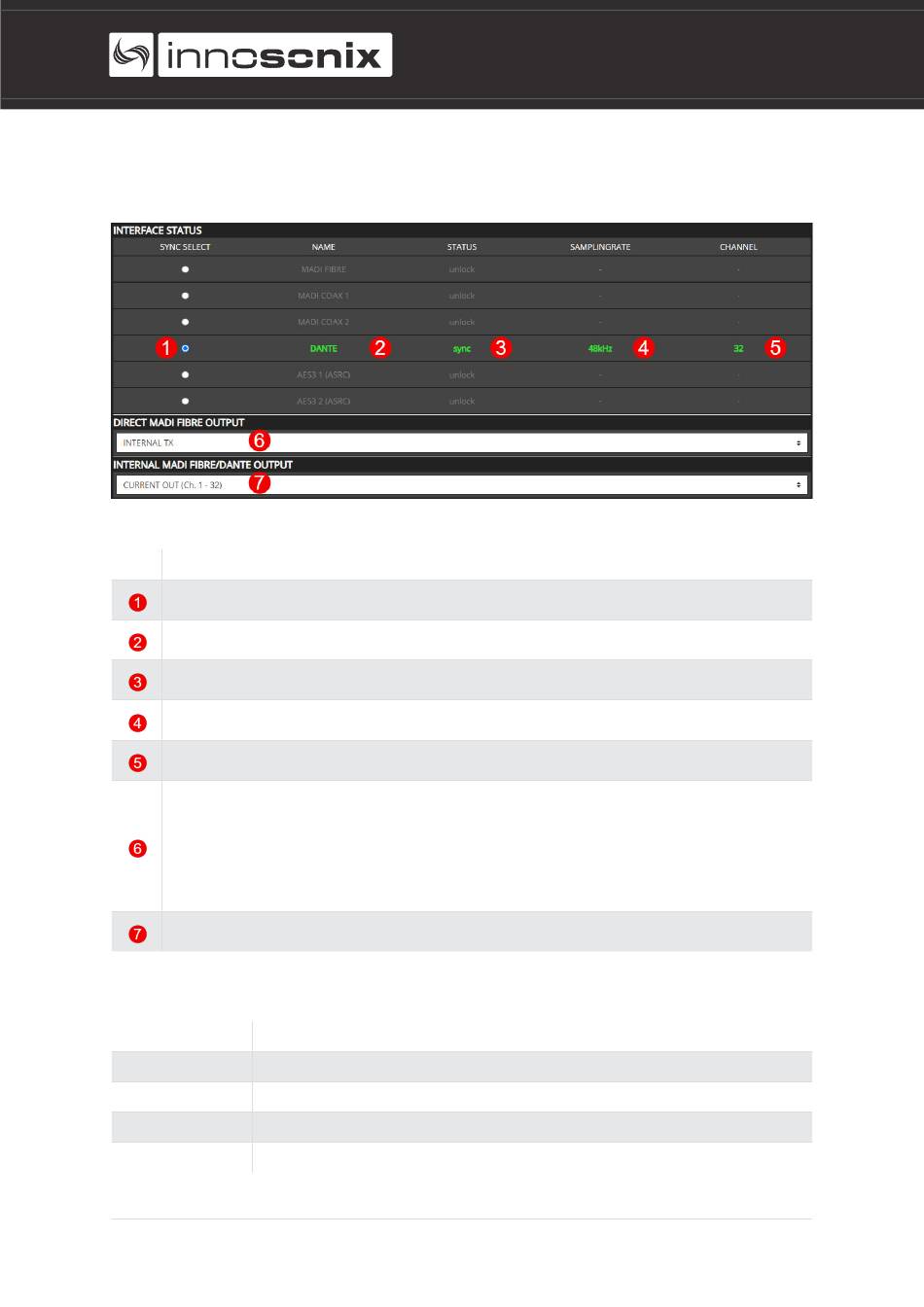

Figure 14. WEBPAGE INTERFACES
NR DESCRIPTION
Select an interface to synchronize the internal audio word clock generation.
Interface name.
Interface status see. SYNC STATUS
Sampling rate.
Available channel on this interface.
Select the source of the MADI FIBRE TX jack. This can either be "INTERNAL TX" which uses the internal MADI
transmitter, or any of the other MADI RX jacks. In the case of an RX jack, the connection is direct routed through
the FPGA with almost zero latency, but a jitter build-up has to be in mind.
The direct through connection can be used to daisy-chain two devices to utilize all 64 channels on a MADI
signal. Device 1 consumes CH1-32, device 2 CH33-64.
Selects a pre-defined output routing of the internal MADI TX / DANTE TX transmitter, see
SYNC STATUS
STATUS DESCRIPTION
unlock No valid carrier or word-clock was detected on that interface.
lock Valid carrier and word-clock but not in phase with the internal audio clock.
sync Valid carrier and word-clock AND in phase with the internal audio clock.
error Unsupported sample rate.
2021-10-20 | Rev. 3.7.5
MA32/D
Chapter 4. SOFTWARE
4.3. USER INTERFACES
OUTPUT PRESETS.
