Element Nr.
12
13
14
15

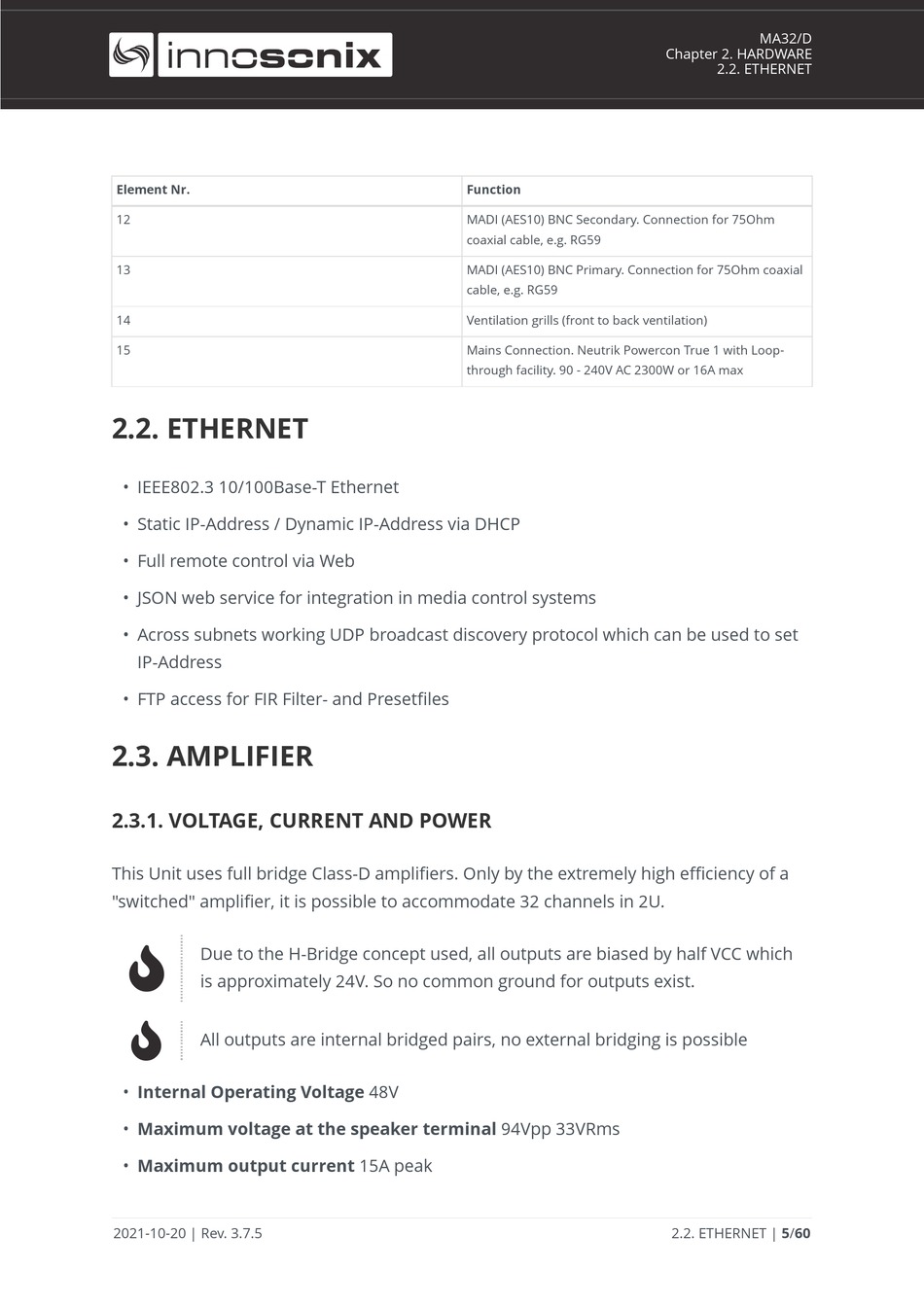

2.2. ETHERNET

• IEEE802.3 10/100Base-T Ethernet
• Static IP-Address / Dynamic IP-Address via DHCP
• Full remote control via Web
• JSON web service for integration in media control systems
• Across subnets working UDP broadcast discovery protocol which can be used to set
IP-Address
• FTP access for FIR Filter- and Presetfiles

2.3. AMPLIFIER

2.3.1. VOLTAGE, CURRENT AND POWER

This Unit uses full bridge Class-D amplifiers. Only by the extremely high efficiency of a
"switched" amplifier, it is possible to accommodate 32 channels in 2U.

Due to the H-Bridge concept used, all outputs are biased by half VCC which
is approximately 24V. So no common ground for outputs exist.

All outputs are internal bridged pairs, no external bridging is possible
• Internal Operating Voltage 48V
• Maximum voltage at the speaker terminal 94Vpp 33VRms
• Maximum output current 15A peak
2021-10-20 | Rev. 3.7.5
Function
MADI (AES10) BNC Secondary. Connection for 75Ohm
coaxial cable, e.g. RG59
MADI (AES10) BNC Primary. Connection for 75Ohm coaxial
cable, e.g. RG59
Ventilation grills (front to back ventilation)
Mains Connection. Neutrik Powercon True 1 with Loop-
through facility. 90 - 240V AC 2300W or 16A max
MA32/D
