Chapter 2. HARDWARE

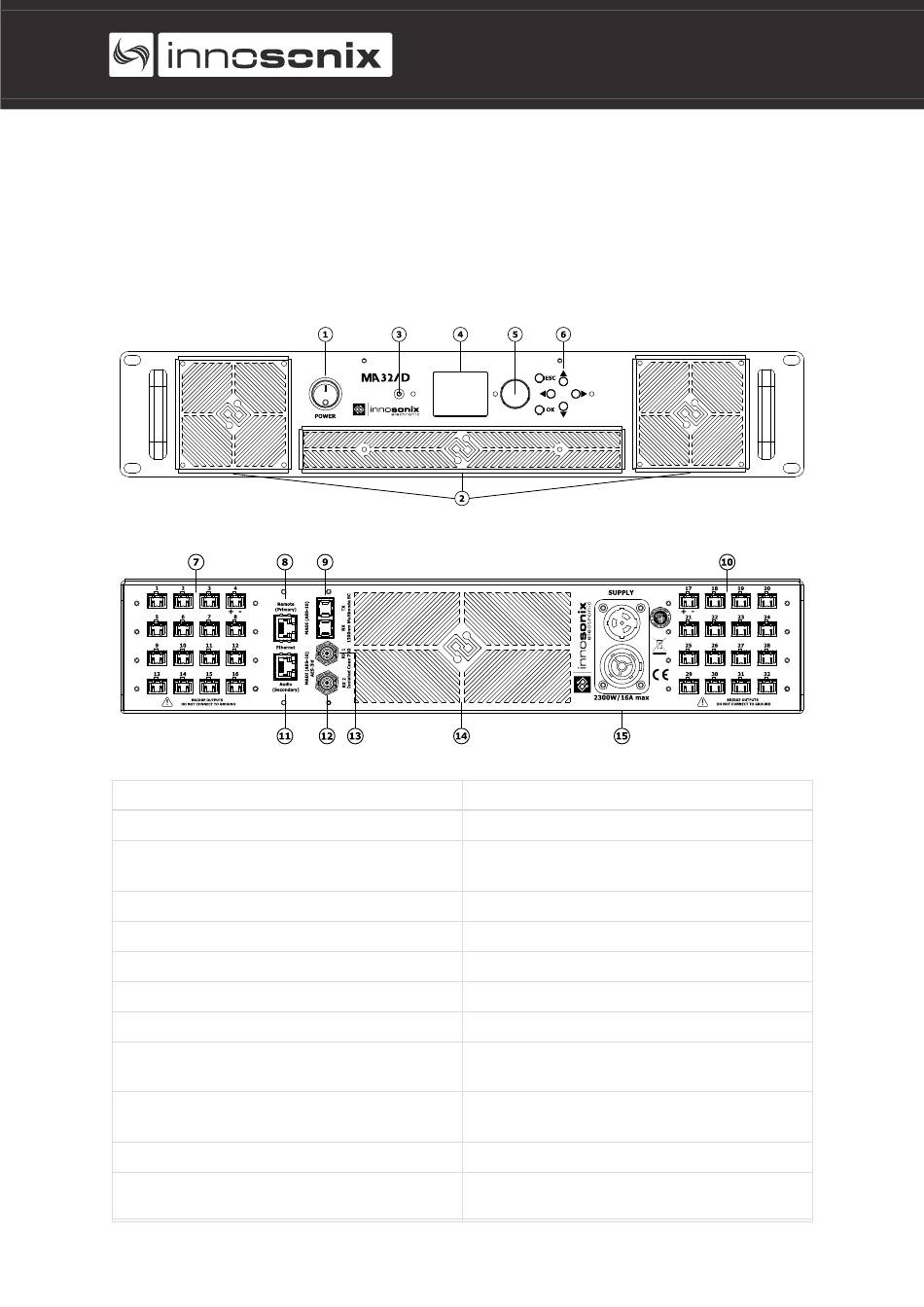

2.1. CONTROLS
Element Nr.
1
2
3
4
5
6
7
8
9
10
11
2021-10-20 | Rev. 3.7.5
100 - 240V, ~50/60Hz
Function
Power switch disconnects the unit from the mains
Ventilation grille. Please clean to ensure an unhindered
airflow through the device
Power LED. Red, Yellow or Green
TFT Display
Encoder knob for adjusting values
Keys to enter values and menu navigation
Speaker terminals channel 1-16
Network connection for remote control and web server. 10
/ 100BaseT Ethernet (DANTE Primary 1000BaseT)
MADI (AES10) Optical. SC Connector for Multimode Optics
1310nm
Speaker terminals channel 17 - 32
Network connection for audio transport (Optional).
1000BaseT Gigabit Ethernet (DANTE Secondary 1000BaseT)
MA32/D
Chapter 2. HARDWARE
2.1. CONTROLS
2.1. CONTROLS | 4/60
