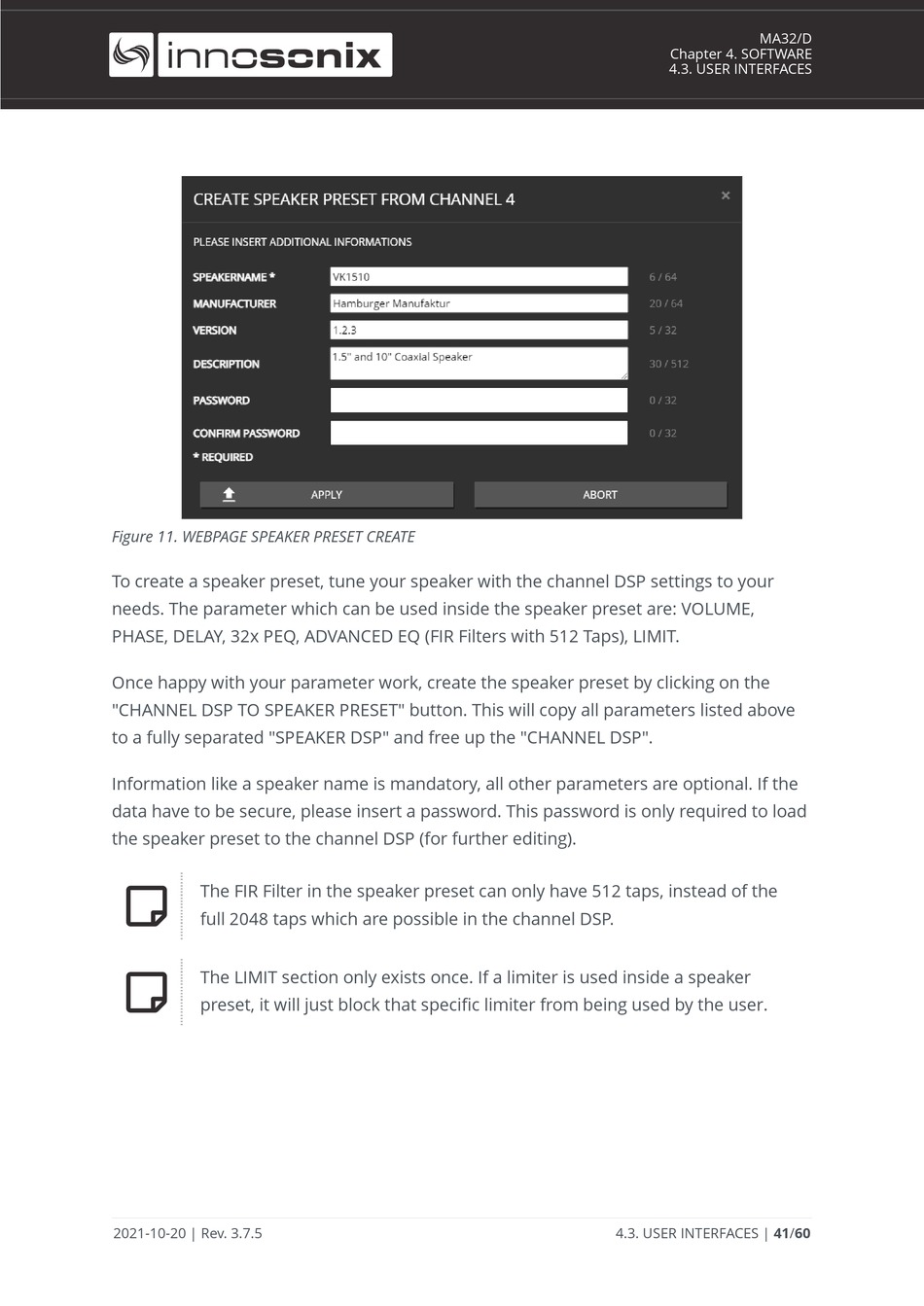

Figure 11. WEBPAGE SPEAKER PRESET CREATE
To create a speaker preset, tune your speaker with the channel DSP settings to your
needs. The parameter which can be used inside the speaker preset are: VOLUME,
PHASE, DELAY, 32x PEQ, ADVANCED EQ (FIR Filters with 512 Taps), LIMIT.
Once happy with your parameter work, create the speaker preset by clicking on the
"CHANNEL DSP TO SPEAKER PRESET" button. This will copy all parameters listed above
to a fully separated "SPEAKER DSP" and free up the "CHANNEL DSP".
Information like a speaker name is mandatory, all other parameters are optional. If the
data have to be secure, please insert a password. This password is only required to load
the speaker preset to the channel DSP (for further editing).
The FIR Filter in the speaker preset can only have 512 taps, instead of the
full 2048 taps which are possible in the channel DSP.
The LIMIT section only exists once. If a limiter is used inside a speaker
preset, it will just block that specific limiter from being used by the user.
2021-10-20 | Rev. 3.7.5
MA32/D
Chapter 4. SOFTWARE
4.3. USER INTERFACES
4.3. USER INTERFACES | 41/60
