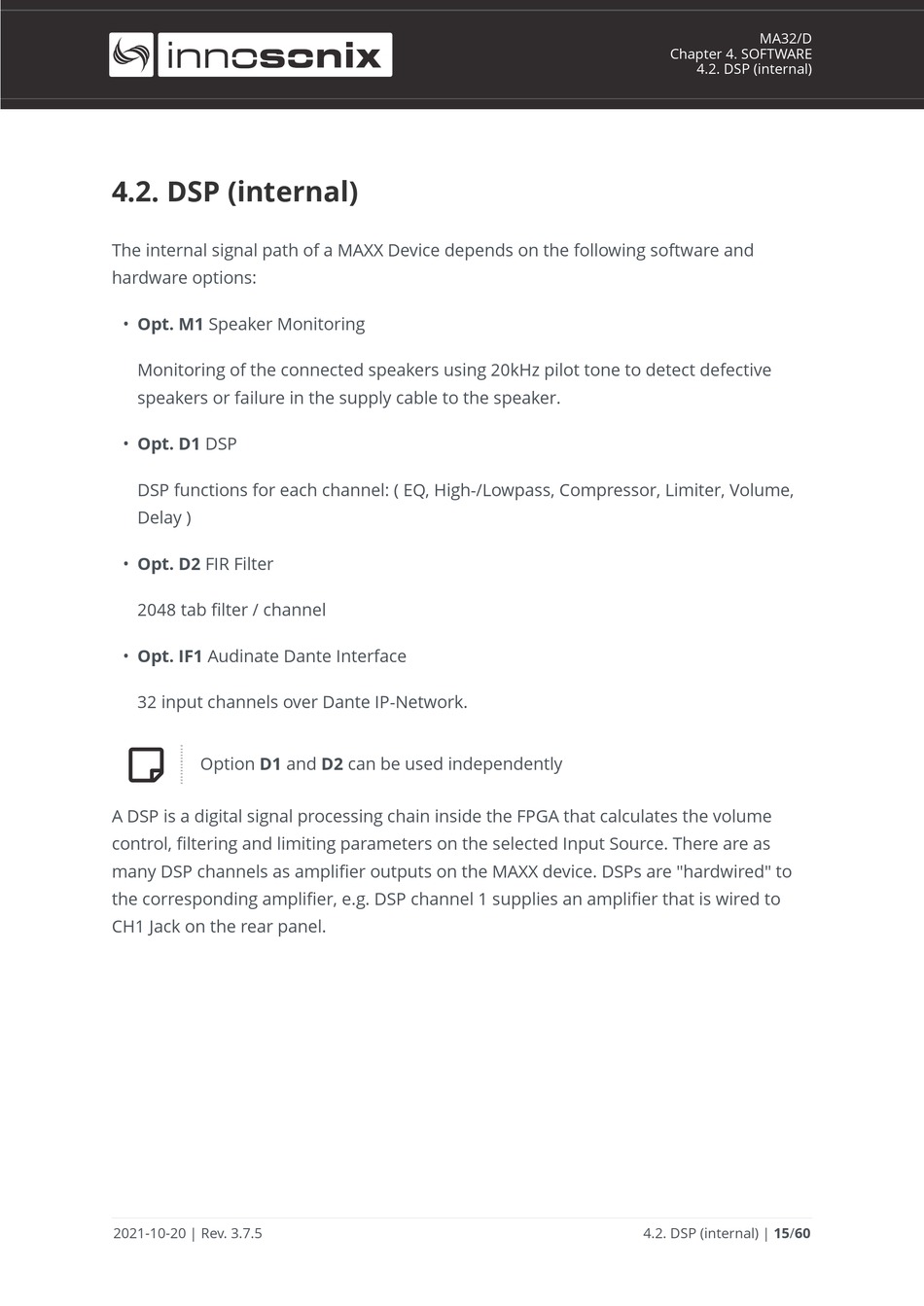

4.2. DSP (internal)

The internal signal path of a MAXX Device depends on the following software and
hardware options:
• Opt. M1 Speaker Monitoring
Monitoring of the connected speakers using 20kHz pilot tone to detect defective
speakers or failure in the supply cable to the speaker.
• Opt. D1 DSP
DSP functions for each channel: ( EQ, High-/Lowpass, Compressor, Limiter, Volume,
Delay )
• Opt. D2 FIR Filter
2048 tab filter / channel
• Opt. IF1 Audinate Dante Interface
32 input channels over Dante IP-Network.

Option D1 and D2 can be used independently
A DSP is a digital signal processing chain inside the FPGA that calculates the volume
control, filtering and limiting parameters on the selected Input Source. There are as
many DSP channels as amplifier outputs on the MAXX device. DSPs are "hardwired" to
the corresponding amplifier, e.g. DSP channel 1 supplies an amplifier that is wired to
CH1 Jack on the rear panel.
