PANEL DESCRIPTION

I Function display

!1
!2
q TRANSMIT INDICATOR (p. 6)
"TX" appears while transmitting.
w BUSY INDICATOR (p. 6)
"BUSY" appears when receiving a signal or when the
squelch opens.
e TAG CHANNEL INDICATOR (p. 9)
Appears when a tag channel is selected.
r CALL CHANNEL INDICATOR
"CALL" appears when the call channel is selected. (p. 5)
t LOW POWER INDICATOR (p. 6)
"LOW" appears when low power is selected.
3

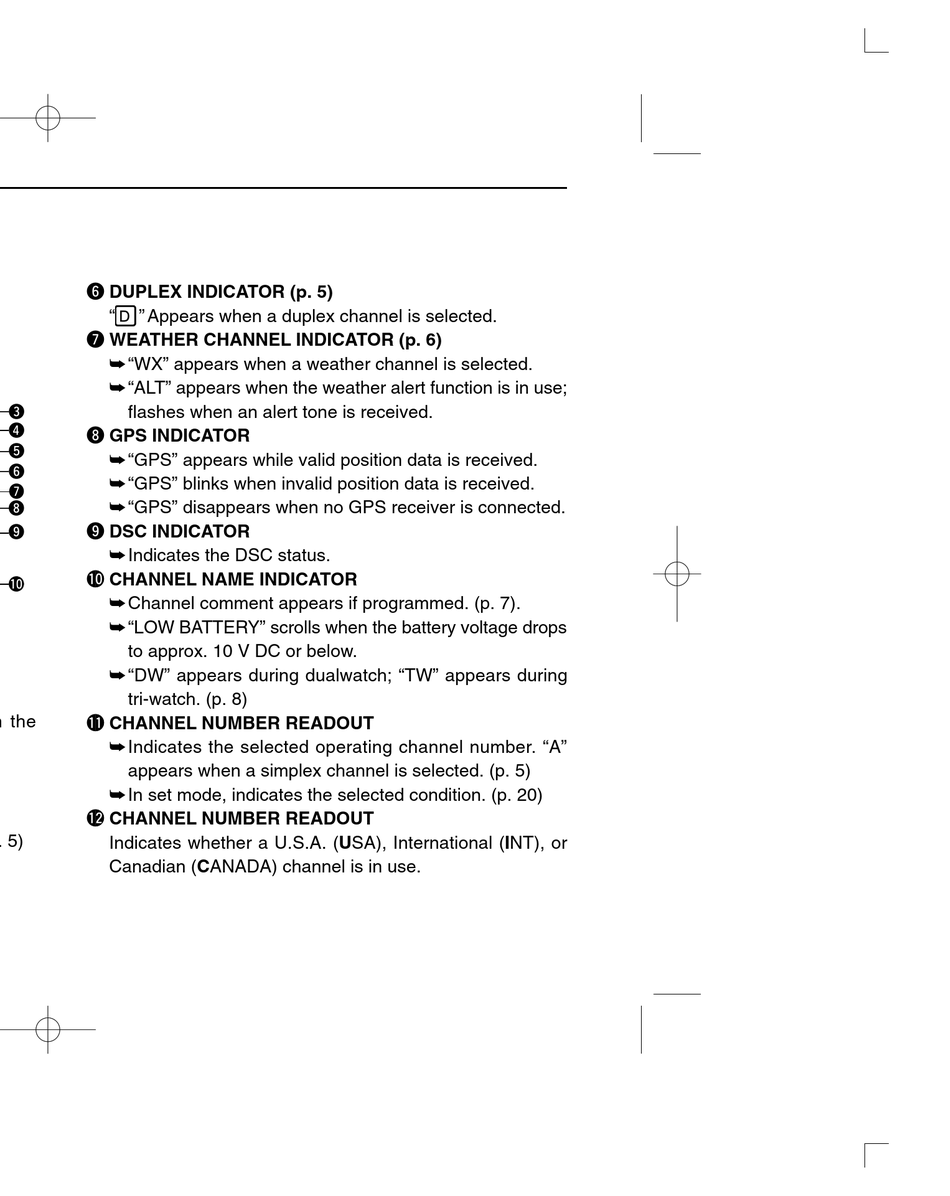

y DUPLEX INDICATOR (p. 5)
u WEATHER CHANNEL INDICATOR (p. 6)
q w
e
r
i GPS INDICATOR
t
y
u
i
o DSC INDICATOR
o
!0 CHANNEL NAME INDICATOR
!0
!1 CHANNEL NUMBER READOUT
!2 CHANNEL NUMBER READOUT
" " Appears when a duplex channel is selected.
➥ "WX" appears when a weather channel is selected.
➥ "ALT" appears when the weather alert function is in use;
flashes when an alert tone is received.
➥ "GPS" appears while valid position data is received.
➥ "GPS" blinks when invalid position data is received.
➥ "GPS" disappears when no GPS receiver is connected.
➥ Indicates the DSC status.
➥ Channel comment appears if programmed. (p. 7).
➥ "LOW BATTERY" scrolls when the battery voltage drops
to approx. 10 V DC or below.
➥ "DW" appears during dualwatch; "TW" appears during
tri-watch. (p. 8)
➥ Indicates the selected operating channel number. "A"
appears when a simplex channel is selected. (p. 5)
➥ In set mode, indicates the selected condition. (p. 20)
Indicates whether a U.S.A. (USA), International (INT), or
Canadian (CANADA) channel is in use.
