I Microphone

q
w
q PTT SWITCH [PTT]
Push and hold to transmit; release to receive. (p. 6)
w CHANNEL UP/DOWN SWITCHES [Y Y ]/[Z Z ]
Push either switch to change the operating channel, set
mode contents, etc. (p. 6)
e CHANNEL 16/CALL CHANNEL SWITCH [16/9]
➥ Same function as the [16•9] switch on the front panel.
(p. 2)
• Selects Ch 16 when pushed. (p. 5)
• Selects call channel when pushed for 1 sec. (p. 5)
• "CALL" appears when call channel is selected.
• Push for 3 sec. to enter call channel programming mode
when call channel is selected. (p. 7)
Microphone
e
PANEL DESCRIPTION
• While push and hold [H/L] on the front panel push [16/9]
to enter memory channel name programming condition.
(p. 7)
• While push and hold [16/9] on the supplied microphone,
turn power ON to toggle the microphone lock function ON
and OFF. (p. 6)

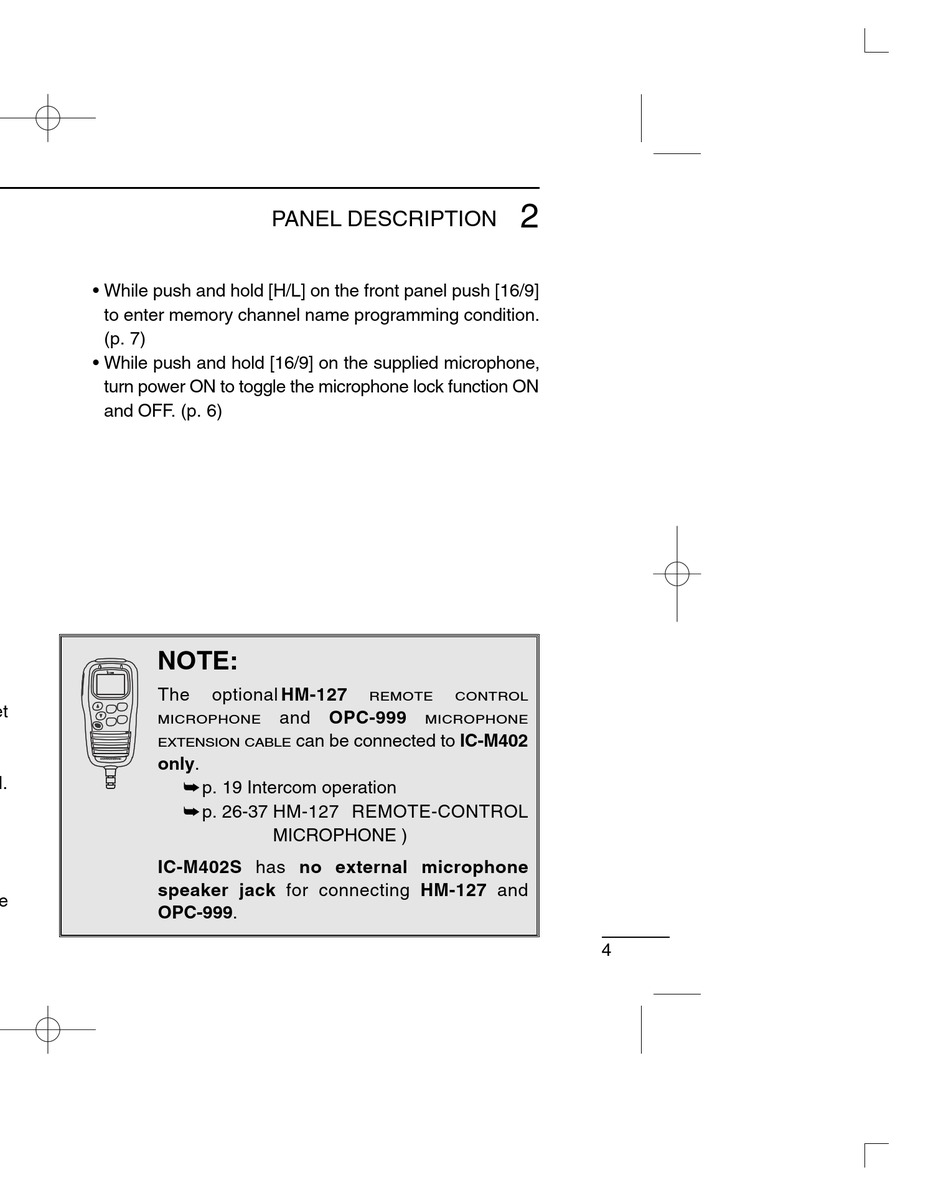

NOTE:
The optional HM-127
and OPC-999
MICROPHONE
can be connected to IC-M402
EXTENSION CABLE
only.
➥ p. 19 Intercom operation
➥ p. 26-37 HM-127 REMOTE-CONTROL
MICROPHONE )
IC-M402S has no external microphone
speaker jack for connecting HM-127 and
OPC-999.
