I Function Display - Icom IC-M402 Instruction Manual

I Function display

i u
TX BUSY
CAN
q
USA
INT
w
L
e
r
VOL
t
SQL
q CHANNEL GROUP INDICATOR (pgs. 6, 31)
Indicates whether an International (INT), U.S.A. (USA) or
Canadian (CAN) channel is selected.
w KEY LOCK INDICATOR (p. 30)
➥ Appears while the key lock function is in use.
➥ Flashes while the all key lock function is in use.
e CHANNEL NUMBER READOUT
➥ Indicates the selected operating channel number. "A"
appears when a simplex channel is selected. (p. 5)
➥In set mode, indicates the selected condition. (pgs. 20, 34)
!6 !5 ! 4 !3
TAG CALL LOW
!2
WX ALT
DUP DUAL
!1
P SCAN TRI
!0
o
y

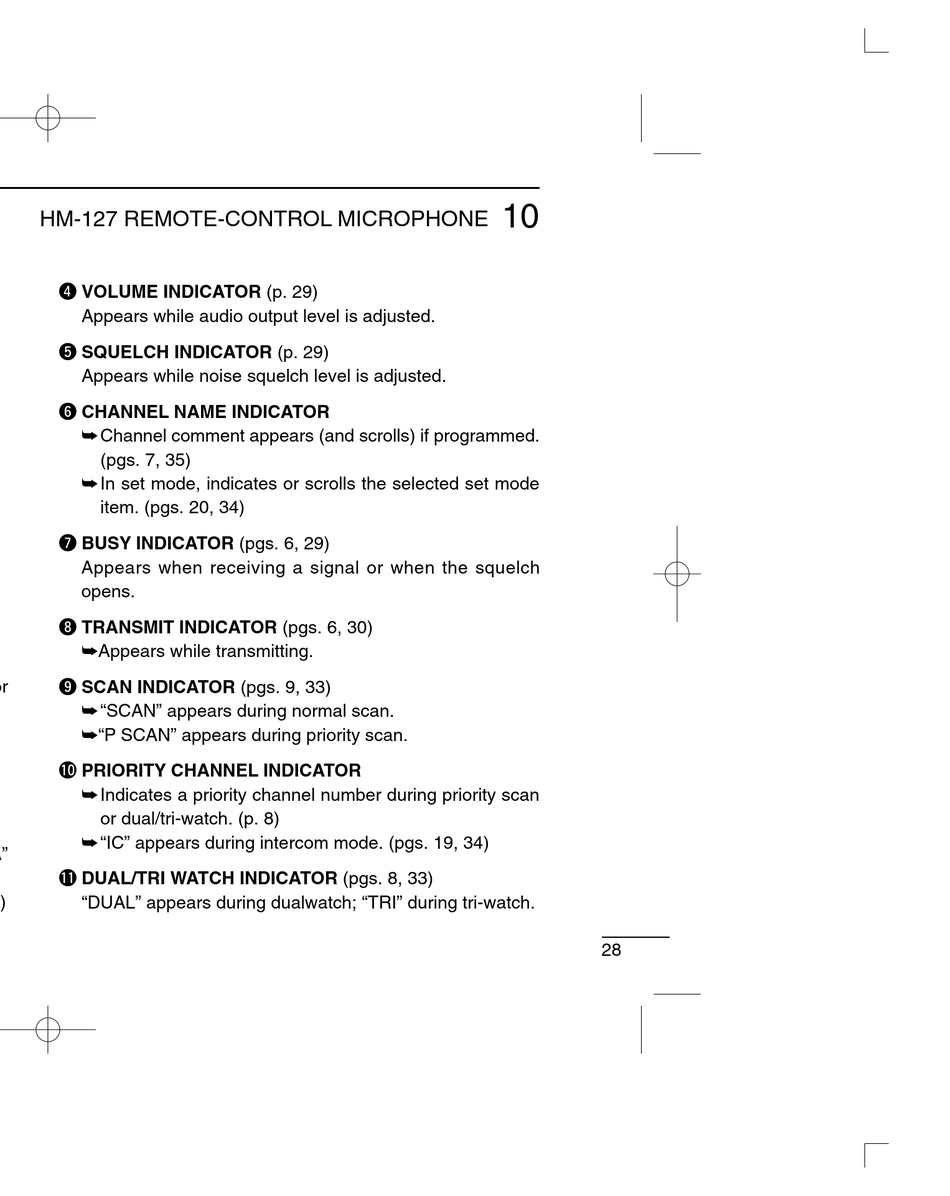

HM-127 REMOTE-CONTROL MICROPHONE
r VOLUME INDICATOR (p. 29)
Appears while audio output level is adjusted.
t SQUELCH INDICATOR (p. 29)
Appears while noise squelch level is adjusted.
y CHANNEL NAME INDICATOR
➥ Channel comment appears (and scrolls) if programmed.
(pgs. 7, 35)
➥ In set mode, indicates or scrolls the selected set mode
item. (pgs. 20, 34)
u BUSY INDICATOR (pgs. 6, 29)
Appears when receiving a signal or when the squelch
opens.
i TRANSMIT INDICATOR (pgs. 6, 30)
➥Appears while transmitting.
o SCAN INDICATOR (pgs. 9, 33)
➥ "SCAN" appears during normal scan.
➥"P SCAN" appears during priority scan.
!0 PRIORITY CHANNEL INDICATOR
➥ Indicates a priority channel number during priority scan
or dual/tri-watch. (p. 8)
➥ "IC" appears during intercom mode. (pgs. 19, 34)
!1 DUAL/TRI WATCH INDICATOR (pgs. 8, 33)
"DUAL" appears during dualwatch; "TRI" during tri-watch.
