TKS TKP TKM
Multi-Function Paddle Wheel Flow Meter

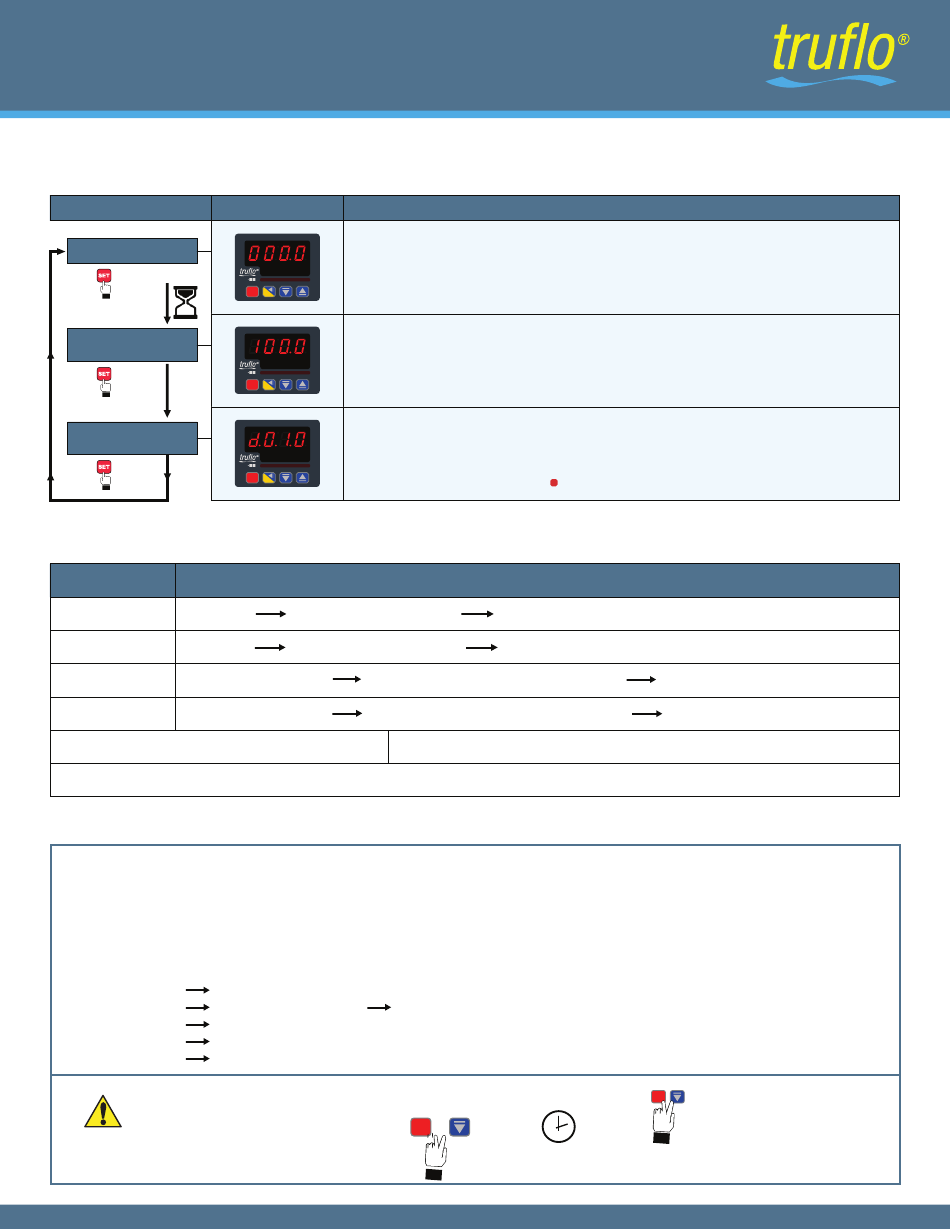

6.6 Programming TKS Model Only
Program Relay Set Point and Relay Delay (Prevents Relay Chatter)
STEPS
Step-1
Home Screen
Press
(HOLD)
3
Step-2
Programming Relay
Set Point
Press
Step-3
Programming Relay
Hysteresis
Press

6.7 Relay ON - OFF Options For TKS Series Only

ALT NO.
ALt = 0 CV > SV
ALt = 1
CV < SV
ALt = 2 SV + d > CV > SV - d
SV + d > CV > SV - d
ALt = 3
CV = Current Display Value = Flow Rate
d = (GPM) Hysteresis Measured around Relay Set Point (± Measured in Gallons)

6.8 General Terms

1) K : Coefficient of Flow Volume,
2) tr : TKM Range of Transmitter - Flow Rate 4-20 mA (4mA = 0) (20mA = Max Range)
TKP - RS 485 Option
3) NPN : Transistor Relay - No Moving Parts
4) Con : Output Control of Flow Total OP2,
Con = n Manual Reset,
Con = c Time Reset (1=10 Secs)
Con = r Auto Reset, Based on Volume (GPM)
Con = E Pulse Output of Unit Volume,
Con = F Pulse Output of Paddle = 5 KHZ Max
Totalizer Reset
To Reset the
for more information visit www.iconprocon.com
ROTATOR SERIES MANUAL
DISPLAY
Flow Meter
GPM
Power On Flow Meter - 24VDC
Home Screen 000.0 (Defaut)
TKS
Alarm
SET
F
Flow Meter
Programming Relay Set Point. (When Relay Switches)
GPM
Range : 0.1 - 999.9 GPM
100.0 GPM (Defaut)
TKS
Alarm
Relay will Activate when this Set Point or (Flow Rate) is Reached
SET
F
Flow Meter
Program Relay Hysteresis - Prevents Relay Chatter - Due to Constant Flow Rate Change
GPM
around Setpoint in Dynamic Flow Process (Cushion ±) Prevents Relay
d = Delay 0.10 GPM
TKS
Alarm
d.0.10 (Defaut)
SET
F
Relay ON : CV < SV - d
Relay ON : CV > SV + d
Relay ON: CV > SV + d or CV < SV - d
Relay OFF: CV > SV + d or CV < SV - d
Note : Factory Set Do Not Change
Auto Reset,
TKP | TKM Series
Flow Totalizer to Zero Press
OPERATION
In the Programming Stage, the Display will Flash
DESCRIPTION
Relay OFF
Relay OFF
SV = Selected Value = Programmed Value
Key Hold 3 sec
SET
24V DC POWER ONLY
(Not for TKP | TKM Series)
Relay OFF
Relay ON
SET
(PressTogether)
