Parts Tk Series; Product Selection; Specifications - Icon Process Controls truflo TK Series Manual

| |
TKS TKP TKM
Multi-Function Paddle Wheel Flow Meter

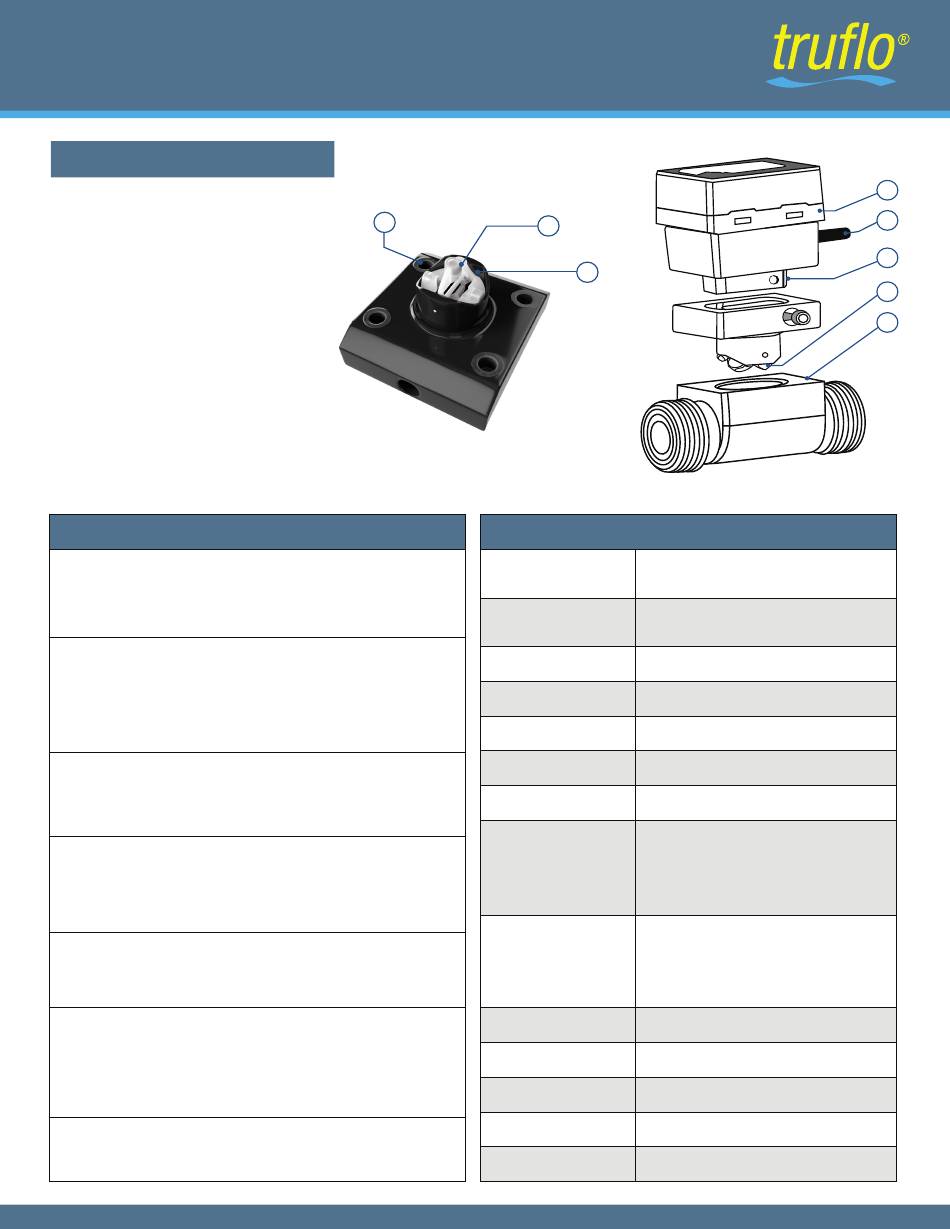

2. Parts TK Series

1. Flow Controller
2. Power Supply
3. Hall Sensor
4. Paddle Wheel
5. Body (PVC, PP, PVDF)
6. Tefzel Paddle
7. Rotor Pin
8. Bearing

3. Product Selection

EXAMPLE
TKP ---- 25 ---- P ---- E ---- T ---- RS ---- M
(1) (2) (3)
1. SERIES
) a T K S = P a d d e l W h e l e
b) TKP = Paddle Wheel Flow Meter - (Flow Rate +
Flow Total) Pulse Output
c) T K M = P a d d e l W h e l e
+ Flow Total) Pulse Output
2. PIPE SIZE
15 | (½") | 20 | (¾")
25 | (1") | 40 | (1 ½")
50 | (2") | 80 | (3") | 100 / (4")
3. BODY MATERIAL
P = PVC
PP = Polypropylene
PF = PVDF
4. SEALS*
E = EPDM (Optional)
F = FFKM (Optional)
5. END CONNECTIONS
S - Sch 80 Soc
T - NPT
B - SDR11 Butt
D - DIN
F - ANSI 150 lb
6. RS = TKP Series (Only) with RS-485 MODBUS
7. M = M12 - 2 Meters - Quick Disconnect (Option)
for more information visit www.iconprocon.com
ROTATOR SERIES MANUAL
6
(4) (5) (6) (7)
F o l w M t e r e i w h t R e a l y + P u s l e
F o l w M e e t - r 4 2 - 0 m A + F ( o l w R a e t
* CPVC Socket Unions Available
* FPM is Standard
7
8

4. Specifications

Liquid - Viscosity
Fluid
Range <.5-20 centistokes
> .5% of F.S. @ 68°F | 20°C |
Accuracy
Repeatability 0.5 of Full Scale
Max Flow Velocity
32.8 ft/s max | 10 m/s max
Min Flow
0.8 ft/s min | 0.3 m/s min
Operating Press
150 psi
33:1
Turndown
Response Time
Real Time
Paddle : Tefzel | Zirconium Ceramic
Body : PVC | PP | PVDF
Material of
Construction
Shaft : Zirconium Ceramic
Seals : FPM* | EPDM
PVC < 140°F | 60°C
PP < 176°F | 80°C
Operating
Temperature
PVDF < 240°F | 115°C
316 SST< 248°F | 120°C
Electronics
122°F °C
Protection Class
NEMA 4X | IP66
Approval
CE | Rohs
60mA Max
Current Draw
Battery
10-30VDC
