Multi-Function Paddle Wheel Flow Meter

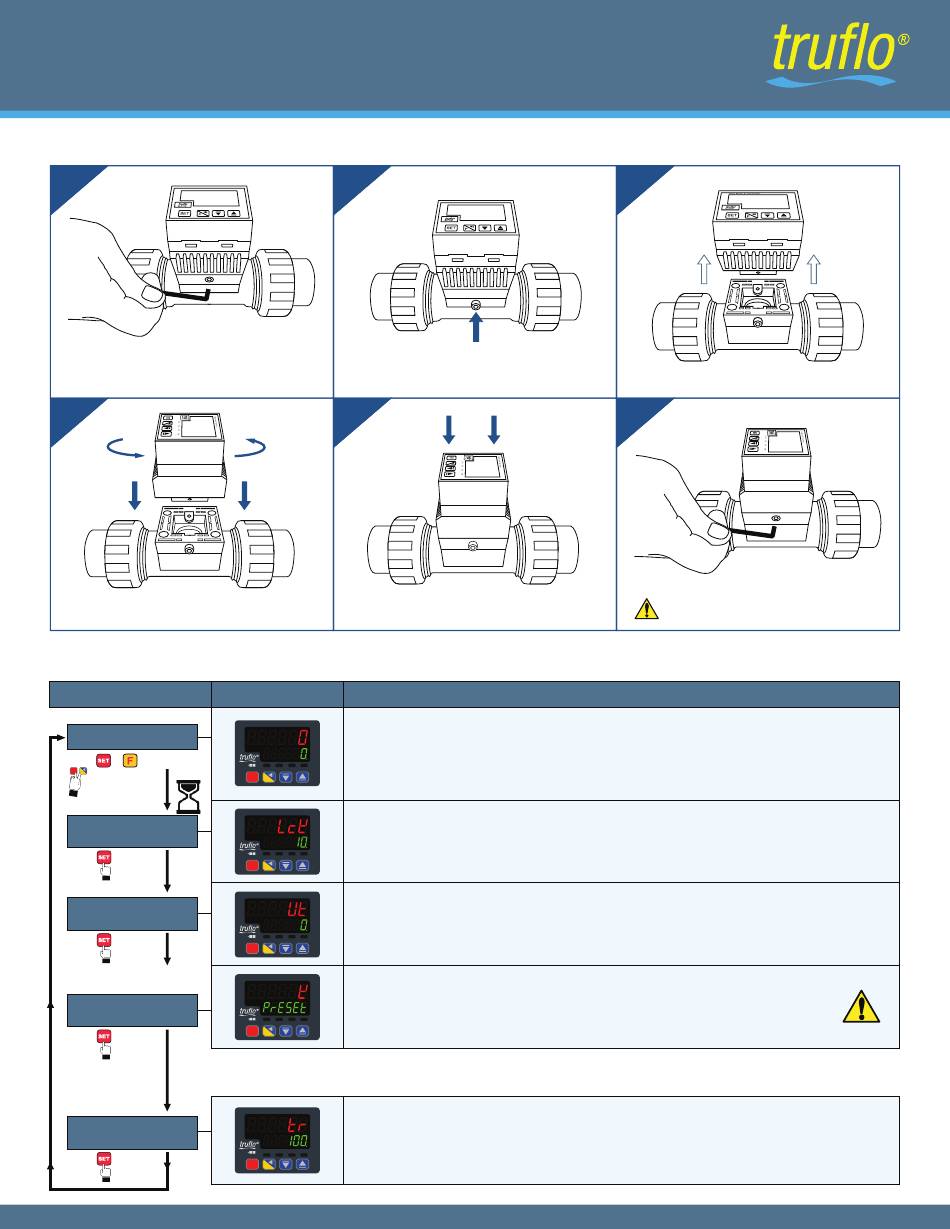

5. Procedure to Rotate Display

1
Flow Meter & Transmitter
OP2
FTM
Using an allen key loosen the 2 screws
located on either side of the display
4
Rotate Display - 90 Degrees

6. Programming Models TKP | TKM

STEPS
Step-1
Home Screen
Press
+
(HOLD)
SET
F
(Together)
3
Step-2
Programming of Lock
Out Feature
Press
Step-3
Programming
Units of Flow
Press
No Programming
Required
Step-4
Coefficient of
Flow Volume
Press
Step-5 For Programming 4-20mA Analog Output
TKM (4-20mA) and TKP with (RS 485 Option) Only
Step-5
Program Range of Transmitter
TKM Model Only
Press
for more information visit www.iconprocon.com
ROTATOR
SERIES MANUAL
2
OP1
GPM
Pull the screws | Do Not Remove
5
DISPLAY
TKP | TKM Series Only
Flow Meter & Transmitter
CV
Power On Flow Meter with DC Power
Display will Show
SV
0 Totalizer (Top RED)
TKP
OP2
FTM
OP1
GPM
LPM
SET
F
0 Flow Rate (Bottom GREEN)
FTM
Programming Lock Out Feature TKP | TKM Series
Flow Meter & Transmitter
CV
Lck = 10 (Unlocked) : Factory Default, IF Lck is Changed from the # 10 the Flow Meter
SV
will be in Lockout Mode.
TKP
OP2
FTM
OP1
GPM
LCK 10 (Default) To Unlock ensure Lck # is set to 10.
SET
LPM
F
FTM
Flow Meter & Transmitter
CV
Programming Units of Flow TKP | TKM Series Only
Program Flow Units 0 | 1 | 2
SV
Ut = 0 : (LPM)
TKP
OP2
FTM
OP1
GPM
SET
LPM
F
FTM
Flow Meter & Transmitter
TKP | TKM Series Only
CV
K-Factor : 0.1 - 999.9 (K-Factor is Factory Preset)
SV
K-Factor Preset (Do Not Change
TKP
OP2
FTM
OP1
GPM
*Divide K Factor BY 3.8 TO CHANGE FROM GPM TO LPM
LPM
SET
F
FTM
TKM (4-20mA) and TKP with (RS 485 Option) Only
Flow Meter & Transmitter
CV
Programming Analog Transmitter Range Output 4-20mA
Range : 0.1 - 999.9 4 mA = 0 20 mA = Entered Number.
SV
TR 100 (Default) 4 mA = 0 GPM 20mA =100 GPM
TKP
OP2
FTM
OP1
GPM
LPM
SET
F
This can be Change to Conform to Customers Application (Ex. Number Changed to 150)
FTM
Flow Meter & Transmitter
OP2
OP1
GPM
FTM
Lower Display
OPERATION
Ut = 1 : (GPM) (Default)
3
OP2
FTM
OP1
GPM
Lift the Display
6
Tighten the Allen screws | Snug Tight
Do Not Over-Tighten
24V DC POWER ONLY
Ut = 2 : {Kiloliter (KL)}
