Installation Positions - Icon Process Controls truflo TK Series Manual

| |
TKS TKP TKM ROTATOR SERIES MANUAL
Multi-Function Paddle Wheel Flow Meter

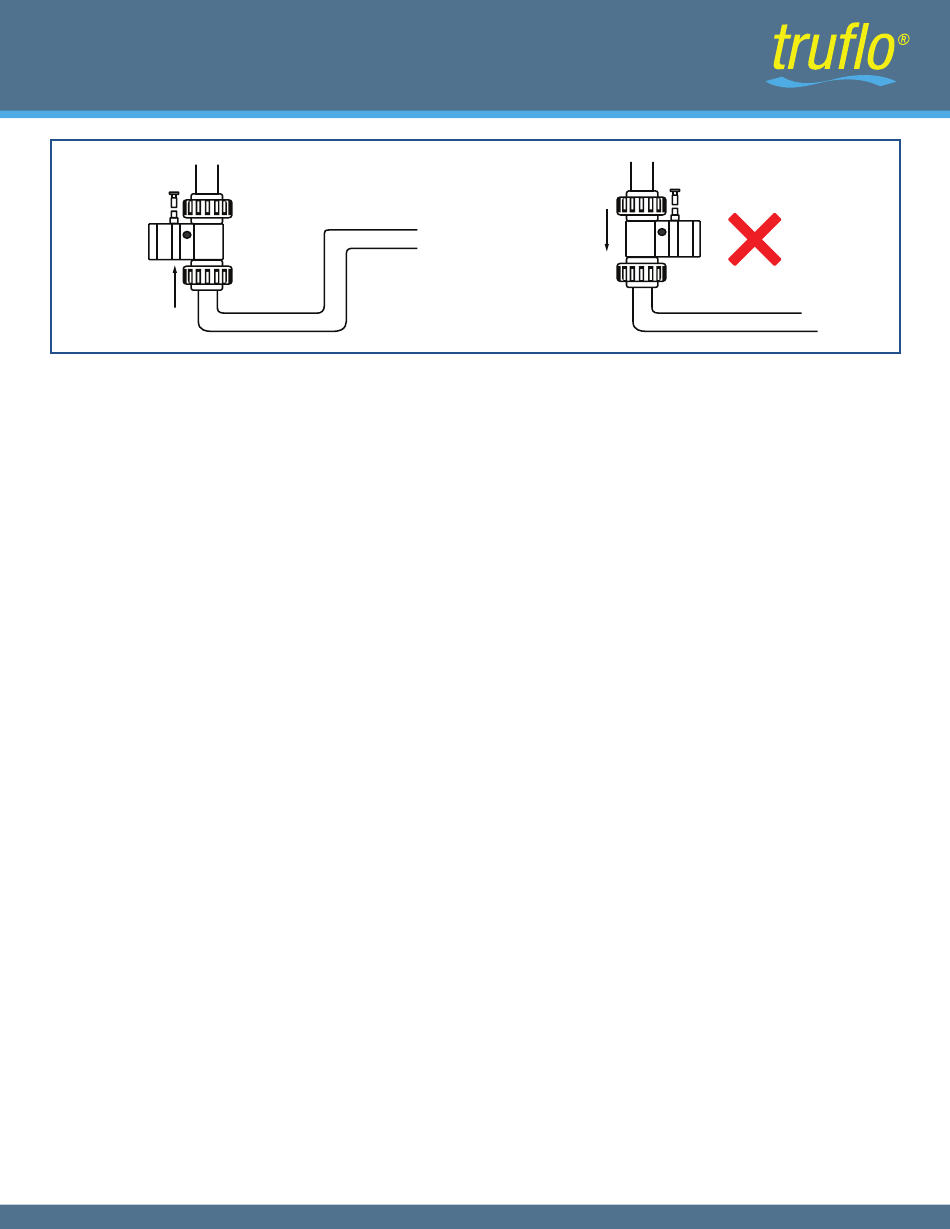

CORRECT
INCORRECT
10x 3x
Please make sure the pipe is filled with the fluid under normal operation.
TK Series can be installed in a horizontal or vertical direction.
Please ensure enough length of straight pipe to avoid turbulence that can effect readings.
Note: Min 10x Pipe Diameters Upstream 3x Pipe Diameters Downstream.
A Plastic Basket Strainer, Bag Filter or Y Strainer Filtering Device upstream to Avoid the Paddle Wheel from being damaged by the solids
or fibers - max 10% Particle Size - Not to Exceed .5mm Cross Section or Length.
Please do not flush the pipe after the Flow Meter is installed with Compressed Air this may damage the ceramic shaft and will Void Warranty
