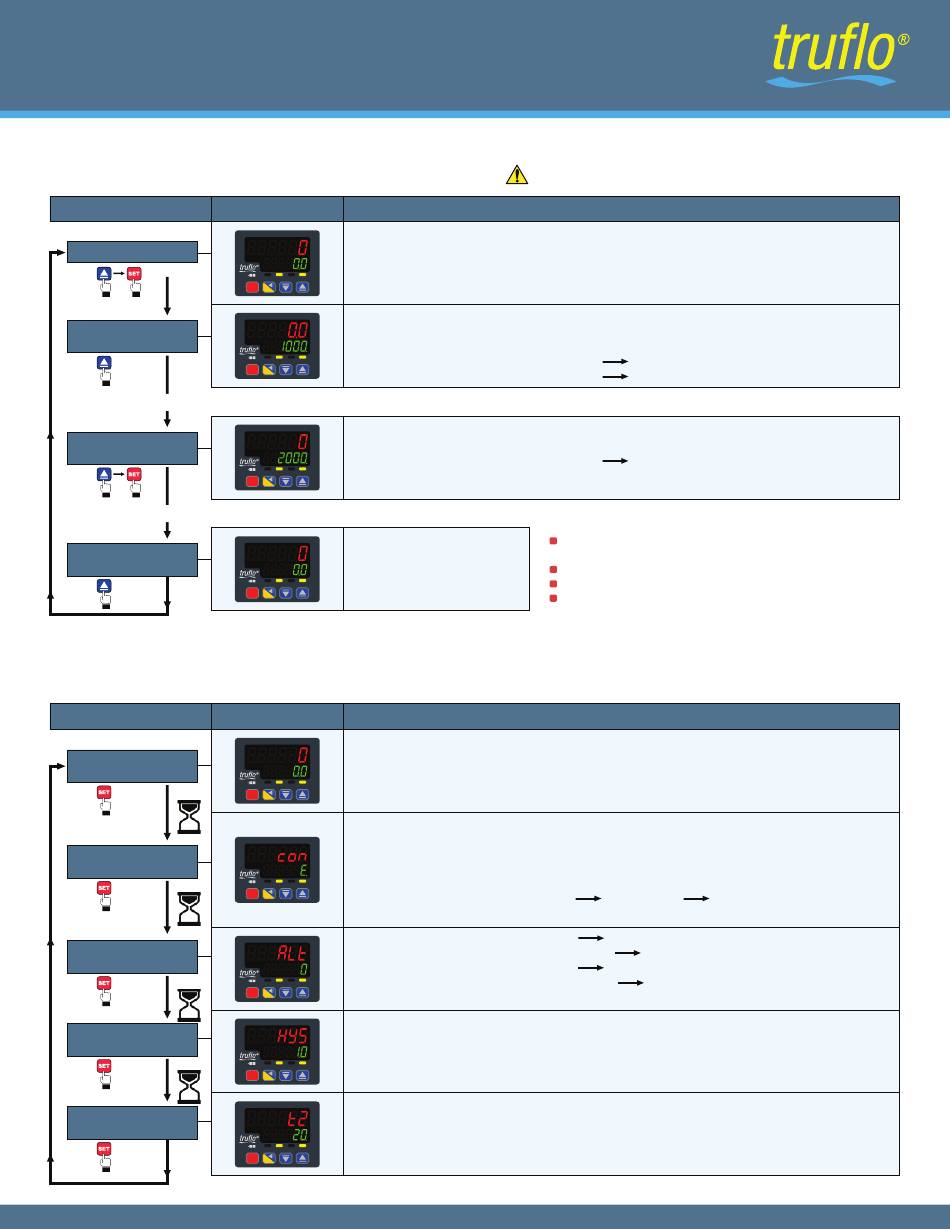

6.1 Programming NPN Pulse Output
|
Models TKP
STEPS
Step-1
Home Screen
Press
Step-2
Programming Flow Rate
Pulse Output
Press To
Change
Value
Press SET to Save and Proceed to the Next Screen
Step-3
Programming Flow Total
Pulse Output
Press
Press SET Button to Save and Proceed to Next Screen
Step-4
Return to Home Screen
Press
6.2 Programming NPN Pulse Control Function
|
Models TKP
STEPS
Step-1
Home Screen
Press
(HOLD)
3
Step-2
Programming OP2 Output
Pulse Control (Totalizer)
(HOLD)
Press
3
Step-3
Programming OP1 Output
Pulse Option (Flow Rate)
Press (HOLD)
3
Step-4
Programming Hysteresis
of Output Flow Rate Pulse
Press (HOLD)
3
Step-5
Programming OP1 Power On Delay
Time For Initial Start UP (Sec)
Press
for more information visit www.iconprocon.com
ROTATOR SERIES MANUAL
TKM Only
DISPLAY
TKP | TKM Series
Flow Meter & Transmitter
CV
Only
SV
TKP OP2 OP1
LPM
SET
F
FTM
1000 Default
Flow Meter & Transmitter
CV
One Pulse Per Gallon
SV
Default
TKP OP2 OP1
(Flow Rate) Pulse
LPM
SET
F
FTM
2000 Factory Default
Flow Meter & Transmitter
CV
One Pulse Per Gallon
Default
SV
TKP OP2 OP1
2000 Default this can be Changed to Desired Value Refer to Next Page Programming OP2 Output for Options for Totalizer
SET LPM
F
FTM Flow Totalizer Pulse (Step #2-Next)
Flow Meter & Transmitter
CV Return to Home Screen
0 Totalizer Default
SV
0.0 Flow Rate Default
TKP OP2 OP1
LPM
SET
F
FTM
TKM Only
DISPLAY
Flow Meter & Transmitter
CV Power On Flow Meter With 10-30 V DC
0 Flow Totalizer
SV
0.0 Flow Rate
TKP OP2 OP1
LPM
SET
F
FTM
Program (NPN) Pulse
Output (OP2) Totalizer
Flow Meter & Transmitter
CV
Range E.n.r.c.
SV
TKP OP2 OP1
LPM
SET
F
FTM
Program Flow Rate
Flow Meter & Transmitter
CV
Pulse (NPN) Output (OP1)
SV
Range: 0 - 3
TKP OP2 OP1
LPM
SET
F
FTM
Program Hysteresis of NPN Output Pulse
Flow Meter & Transmitter
CV
Range 0.1-999.99 (GAL) Hysteresis
HYS ± 1.0 GPM (Default)
SV
Hys - Hysteresis is a buffer around the Programmed Set Point Example
TKP
OP2 OP1
SET LPM (Example) Liquid Caused by Pump Stopping or Valve Closing i.e.-sloshing
F
FTM
Flow Rate
Flow Meter & Transmitter
CV
Program Time Delay for NPN Pulse (OP1) on Initial Start Up
Range : 0-9999 (Secs)
SV
Time Delay of Pulse Output (Flow Rate)
TKP OP2 OP1
LPM
SET T2 = 20 (Secs) (Default) Flow Rate
F
FTM
Steps Only Necessary If NPN Pulse Output is Required
OPERATION
CV Display Reads 0
SV Display Reads 0
0 Totalizer Default
0.0 Flow Rate Default
Program Value of (Flow Rate) Pulse (NPN) Output
CV
Preset Value of Flow Rate
Change to a Value that meets your Flow Rate Pulse Output
SV CV > SV Flow Rate Pulse Output ON
CV < SV Flow Rate Pulse Output OFF
Program Value of Flow Totalizer Pulse (NPN) Output
CV
SV : Preset value of Flow Total
SV CV > SV Flow Rate output ON
Op1 & Op2 = 150mA Max Switching Currency
Current + Consumption is 60mA Max.
CV = Current Value = Current Flow Rate on Display
SV = Selected Value (Programmed Value Customer Entered)
NPN Pulse is a Transistor
OPERATION
Con = n : Manual Reset;
Con = c : time (1=10 Secs) Auto Reset Using Timer
Con = c : time (secs) Auto Reset Using Timer i.e 5 =Pulse On (5 secs)
Con = r : Auto Reset when Total Volume Value = Selct Value (SV)
Con = E : Pulse Output of Unit volume (Default) = One Gal/Pulse
Con = F Paddle Pulse
Con = E (Default)
CV > SV Pulse (NPN) ON
CV < SV - HYS Pulse (NPN) OFF
CV > SV Pulse (NPN) ON
CV > SV + HYS Pulse (NPN) OFF
ALT 0 (Default) Most Common
