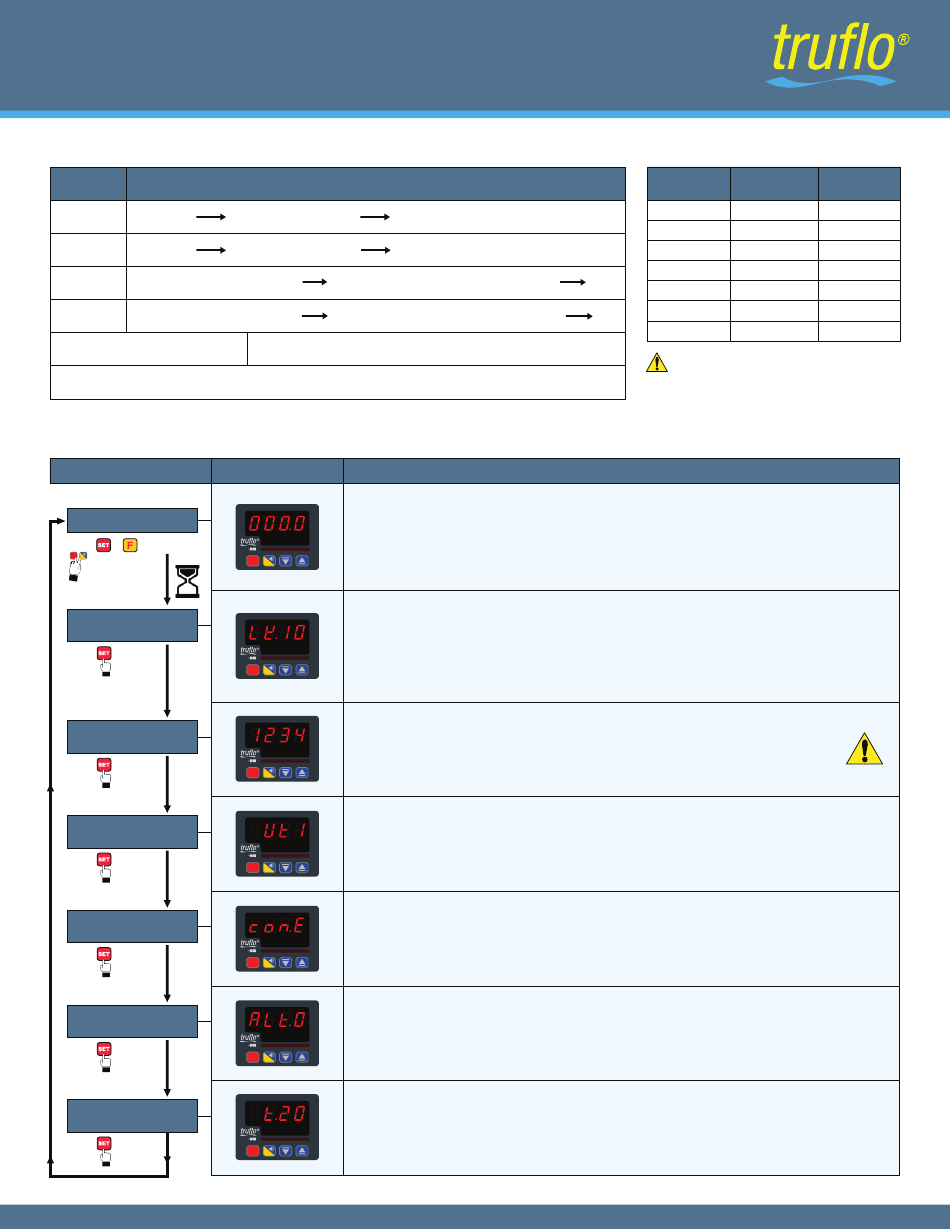

Multi-Function Paddle Wheel Flow Meter
6.3 Mode of NPN Pulse Output TKP | TKM Models
ALT NO.
ALt = 0
CV > SV
ALt = 1
CV < SV
SV + HyS > CV > SV - HyS
ALt = 2
ALt = 3
SV + HyS > CV > SV - HyS
Current Value = Flow Rate
Hys = Hysteresis ACTS Lika Buffer ± Around Pulse Output (Measured in GPM)
6.5 Programming TKS Model Only
STEPS
Step-1
Home Screen
Press
+
(HOLD)
SET
F
(Together)
3
Step-2
Programming
Lock
Output
Press
Step-3
No Programming
Required K Value
Press
Step-4
Programming
Units
of Flow
Press
Step-5
Programming
Communication
Output Type
Press
Step-6
Programming
of
Relay
Set Point
Press
Step-7
Programming
Relay
Time Delay
Press
for more information visit www.iconprocon.com
ROTATOR
SERIES MANUAL
DESCRIPTION
ON: CV < SV - HyS
OFF
ON: CV > SV + HyS
OFF
ON: CV > SV + HyS or CV < SV - HyS
OFF: CV > SV + HyS or CV < SV - HyS
SV = Selected Value = Programmed Value (Customer)
DISPLAY
Flow Meter
GPM
TKS Series Only
Power Up Flow Meter with DC Power
000.0
TKS
Alarm
SET
F
Programming Lock - Out Secure Feature
Flow Meter
Lk = 10 (Unlocked Status) - (Default)
GPM
Changing Number will Lock Flow Meter
LK.10 (Default)
TKS
Alarm
10 = Unlocked
SET
F
If any other Number is entered the Programming will be restricted
Flow Meter
GPM
K-Factor Range : 0.1-999.9 (Depends on Meter Size - Factory Pre- Programmed)
K Value Preset (Do Not Change)
TKS
Alarm
SET
F
Flow Meter
Program Flow Units 0,1,2
GPM
Ut = 0 : (LPM)
Ut = 1 : (GPM) (Default)
TKS
Alarm
Ut = 2 : {Kiloliter (KL)}
SET
F
Flow Meter
Programming NPN Pulse Output
GPM
con.E - Output = 1 Pulse / Gal
con.F - Paddle Pulse Output 5KHZ MAX-Remote Display
TKS
Alarm
con.E (Default)
SET
F
Flow Meter
Programming Relay Setpoint ON - OFF Options
GPM
Select - ALt.0, ALt.1, ALt.2, ALt.3,
ALt.0 (Default)
TKS
Alarm
See Next Page for Relay Alarm Options-
SET
F
Programming Initial Start-Up Relay Time Delay
Flow Meter
GPM
Range : 0-99 sec Delay Time to Power on Alarm Output Relay
t.20 (Default) (20 Seconds)
Initial Start up of Flow Meter or Process (Allows for System
TKS
Alarm
SET
Steady State before Relay Switch becomes Active).
F
6.4 K-Factors for TK
Size
LPM
½"
¾"
1"
1 ½"
OFF
2"
3"
ON
4"
Required when Programming Remote
Display or Controller.
K-Factor Pre Programmed by Factory - No Flow Meter
Programming of a K-Factor is required.
OPERATION
24V DC POWER ONLY
