NSTRUCTION
I
MANUAL
AIR 28
www.aivituvin.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the AIR 28 and is the answer not in the manual?

Questions and answers

Summary of Contents for aivituvin AIR 28

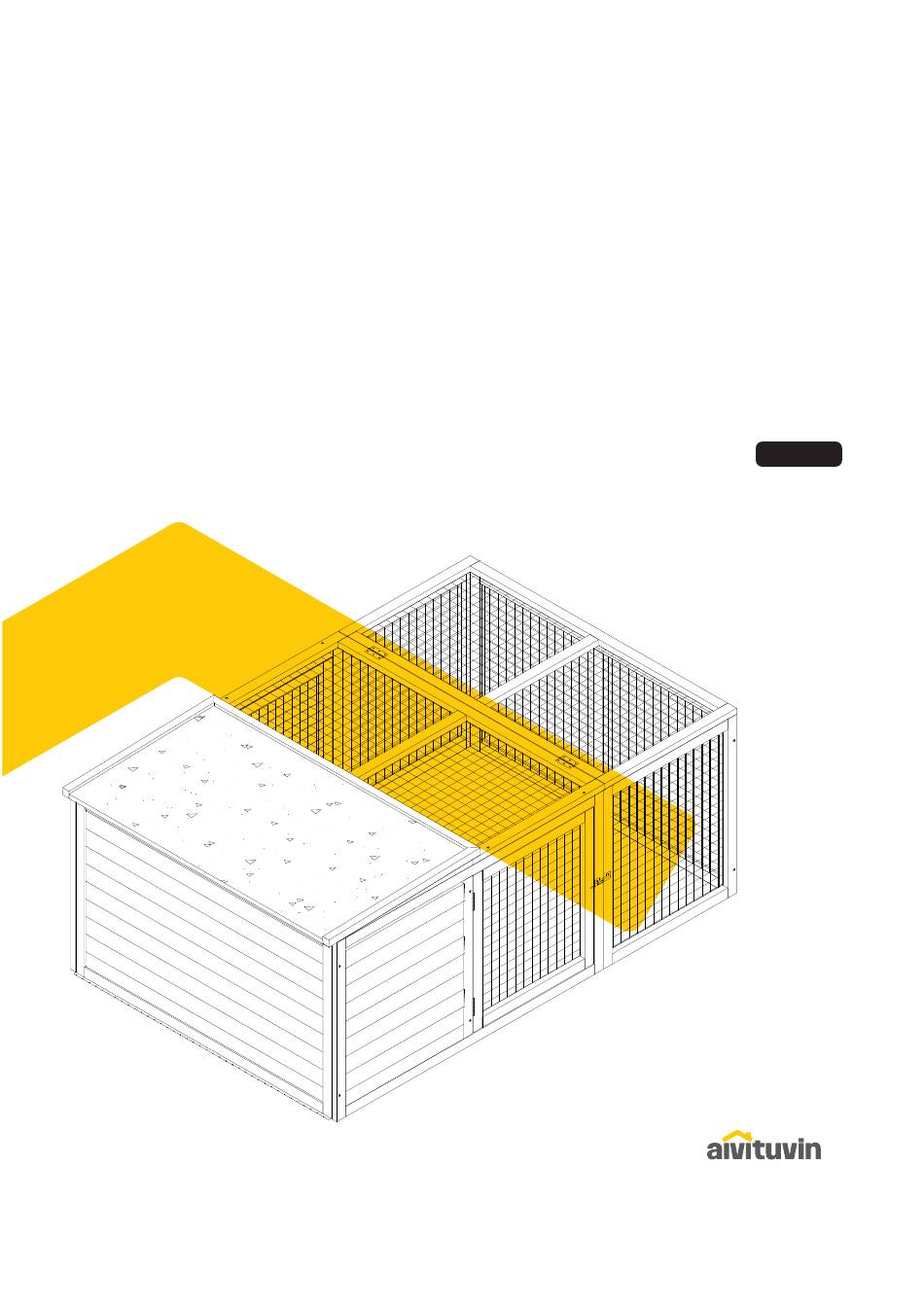

  • Page 1 NSTRUCTION MANUAL AIR 28 www.aivituvin.com...
  • Page 3 NOTICE Please retain these instructions for future Firmly secure all bolts,screws and knobs before use. Reconfirm that all bolts,screws,and knobs are secure every 90 days. Fasten screws loosely during initial assembly. Do not fully tighten screws until the item is completely assembled.
  • Page 4: Tools Required

    TOOLS REQUIRED PHILLIPS DRILL 2PERSON APPROXIMATELY SCREWDRIVER (RECOMMENDED) ASSEMBLY 60MIN. ASSEMBLY HARDWARE M3.5x40 mm SCREW M3.5x60 mm SCREW 4PCS+1 spare 16PCS+1 spare M3.0x16 mm SCREW Latch 21PCS+1 spare SPRING LATCH Roof hinge 2PCS 2PCS M3.0x16 mm SCREW 4PCS+1 spare...
  • Page 5 HARDWARE Hutch...
  • Page 6 PARTS Side panel Front panel Back panel Middle panel Divider Floor 2PCS Front and back panel Side panel of pen Roof of hutch 2PCS...
  • Page 7 PARTS Roof of pen...
  • Page 8: Product Assembly

    PRODUCT ASSEMBLY Attach the front Part A and the back Part B to the side Part C by 4xP2. Attach the middle panel Part D to the front and back by 4xP2.
  • Page 9 PRODUCT ASSEMBLY Put the floor Part F into the hutch. Insert the divider Part E to the hutch.
  • Page 10 PRODUCT ASSEMBLY Attach the roof Part I to the hutch by 9xP3. Attach the roof hinge P6 with 8xP3.
  • Page 11 PRODUCT ASSEMBLY Attachthepanel Part G to the front by 2xP1. Repeat the Part G assembly in the opposite side by 2xP1.
  • Page 12 PRODUCT ASSEMBLY Attach the side pen panel Part H to the sides by 2xP2 each side. Attach the roof Part J to the pen by 4xP2.
  • Page 13 PRODUCT ASSEMBLY Attach the spring latch P5 to the front door by 2xP3. Attach the spring latch P5 to the back door by 2xP3.
  • Page 14 PRODUCT ASSEMBLY Attach the lock P4 to the side by 4xP7.
  • Page 16 WARNING Manufacturer and seller expressly disclaim any and all liability for personal injury,property damage or loss,whether direct,indirect,or incidental,resulting from the incorrect attachment,improper use,inadequate miantenance,or neglect of this...
