Tiso TRACK-AS-YOU-GO PRO Easy Install Manual

Advertisement

Quick Links

This guide is designed to show you the common install procedures, and set up on the
website. For more complex installations please consult the hardware guide.

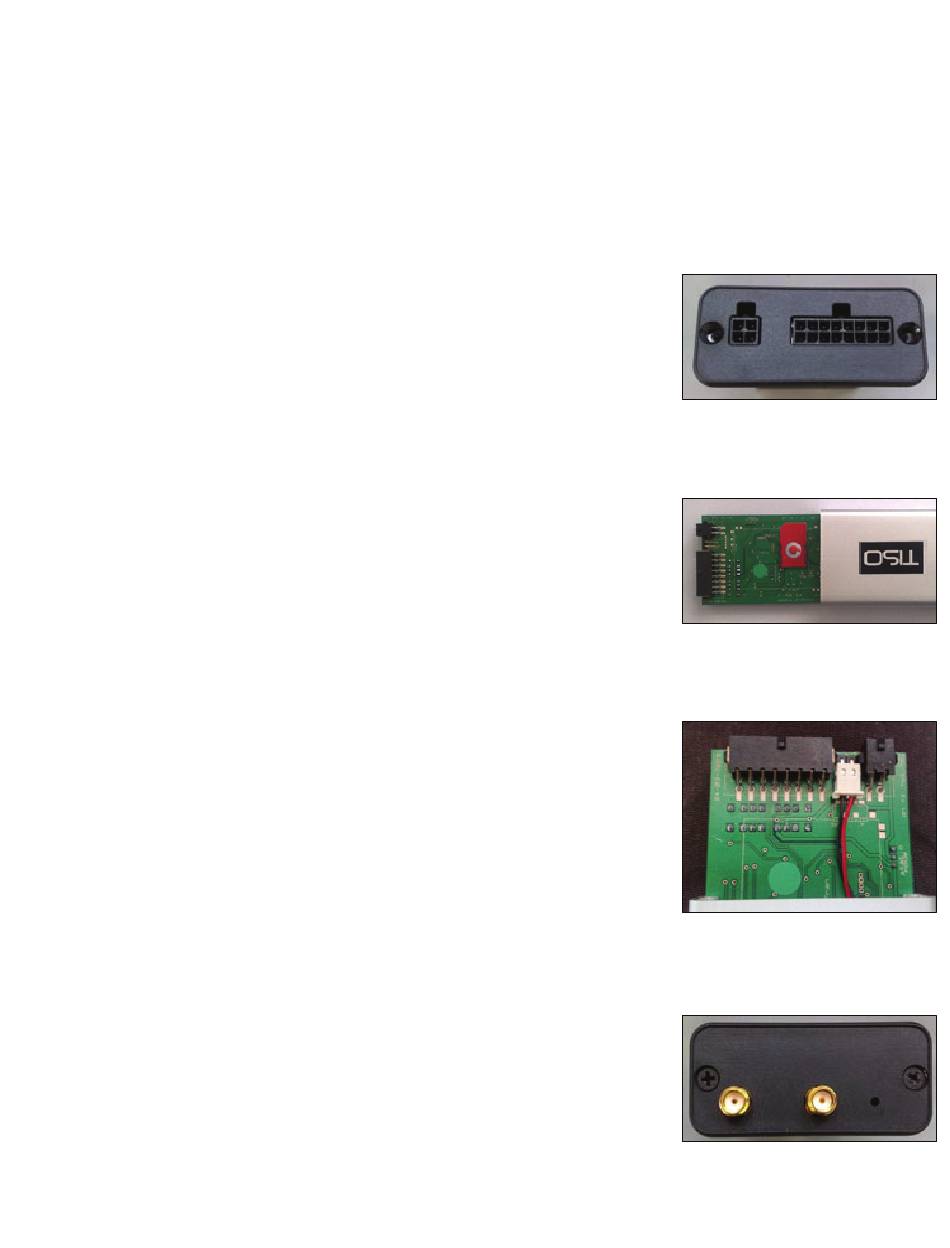

1.
Remove the plastic cap at the connectors end of the tracker unit.
If you push the antennae connectors on the opposite end and the circuit board
should slide out. You don't need to slide it out all of the way, just enough to put
your SIM card in.
2.
nsert your SIM card into slot on the board, so the metal contacts on the SIM
I
are facing down, the angled corner of the SIM should be facing the connectors
end of the unit.
3.
Make sure that the battery connector is on the top of the board, then start to
slide the circuit board back into the case. You then need to connect the battery to
the power pins, which are between the two black connectors at the front of the
board. The red wire should go next to the smaller 4 way connector
Replace the circuit board into the box and secure the plastic end cap with the
additional screws provided in the box
4.
Connect the dual antenna leads to the rear of the unit.
With the device positioned as in the picture opposite, The wire with a silver
connector and
blue
sticker marked
the one with a gold connector and
one in the
middle
of the unit.
TISO
TRACK-AS-YOU-GO PRO
Easy Install Guide (ASDA SIM)
GSM
should go on to the
orange
sticker marked
left
hand side, and
GPS
should go on the

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TRACK-AS-YOU-GO PRO and is the answer not in the manual?

Questions and answers

Summary of Contents for Tiso TRACK-AS-YOU-GO PRO

  • Page 1 TISO TRACK-AS-YOU-GO PRO Easy Install Guide (ASDA SIM) This guide is designed to show you the common install procedures, and set up on the website. For more complex installations please consult the hardware guide. Remove the plastic cap at the connectors end of the tracker unit.
  • Page 2 Wiring Locate the power connector lead. It has four wires, Red, Black, Yellow and Grey. The RED wire should go to the positive (+) and the BLACK wire should go to the Ground (-). Connect up the red and black wires to a power source such as the vehicle’s battery (preferably from the fusebox), or a regulated DC mains adapter (12v, min 300ma), then plug the 4 way connector into the socket on the unit.
  • Page 3 Once you have followed the link, you should be taken back to the Tiso site, and should see the message Activation Complete! Your Account has been successfully activated. You can now log in using the username and “...
  • Page 4 Click on the MAP button on the menu bar. You should now be able to login using the blue LOGIN FORM on the right of the screen. Once you are logged in, you are able to register the unit with the tracking site.
  • Page 5 There are 4 types of alarm messages that will send you a SMS if they trigger. Tiso Alarm – Monitors the Vehicle alarm (pin 6) and switch (magnetic door contact) input (pin 5 /pin 8) Geo Fence Alarm – Triggers an alarm if the unit moves out of a definable radius (default radius is 0) Accelerometer Alarm –...
  • Page 6 If you have connected the unit to monitor the caravan vehicle alarm or wired a magnetic contact on a door or window into the unit, then make sure the Tiso Alarm is activated, then ARM the unit. Send the following commands to the unit by SMS, each in an individual message.
  • Page 7 “Static Awakening timer” in Summer 2009 to work around this network issue.) When in static mode, the unit is unable to respond to commands, but will wake up if the Tiso Alarm (vehicle alarm and magnetic door contact monitoring) or Accelerometer alarms are triggered. The unit will then connect to the internet and automatically update its position to the website or tracking server.
  • Page 8 Fleet Tracking If you want to use the device to constantly monitor vehicles, then the following commands should be sent. STANDBY - Set STANDBY power mode :W,%,4 - Set Accelerometer sensitivity to level 4 (you can select the level, but 3 or 4 are sensible) HISTORY - Set History data mode When the unit is stationary, no data will be sent and it will go into power saving sleep mode.
