Installation
Cabling

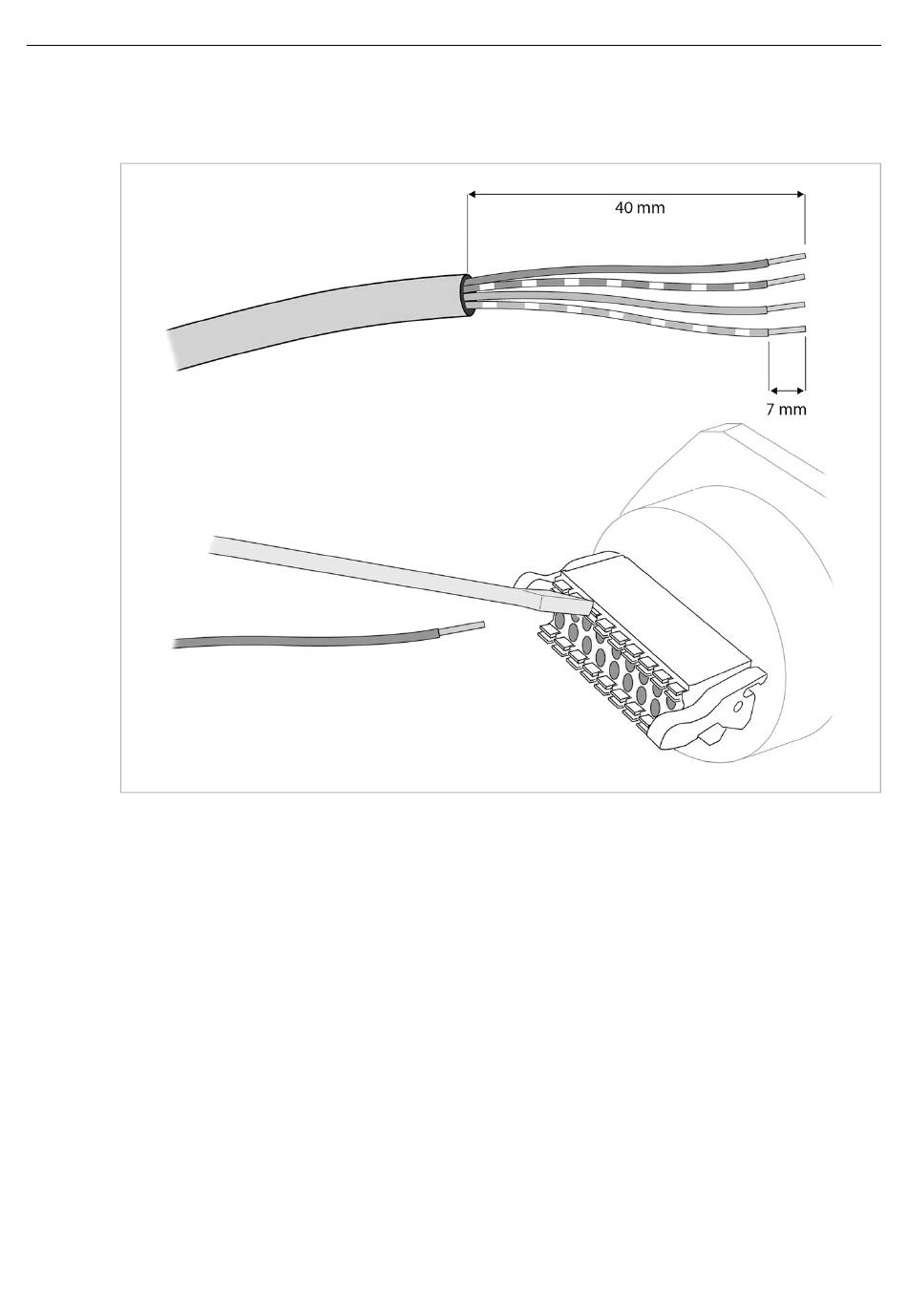

To make an Ethernet connector cable for the Anybus Wireless Bolt:
1.
Cut off one of the connectors on a standard Cat5e or Cat6 Ethernet cable.
2.
Strip off about 40 mm (1½ inch) of the cable jacket and untwist the orange,
orange/white, green and green/white wires. The other wires will not be used.
3.
Strip off about 7 mm (¼ inch) of the isolation on each wire.
4.
Push the pin spring release next to each socket on the connector and insert
the correct wire end according to
Connect the wires from the power supply to the connector in the same way as
the Ethernet wiring. Make sure that polarity is not reversed.
Anybus
®
Wireless Bolt
™
Installation Guide
Connector Pinning, p.
7 (16)
6.
SCM-1202-006/SP2139 1.7
