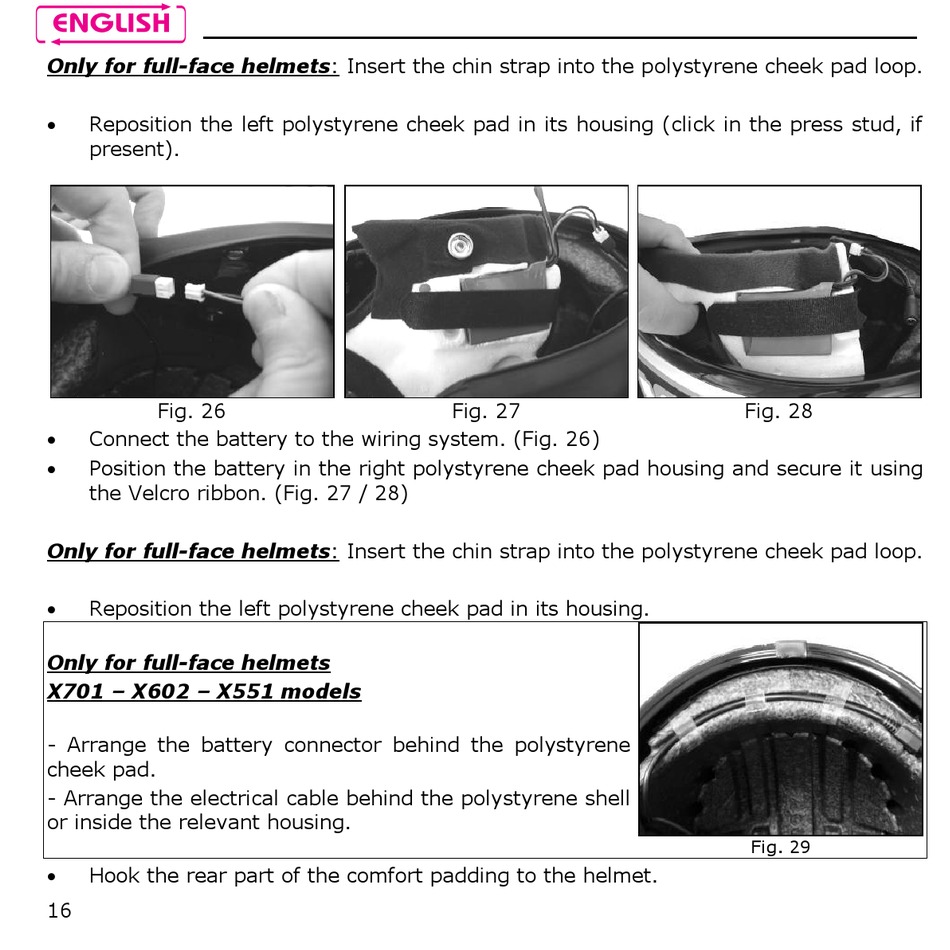

Only for full-face helmets: Insert the chin strap into the polystyrene cheek pad loop.
Reposition the left polystyrene cheek pad in its housing (click in the press stud, if

present).

Fig. 26

Connect the battery to the wiring system. (Fig. 26)

Position the battery in the right polystyrene cheek pad housing and secure it using

the Velcro ribbon. (Fig. 27 / 28)
Only for full-face helmets: Insert the chin strap into the polystyrene cheek pad loop.
Reposition the left polystyrene cheek pad in its housing.

Only for full-face helmets
X701 – X602 – X551 models
- Arrange the battery connector behind the polystyrene
cheek pad.
- Arrange the electrical cable behind the polystyrene shell
or inside the relevant housing.
Hook the rear part of the comfort padding to the helmet.

16
