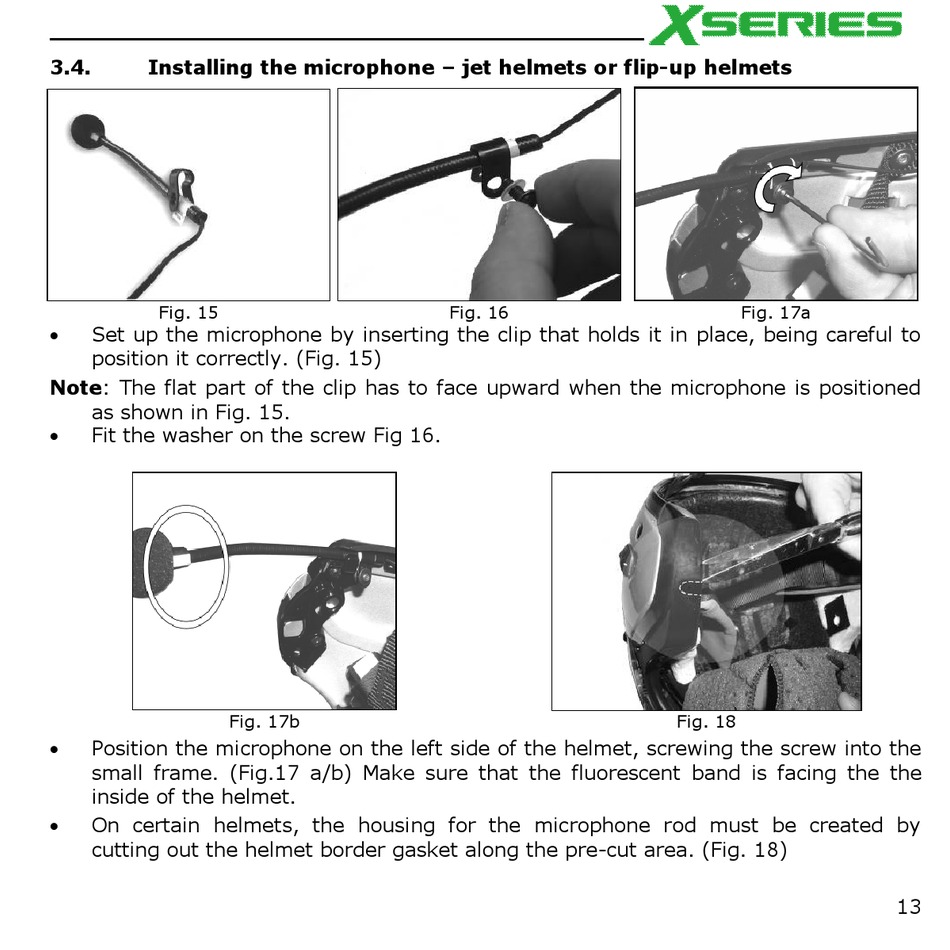

3.4. Installing the microphone – jet helmets or flip-up helmets
Fig. 15
Set up the microphone by inserting the clip that holds it in place, being careful to

position it correctly. (Fig. 15)
Note: The flat part of the clip has to face upward when the microphone is positioned
as shown in Fig. 15.
Fit the washer on the screw Fig 16.

Fig. 17b
Position the microphone on the left side of the helmet, screwing the screw into the

small frame. (Fig.17 a/b) Make sure that the fluorescent band is facing the the
inside of the helmet.
On certain helmets, the housing for the microphone rod must be created by

cutting out the helmet border gasket along the pre-cut area. (Fig. 18)
Fig. 16 Fig. 17a
Fig. 18
13
