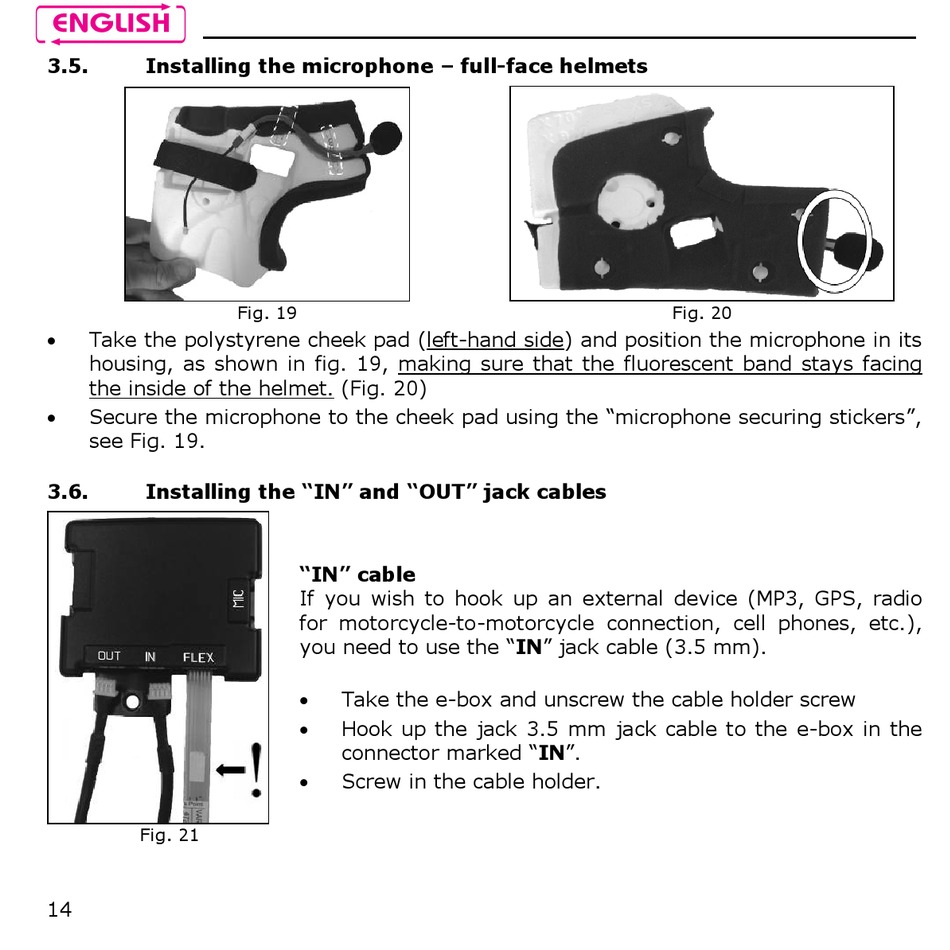

3.5. Installing the microphone – full-face helmets
Take the polystyrene cheek pad (left-hand side) and position the microphone in its

housing, as shown in fig. 19, making sure that the fluorescent band stays facing
the inside of the helmet. (Fig. 20)
Secure the microphone to the cheek pad using the "microphone securing stickers",

see Fig. 19.
3.6.

Installing the "IN" and "OUT" jack cables

Fig. 21
14
Fig. 19
"IN" cable
If you wish to hook up an external device (MP3, GPS, radio
for motorcycle-to-motorcycle connection, cell phones, etc.),
you need to use the "IN" jack cable (3.5 mm).

Take the e-box and unscrew the cable holder screw


Hook up the jack 3.5 mm jack cable to the e-box in the

connector marked "IN".

Screw in the cable holder.


Fig. 20
