In order to use the Intercom wire, the "OUT" 2. 5 mm jack cable must be installed.
Take the e-box and unscrew the cable holder screw.

Hook up the jack 2.5 mm jack cable to the e-box in the connector marked "OUT".

Screw in the cable holder.

3.7.

Installing the system

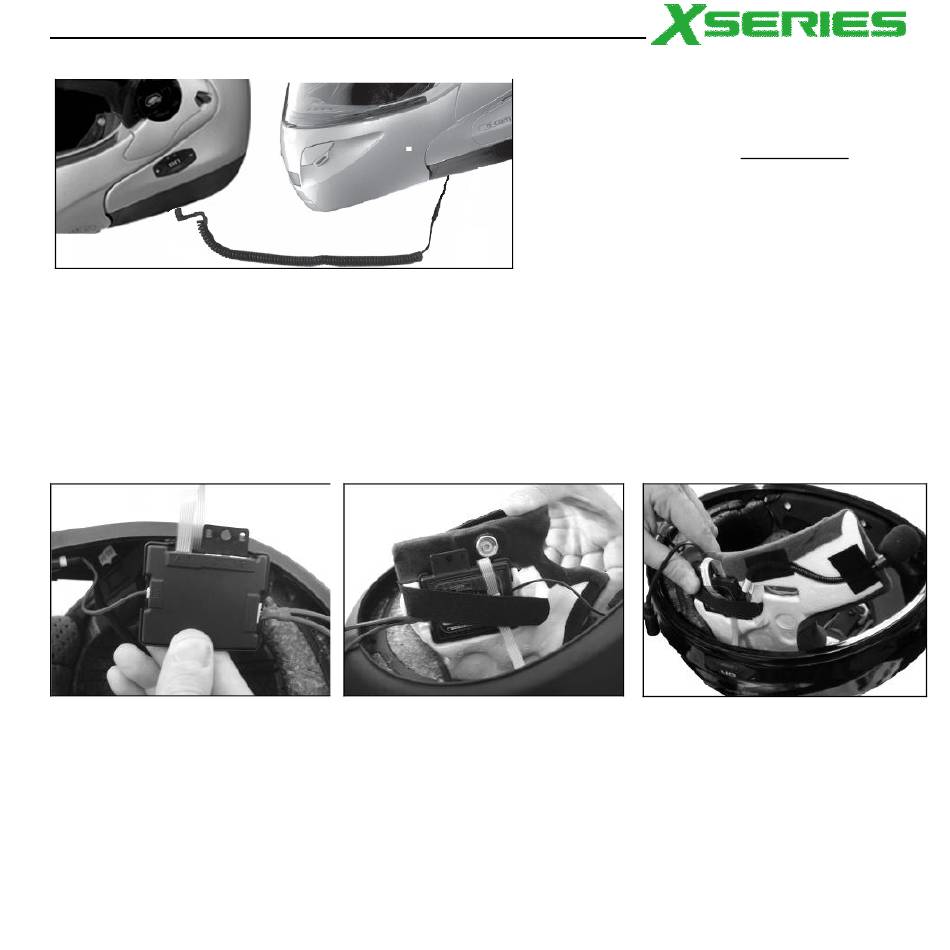

Fig. 23
Take the e-box. Hook up the wiring system, the microphone and the "flex" cable of

the adhesive keyboard (already secured to the shell). (Fig. 23)
Position the e-box in the left polystyrene cheek pad housing and secure it using

the Velcro ribbon.
Note: Position the flex keyboard underneath the hooking tab. (Fig. 24 / 25)
Fig. 22
"OUT" cable
If you wish to hook up a passenger in
interphone
passenger helmet being equipped with
an N-Com system, you need to use
the Intercom
between
connection diagram in Fig. 22).
Fig. 24
mode via cable,
wire (sold
the two helmets
Fig. 25
the
cable)
(see
15
