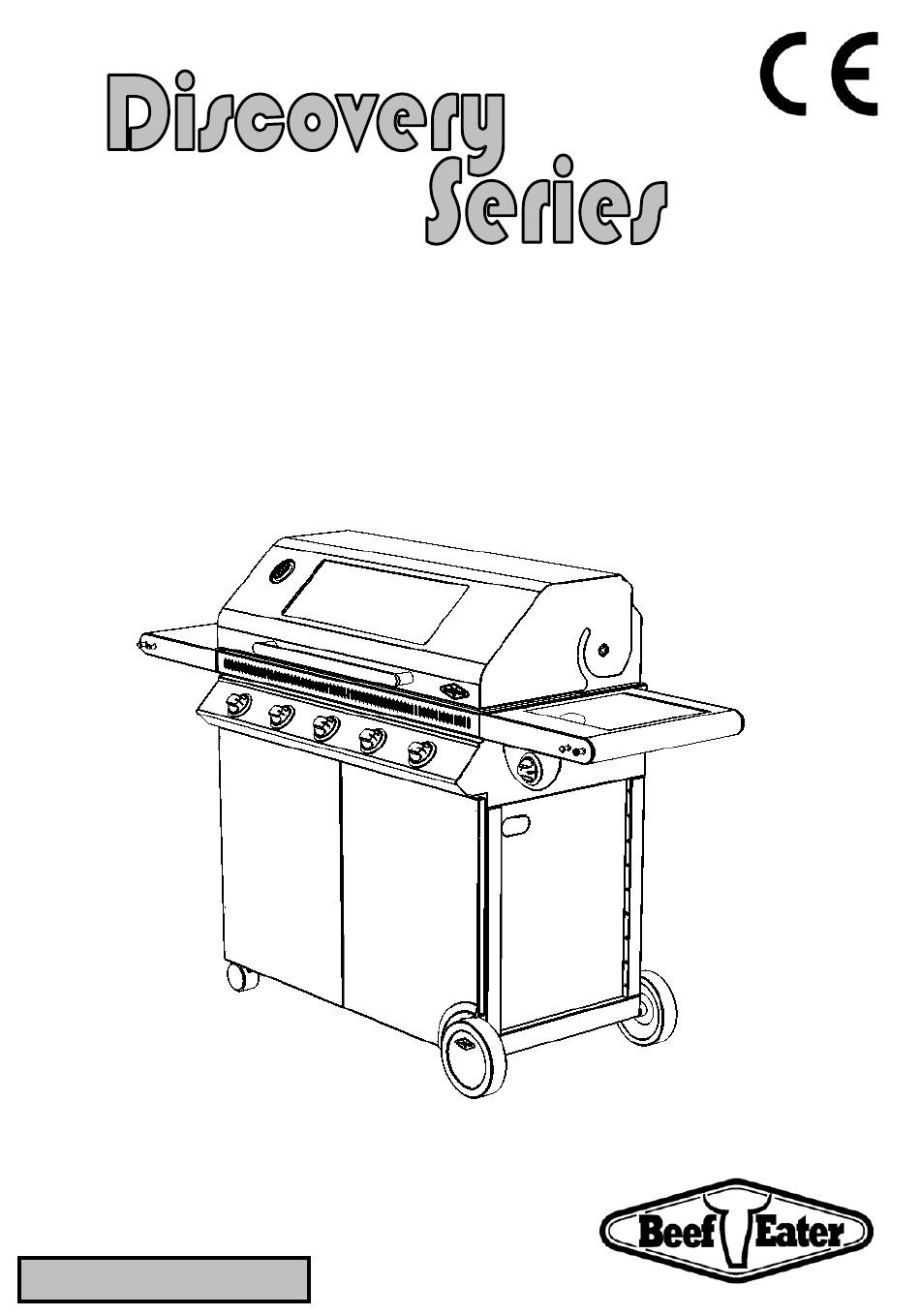

- Page 1 1100 1100s, 1100e, 1100eP, 1100 Assembly and Operating Instructions Electrolux Home Products Pty LtdSimpson Avenue, Dudley Park, SA, 5008, Australia FOR OUTDOORS USE ONLY...
-
Page 2: Safety Warning
If correct operation cannot be achieved, disconnect barbecue from gas supply, and contact your nearest BeefEater dealer. • Please only use BeefEater supplied hose(s) to connect this appliance. Natural Gas conversion kits are available from your nearest BeefEater dealer. Leave these instructions with customer... - Page 3 DO NOT • Lean over barbecue when lighting. • Spanner tighten all gas fittings as per • Leave cooking food unattended. instructions. • Delay lighting burners after turning gas on. • Check all gas hoses and line connections for • Spray or store aerosols in vicinity of barbecue damage, cuts or cracks each time the appliance is whilst in operation.
- Page 4 5. Leak-test the connection with a soapy water solution. (See Gas Leak Testing Procedure). Hose and regulator replacement must be a genuine part specified for this appliance and is obtainable from your nearest BeefEater stockist. Gas Leak Test Procedure Use the following procedure to check for gas leaks.
-
Page 5: Know Your Bbq
*** May not be included with all models Electrolux Home Products Pty Ltd Simpson Avenue, Dudley Park, SA, NOTE: 5008, Australia BeefEater products are constantly being Phone: 61 2 9724 8888 developed, therefore design, Facsimile: 61 2 9724 8899 specifications, materials and product E-mail: mail@beefeaterbbq.com... -
Page 6: Using Your Barbecue
The hose and regulator supplied with this barbecue must be used at all times whilst operating this barbecue. Inspect the hose and regulator regularly for cracks or any sign of damage. If there is excessive abrasion or wear, replace only with a genuine BeefEater regulator. •... - Page 7 Grease Collecting Pan The grease Collecting Pan is located on 2 brackets below the BBQ’s bottom panel, on the left-hand-side. Make sure the pan is always in its place when operating the barbecue, to avoid fat dripping directly into the trolley. Make sure the grease pan is emptied and cleaned regularly. Ensure the grease is cleaned off the bottom of the Barbecue before each use.
-
Page 8: Technical Information
After Use It is a good idea to leave the barbecue on for about 10 minutes after you have finished cooking. This helps to burn away any excess food residues and oil, and makes cleaning easier. 1. Be sure to turn off all control knobs and the gas supply. 2. -
Page 9: Locating Your Barbecue
Locating Your Barbecue: Most importantly, this is an outdoor appliance. Ensure your barbecue is positioned safely away from anything that can catch fire. Outdoors Use Only: Under no circumstances is this barbecue to be used indoors. This includes garages or any other enclosed area. Clearance from Combustibles: Ensure your barbecue remains at a distance of at least 45 cm (18”) from any combustible material such as wood, gyprock, paper and plants. -
Page 10: Gas Connection
Burner. of Barbecue If your distributor does not include a regulator, BeefEater will supply a Nut-and-Tail fitting for your use. Tighten the fitting over manifold inlet ’A’* using a 19mm spanner, and then slip the hose of your regulator over the nozzle and tighten with a hose-clamp: Ensure inlet ‘B’... -
Page 11: Warranty
Warranty: Should any part fail due to defective workmanship or faulty materials within the specified period from the date of purchase, BeefEater or its distributor will repair or, (at distributors option), replace the defective part free of charge. LP / Propane Gas Cylinder The cylinder manufacturer is responsible for the materials, workmanship and performance of the gas cylinder. -
Page 12: Troubleshooting
Built-In BBQs Build-In brackets are required to be attached to BBQ before it can be positioned in brickwork. Installation must be done by a qualified person! Dimension Width [mm] 1035 Height (Min) 280 (11”) Depth 540 (22”) (not including 30mm clearance at rear) Clearance at rear (Min) 30 (1¼“) Minimum clearance to combustible... -
Page 13: Cabinet Trolley
1100 Cabinet trolley Assembly Instructions To suit models: 1100s 1100e 1100eP 1100 Wit h 2, 3, 4 and 5 Burners FOR OUTDOORS USE ONLY... - Page 14 Content: 1 x Wheel Axel 1 x Back Panel 2 x Door Hinge Bracket 1 x Top Brace 2 x Castor 2 x Wheel with Cap 1 x Base Panel 1 x Door 1 x Door 1 x Side Shelf 1 x Side Burner description...
- Page 15 Series Assembly Procedure Step 1 2 x ‘A’ Turn the Base Panel upside-down, insert the Wheel Axel through the 2 holes, and place a wheel on each side. Secure with a circlip on outside of wheel. Place Cap. insert each castor to its place in the other 2 corners Step 2 19 x ‘B’, 19 x ‘C’, 2 x ‘F’...
- Page 16 Step 3 4 x ‘D’ Attach the Hinge Brackets to front of side panels. Note: the bracket should be on the inside, with only the small bends protruding out. Step 4 4 x ‘B’, 8 x ‘C’, 4 x ‘E’ Attach the Top Brace.
- Page 17 Step 5 2 x ‘G’ Place the doors, and insert the hinge rod through the hinge brackets and the door brackets. Ensure correct engagement in bottom brackets as well. Step 6 6 x ‘B’, 6 x ‘C’, 2 x ‘E’ Remove all loose parts from inside the Barbecue.
- Page 18 Step 7 Adjust the Top Brace (from step 4) to right position, and tighten 4 screws Step 8 8 x ‘H’, 8 x ‘I’ Fit the shelf and Side Burner (or 2 shelves) to the side of the Barbecue. Note: screws to go from the inside of barbecue body out. The side shelf of side burner has been pre-assemblied in the factory, and consumers only need to connect the gas pipe.
-
Page 19: For Your Records
Warranty See Warranty terms and condition in BBQ Instructions. All parts and workmanship of this trolley are covered for a period of 1 year from date of purchase. Technical Information Note: Do not modify this appliance or any of its parts. Any deviation from factory settings could result in a safety hazard. -
Page 20: Spare Parts
Spare Parts: NOTE: BeefEater products are constantly being developed, therefore design, specifications, materials and product configurations may change without notice. Electrolux Home Products Pty Ltd Simpson Avenue, Dudley Park, SA, 5008, Australia 1100_Trol_Inst_EU_V0... - Page 21 Discovery 1100s, Discovery 1100eP, Discovery 1100e, Discovery 1100 These instructions detail the procedure required to convert the BeefEater Discovery 900e, 1100e and 1100s barbecues and optional side burner from LPG/Propane to Natural Gas. This work must be carried out by a qualified gas fitter or service agent.
- Page 22 NOTE: The correct spanner to be used with these Injectors is 9/32” or 3BA. Connecting to Natural gas supply must be performed only by your natural gas provider or service company. NOTE: To convert the BeefEater barbecue from Natural Gas to LPG, all of the above Warning: steps must be reversed including the replacement of the Data Label.
