BeefEater 1100 Instructions

NATURAL GAS CONVERSION INSTRUCTIONS
DISCOVERY BBQ NATURAL
GAS CONVERSION KIT
(1100, 1100E & 1100S)
Kit Model 95184 includes:
5 x 1.90mm main burner injectors
1 x 1.70mm side burner injector
1 x Natural Gas Label (020404)
1 x Hose and Regulator assembly (Part No. 95162)
1 x Instructions 95184k

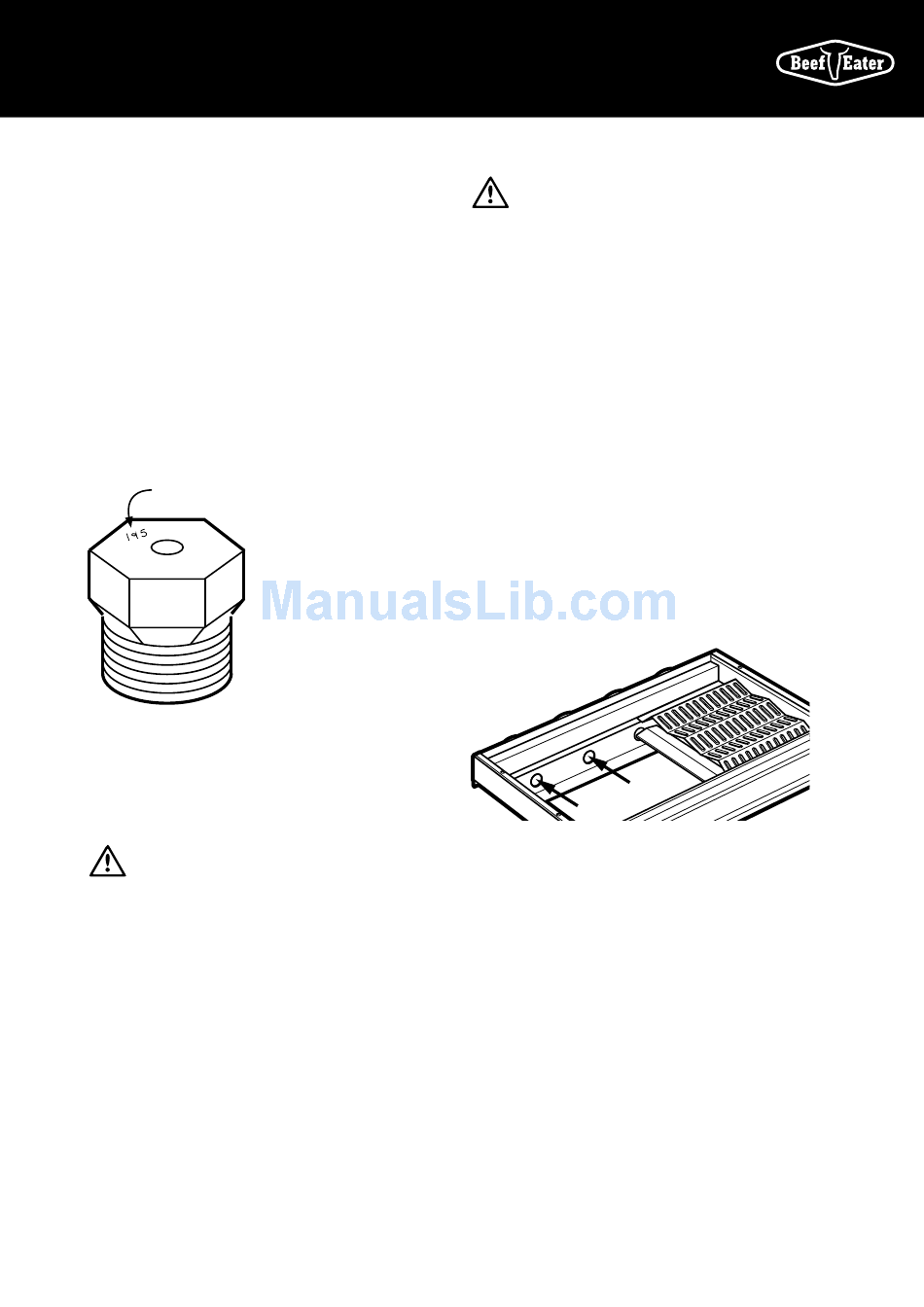

Look here for
identification reference
Please read the user manual carefully and store in a handy
place for later reference.
Important Safety Instructions
WARNING WARNING
All service to the appliance must be undertaken by a
qualified gas service agent.
Do not smoke or use a naked flame within the vicinity of the
appliance or gas line when performing gas conversion or
service of any kind.
Always carry out a gas leak test after any work has been
carried out on the appliance.
If your barbecue is fitted with an optional side burner, gas
conversion must be carried out at the same time.
Always use the correct size socket spanner / wrench to
remove or replace the gas injectors. Do not use pliers or
any other type of tool that may squeeze the head of the gas
injector. This may cause the gas orifice to change shape
thereby adversely affecting the gas flow to each burner.
Gas injectors are made of brass and have a fine thread which
must be treated with care when being handled. Remove and
replace injectors with care.
WARNING
WARNING
The manufacturer accepts no responsibility for any
consequential damage, malfunction or loss due to incorrect
conversion of installation.
FAILURE TO FOLLOW THESE INSTRUCTIONS WILL VOID
THE APPLIANCE WARRANTY.
Remove and Replace Gas Injectors (Jets)
1. Turn off the gas supply valve on the gas cylinder. Ensure
that all gas controls on the BBQ are in the OFF position.
2. Disconnect the hose and regulator from the gas cylinder
and disconnect the gas hose from the barbecue gas inlet
using a 19mm open-ended spanner / wrench.
3. Remove hood and all cooking plates, grills, vaporisers
and heat reflectors (if fitted) from the BBQ.
4. Remove the 'R' shaped locking clips that hold each
burner in place and remove all burners from the BBQ.
Remove the side burner trivet and burner (2 screws
from underneath burner).
5. The gas injectors (Jets) for each burner are located
within deep pockets behind the front firewall of the BBQ.
See below illustration.
6. Remove each gas injector from the end of each valve
body, turning gently in a counter clockwise direction.
Be careful not to block the orifice at the end of the valve
where the gas injector is fitted and do not remove any of
the thread sealing compound from the orifice where the
injector is located.
7. Check the identification mark stamped on the Hex Head
of the injector to confirm that it is the correct size – Main
Burners: 1.90mm. Side burner 1.70mm. Screw correct
Jets back into place.
8. When fitting the NG gas injectors to the end of the valve
body be sure to seat the injector correctly on the thread
before turning it in a clockwise direction until it is seated
firmly in place. Do not over-tighten.
