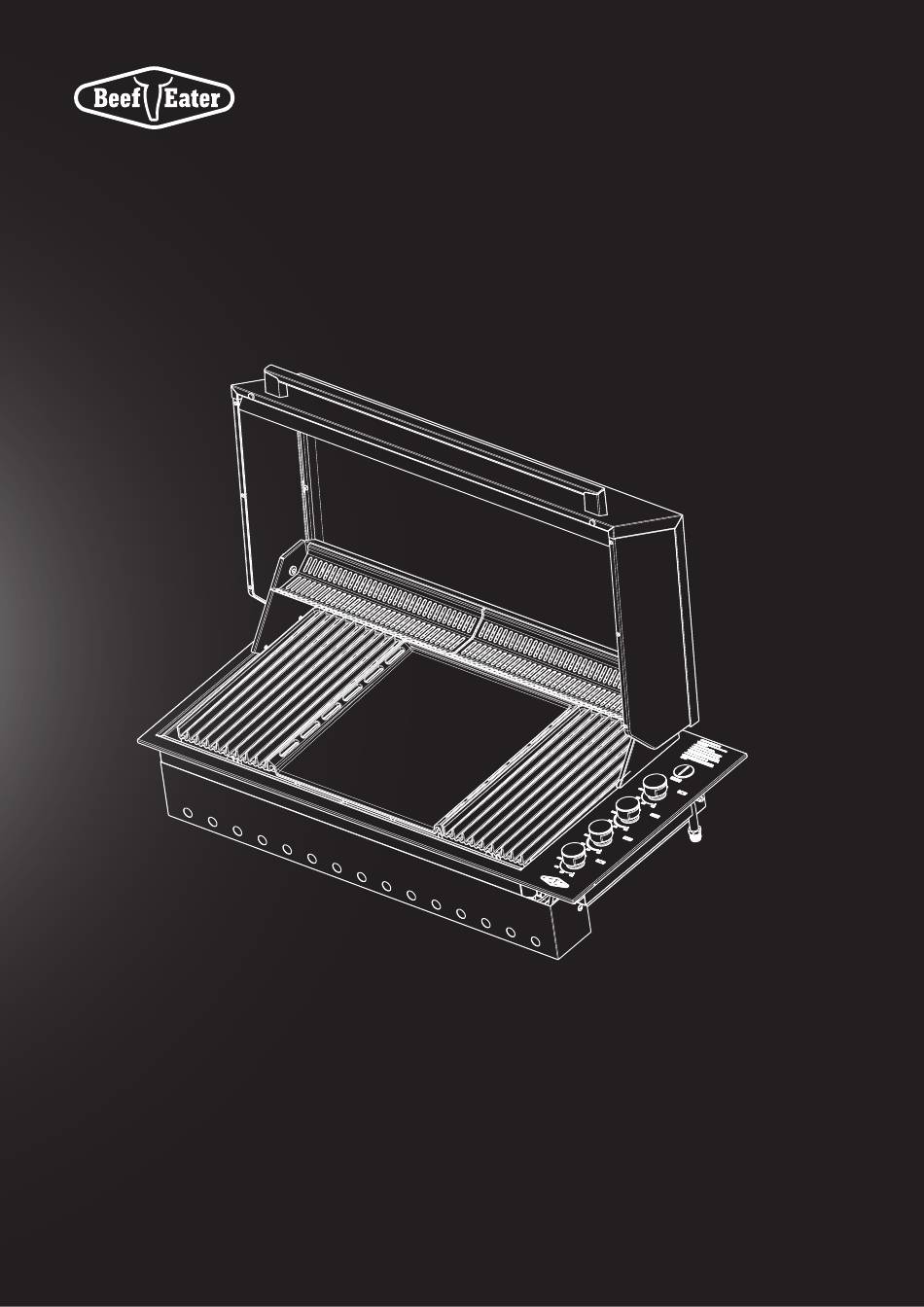

- Page 1 INTEGRATED Assembly and Operating Instructions SERIES BSH158SA, BSL158SA AUSTRALIA / NEW ZEALAND...
- Page 2 Products must be used, installed and operated in accordance with this manual. You may not be able to claim on the BeefEater manufacturer’s warranty in the event that your product fault is due to failure to adhere this manual.

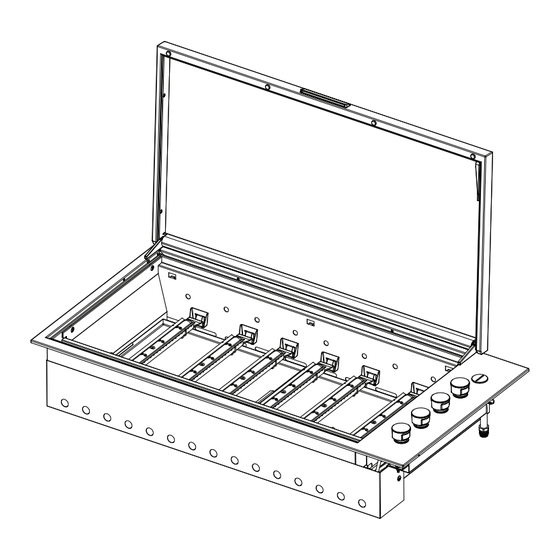

- Page 3 PARTS PRODUCT DESCRIPTION Integrated barbecue with slimline lid BSL158SA DESCRIPTION DESCRIPTION Rear heat Natural gas shield regulator and installation Pivotting leg pipe Slimline lid Battery cover Gas connection point Flame Universal Burner controls tamers LPG hose and regulator Cast Iron Grill...
- Page 4 GAS SPECIFICATIONS LEAK TEST PROCEDURE Natural gas installation Leak test procedure NATURAL UNIVERSAL GAS TYPE PROPANE This barbecue is set up for Natural Gas and is labelled • Ensure all gas valves are in the ‘OFF’ position. Maximum gas 67.2 MJ/h 64.0 MJ/h 71.0 MJ/h accordingly.
- Page 5 UNIVERSAL LPG AND PROPANE INSTALLATION UNIVERSAL LPG AND PROPANE INSTALLATION NOTE: Conversion of this unit to Universal LPG or Propane This barbecue is set up for Natural Gas and is labelled Gas bottle safety information must be carried out by a qualified licensed person and a accordingly.
- Page 6 UNIVERSAL LPG AND INSTALLATION WARNINGS INSTALLATION INSTRUCTIONS PROPANE INSTALLATION Installation warnings WARNING WARNING Choosing a location The mounting enclosure • This appliance may be installed outdoors, under cover, or in an outdoor kitchen or outdoor living area. When planning the location and preparing the installation •...
- Page 7 DIMENSIONS DIMENSIONS Benchtop must be non- This side wall can be WARNING! combustible material combustible material This appliance requires venting. An open area as indicated must be allowed for. Where a suitable grille is fitted, the This side openings of any grille must allow a minimum of 700mm x wall can be 25mm open area and not impede venting.
- Page 8 GAS REQUIREMENTS ASSEMBLING THE BARBECUE HOTPLATE CONFIGURATION Natural Gas requirements Remove all components from box. Install hotplates and grills as shown, ensuring that the flame tamers are located under the grills. Attach heat shield to rear of unit by inserting the •...
- Page 9 Preheating To ensure that the user remembers to turn off the gas before The BeefEater Integrated barbecue has been constructed from select grade stainless steel which, if not cared for, may closing the lid, a pivoting safety leg has been fitted.
- Page 10 In these conditions BeefEater strongly recommends cleaning and drying your barbecue after every use and covering it when not in use to minimise exposure to the elements. Surface corrosion can be removed by using a specialized stainless steel cleaner.
- Page 11 * Replace battery. weatherproof cover Manually light the (for model BSH158SA and BSL158SA) barbecue. + Standard inclusion with the product but can also be purchased Ignition Gently clean and dry electrode wet electrode ensuring separately via the Electrolux Customer Service Centre.
- Page 12 NOTES Warranty FOR SALES IN AUSTRALIA AND NEW ZEALAND APPLIANCE: BEEFEATER SIGNATURE BARBECUE 7. You may not make a claim under this warranty unless the defect claimed is This document sets out the terms and conditions of the product due to faulty or defective parts or workmanship. Electrolux is not liable in the warranties for Electrolux Appliances.
- Page 13 For more information on all Beefeater products, or for dimension and installation information, call into your retailer, phone or email our customer care team or visit our website: AUSTRALIA phone: 1300 307 939 email: customercare@electrolux.com.au web: beefeaterbbq.com NEW ZEALAND phone: 0800 436 245 email: customercare@electrolux.co.nz...
