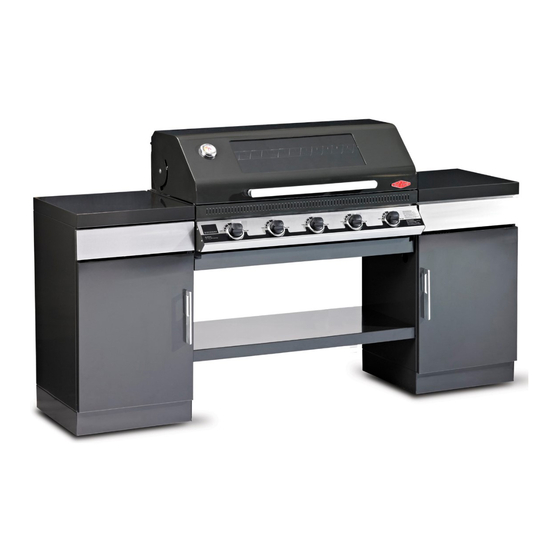

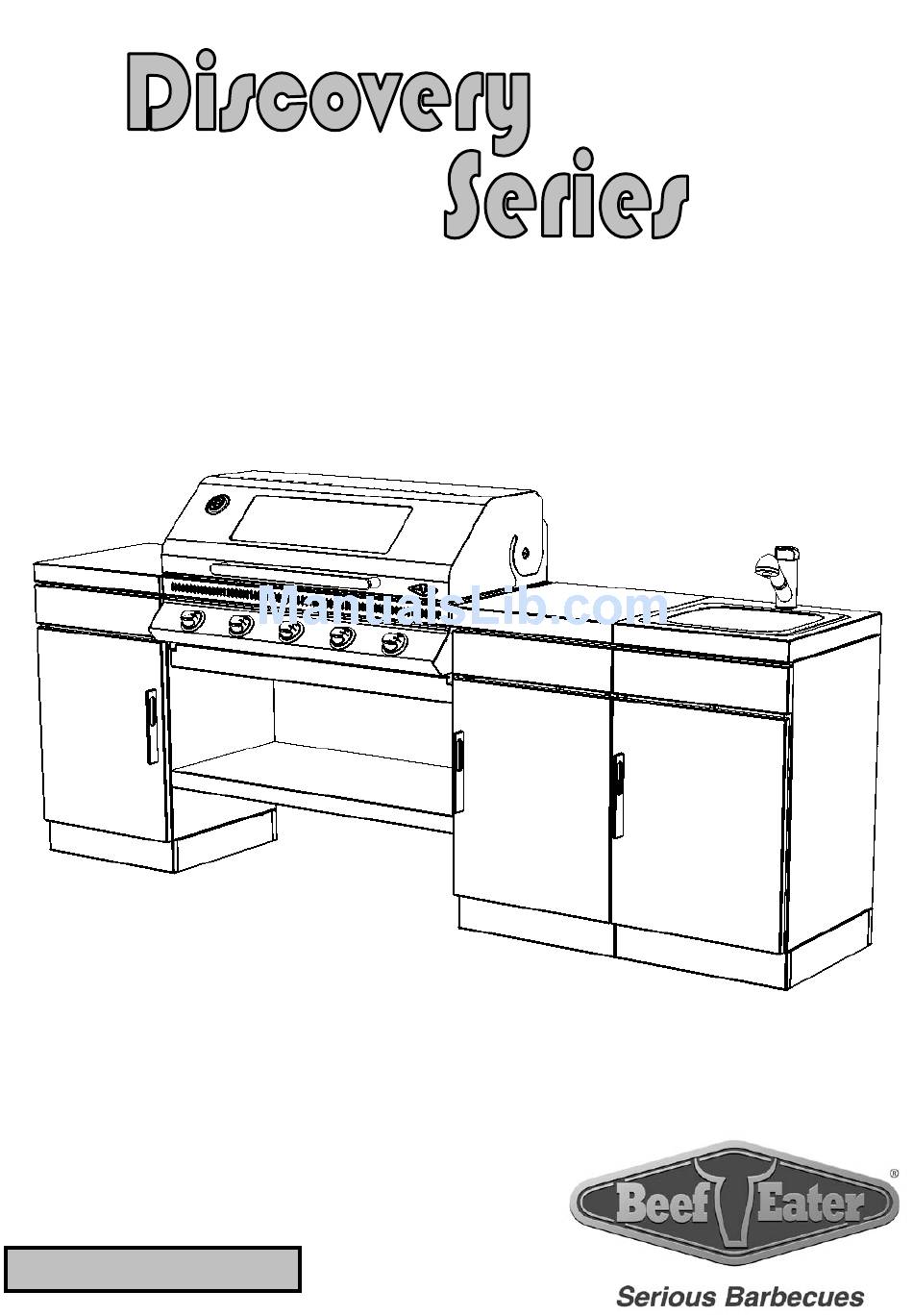

- Page 1 1100 Outdoor Kitchen Assembly and Operating Instructions To suit models: 1100s 1100e 1100 3, 4 or 5 Burners ALL MODULES FOR OUTDOOR USE ONLY...
- Page 2 Content*: Main Parts Bolt Pack Content** description description M6 x 30 screw 1100 Series BBQ with Hood M6 x 12 screw Standard Cabinet M4 x 10 screw Heat Shield spacer Fiber washer Base Shelf M6 Nut Front Guard Rubber grommet...
- Page 3 1100 Series Outdoor Kitchen Assembly Procedure Important Note: It is easier to do all assembly work while components are lying on their back, so that they do not need to be supported in the air. Once completed, the assembly can be brought back upright, leveled and completed. If choosing to work this way, ensure to remove all loose items from the different parts, and lay back on a padded, flat and level surface, not too far from where you wish the Outdoor Kitchen to stand.
- Page 4 Step 3 4 x ‘D’, 4 x ‘B’, 1 x ‘F’ Connect the base shelf to place. Once done, stand the whole assembly upright. Fit rubber grommet. Step 4 4 x ‘C’, Attach the Front Guard. You may reassemble the Hood, burners, Vaporizers, Grills and Plates. For Barbecue set up, and Gas connections, refer to Barbecue instruction book.
-
Page 5: Door Handle
Door Handle Cabinet handles should be mounted using the bottom and middle holes. To reverse a door direction Doors are fully reversible, and can be Right or Left hand opening. To reverse a door, follow these steps: 1. Remove the door by lifting up off the hinge pin, and taking out. - Page 6 Other Modules and accessories If you have purchased other, optional modules to be part of your Outdoor Kitchen, here are a few hints on assembly and function. Cabinets Position each cabinet to be added in its correct position, level it with the Outdoor Kitchen, and then fasten to the near cabinet with the 4 screws included.
- Page 7 Side Burner Module The side burner is to be connected to the Gas supply. BeefEater recommends positioning the side burner as close as possible to the BBQ, and never using a rubber hose to connect longer than 1.5m. Regulator is connected to entry ‘A’ (see below) in the Barbecue. Side Burner connected to entry ‘B’...
-
Page 8: Warranty
__________________________________________________________ Place where purchased: __________________________________________________________ Serial Number: __________________________________________________________ Spare Parts (Basic Cabinet): Images this manual illustrative purposes only. constant improvement, BeefEater advises that changes to the design, material, specifications and product configuration may occur at any time without notice. 1100_ODK_Inst_AU_V0...
