LOKA HAHB remote control
EN
5. Wire with the indoor unit
A
1
HA HB
1. indoor unit
2. notch the part for the wiring to pass through with nippers, etc.
Connect the terminals on the remote controller (HA ,HB), and the terminals of the
indoor unit (HA ,HB). (HA and HB do not have polarity.)
NOTE:
• DO NOT allow water to enter the wire controller . Use the trap and putty to seal
the wires.
• Connecting wires must be fixed reliably and cannot be pulled.
58
Installation and user manual
B

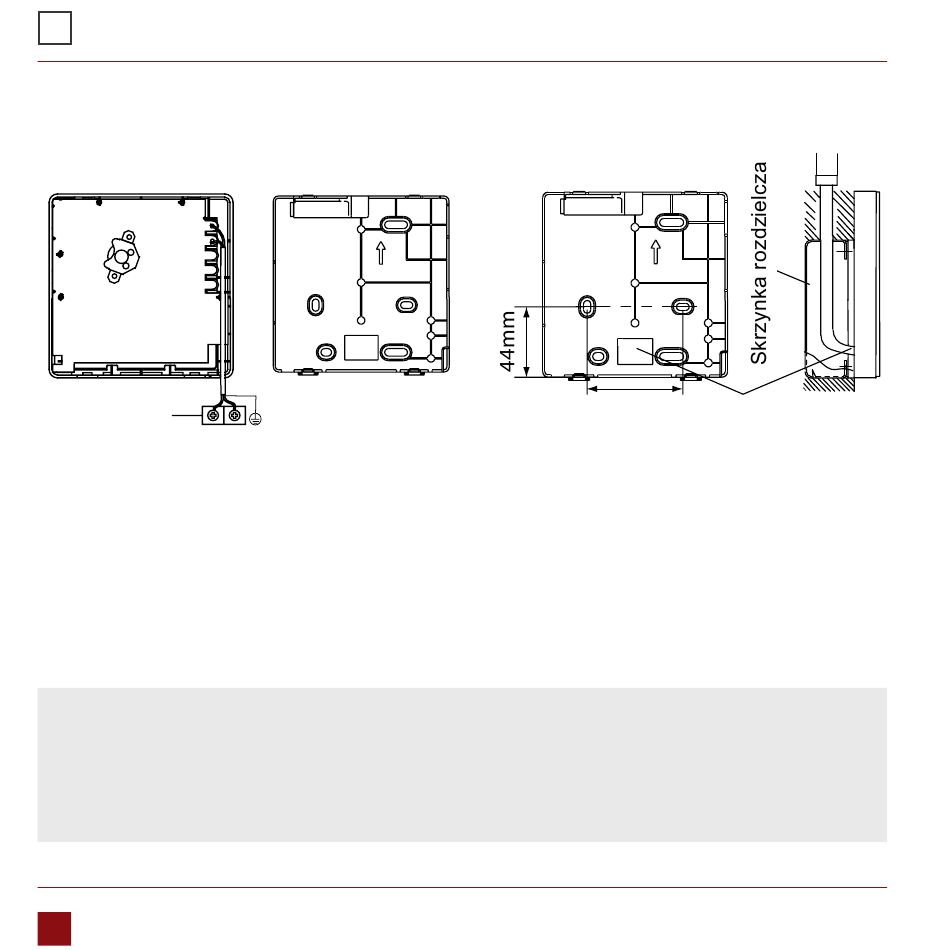

Fig 3-6
Fig. 3-6
60mm
Otwór na przewody
Wiring hole
