LOKA HAHB remote control
EN
NOTE:
The PCB is mounted in the upper part of the wired controller. Be careful not to
damage the board with the slot screwdriver.

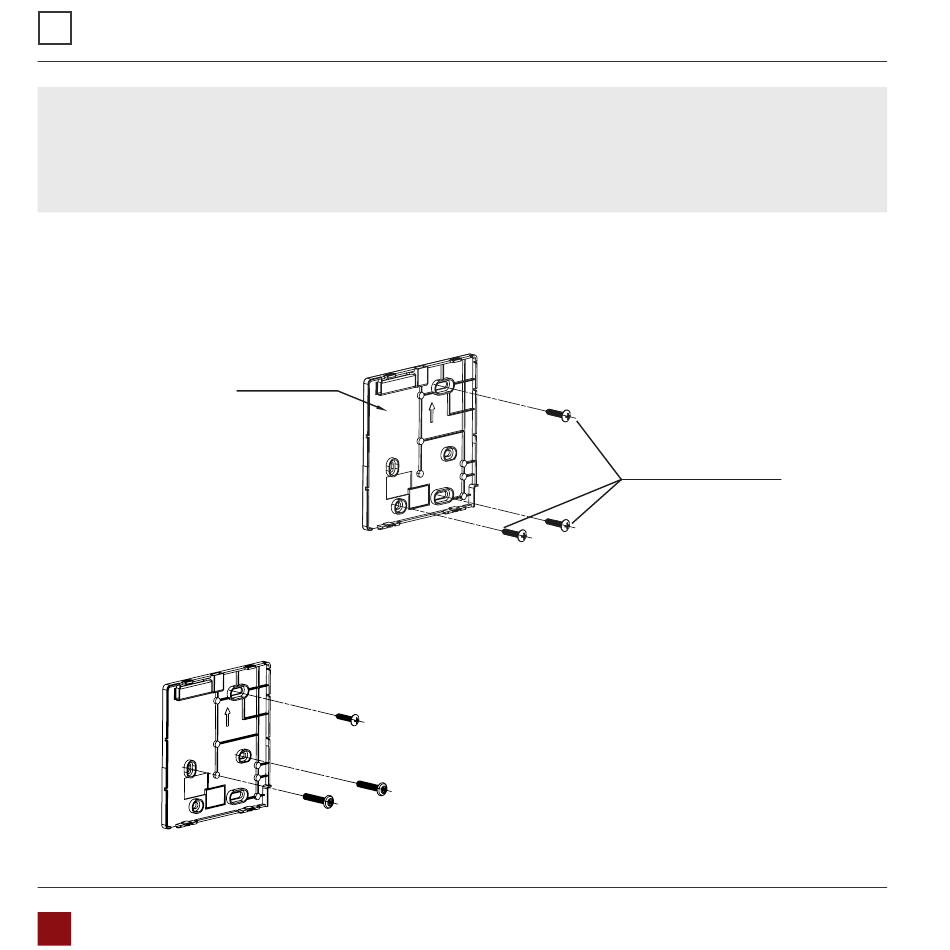

3. Fasten the back plate of the wired controller
• For exposed mounting, fasten the back plate on the wall with the 3 screws (M4×20)
and plugs. (Fig.3-3)
Tylna płyta
• Use two M4X25 screws to install the back cover on the 86 switch box, and use one
M3.9X25 screw to fix to the wall.
Fig. 3-4
56
Installation and user manual
Back plate
Fig. 3-3
Screw hole fixed on the wall, useone
φ3.9X25mm
Screw hole installed on 86 switch box, use two
M3.9X25mm
Wkręty (M4 × 20) Screws (M4×20)
