Summary of Contents for Daniela DAN2GTS
- Page 1 DAN2GTS • DAN64GTS/1 • DAN64GTS/2 DAN7 • DAN75GTS • DAN95GTS • DAN95GTS/1 2,4 & 5 BURNER GAS COOKTOPS A p p l i a n c e U s e r M a n u a l danielaappliances.com.au...
- Page 2 From an Italian heritage our brand Daniela was then established in 2005 from a father’s love to a daughter and naming it after Daniela, now the new proprietor. Daniela has worked closely with her father for many years learning from his decades of industry experience. Daniela with her extensive knowledge and understanding of appliances, now continues her father’s legacy with a modern flare.

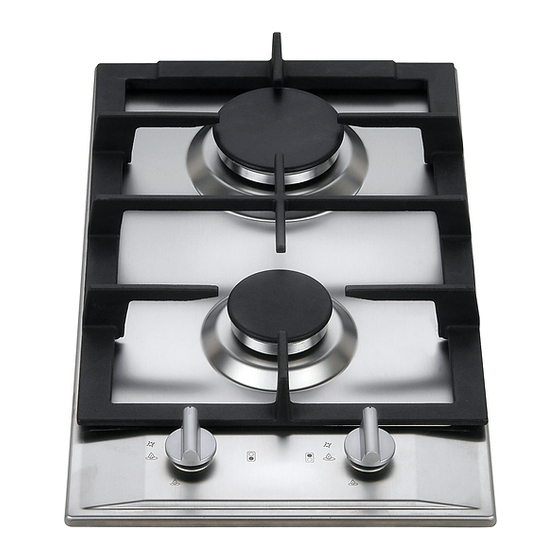

- Page 3 DAN2GTS 30CM 2 BURNER GAS COOKTOPS 60CM 4 BURNER GAS COOKTOPS DAN7 75CM 5 BURNER GAS COOKTOPS DAN75GTS/1 70CM 5 BURNER GAS COOKTOPS DAN95GTS 90CM 5 BURNER GAS COOKTOPS PA G E 3 02 9604 1226 sales@danielaappliances.com.au danielaappliances.com.au...
-
Page 4: Important Safety Instructions
SAVE THIS INSTRUCTION IN A SAFE PLACE FOR FUTURE REFERENCE Thank you for choosing Daniela appliances! Please read all instructions before using this appliance. This book contains valuable information about operation, care and service. Keep it in a safe place for future reference. - Page 5 • Repairs may only be carried out by service engineers or their authorised service agent. CHILD SAFETY • We strongly recommend that babies and young children are prevented from being near the appliance and not allowed to touch the appliance at any time. During and after use, all surfaces will be hot.
-
Page 6: Operating The Gas Hob
OPERATING THE GAS HOB LIGHTING BURNERS Simply press the knob in and turn, anti-clockwise to maximum. Check that the gas has been lit, again. Select the right size burner for the required cooking. Large flame: maximum setting Small flame: minimum setting •... -
Page 7: Suitable Pans
SUITABLE PANS BURNERS PANS Minimum Diametre Maximum Diametre 220mm 260mm Rapid 180mm 220mm Semi-Rapid 120mm 200mm Auxilary 80mm 160mm • The diametre of the bottom of the pan should correspond to that of the burner. • The burner flame must never extend beyond the diametre of thepan. •... -
Page 8: Installation - General
860mm 500mm 80mm Daniela Appliances and their appointed agents decline any responsibilities in the case of installation is not according to these instructions. Remove any packaging, plastic film etc from appliance. Before placing hotplate in position fit the foam sealing strip on the underside, around the perimeter. -
Page 9: Installation - Gas Connection
Rangehoods and overhead exhaust fans must be installed according to the manufacturer's instructions and AS5601, but in no case shall clearance from hob burners be less than 600mm for the rangehood and 750mm for the overhead exhaust fan. It is recommended that the adjacent kitchen surfaces should be capable of withstanding temperatures of 100ºC. -
Page 10: Installation - Electrical Connection
UNDER NO CIRCUMSTANCES USE A NAKED FLAME WHEN CHECKING FOR LEAKS. • Check Gas Adjustments (refer INSTALLATION – GAS CHECKS AND ADJUSTMENTS) • Ensure the appliance operating pressure is adjusted and set according to these instructions and local authority requirements. When satisfied that the hotplate is operating correctly, instruct the customer in its safe operation. - Page 11 (GPO), and then check that all the electrical connections are clean, dry and in place. Also check burner to ensure ports are not blocked or dirty. • If the hotplate fails to operate correctly, contact Daniela Appliances or their appropriate agent for service. PA G E 1 1 02 9604 1226 sales@danielaappliances.com.au...
-
Page 12: Ancillary Service Information
ANCILLARY SERVICE INFORMATION • SERVICE TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON! • DO NOT ATTEMPT ANY REPAIRS YOURSELF. • DO NOT MODIFY APPLIANCE! • ALWAYS ENSURE THAT THE GAS AND ELECTRICAL SUPPLY IS DISCONNECTED BEFORE SERVICING APPLIANCE. •... -
Page 13: Conversion To Another Gas Type
• If the gas appliance is to be used with another gas type e.g. either Propane Gas or Natural Gas, it must be converted by an Authorised Person. Contact Daniela Appliances or their authorised agent for information and parts. NATURAL GAS... - Page 14 After conversion check the GAS PRESSURE and IGNITER OPERATION for the burners. If the hotplate cooker cannot be adjusted to perform correctly, or if there is excessive flame discolouration, yellow tipping or excessive noise, contact Daniela Appliances or their authorised service agent for advice.
- Page 15 TROUBLESHOOTING HOTPLATES • When you need to access under hob, remove screws which hold the hob in position, located under each burner. Lift hob to access valves and electrical system. • To re-assemble, carry out work in reverse order, and test operation of appliance before leaving. SOLUTION TROUBLE POSSIBLE CAUSE...
- Page 16 TROUBLESHOOTING HOTPLATES • Users are not allowed to perform any maintenance operations on any parts of this appliance. Maintenance must be carried out exclusively by authorized technical personnel. SOLUTION TROUBLE POSSIBLE CAUSE FOR THE TECHNICAL FOR THE USER SUPPORT SERVICE Check inlet gas Pressure drop pressure, pipe sizes,...
- Page 17 SOLUTION TROUBLE POSSIBLE CAUSE FOR THE TECHNICAL FOR THE USER SUPPORT SERVICE Check inlet gas Clean burner by pCheck injector for washing in warm soapy Burner flame uneven. dirt / spillage. Clean water, dry and locate or replace burner if burner correctly.
- Page 18 INSTALLATION RECEIPT NUMBER: ........................If you require more information, service, warranty or spare parts enquiries please contact customer care. DANIELA APPLIANCES PTY LTD (02) 9604 1226 (9am – 5pm EST, Monday – Friday) PA G E 1 8 02 9604 1226 sales@danielaappliances.com.au...
-
Page 19: Terms And Conditions
If your goods remain boxed and in an unopened condition, they may be returned with in 30 days of the invoice date for a full refund. A collection fee of $50 will be charged should you require Daniela Appliances Pty Ltd to collect the stock. - Page 20 02 9604 1226 sales@danielaappliances.com.au A 6/9 Hume Road, Smithfield NSW 2164 danielaappliances.com.au...
