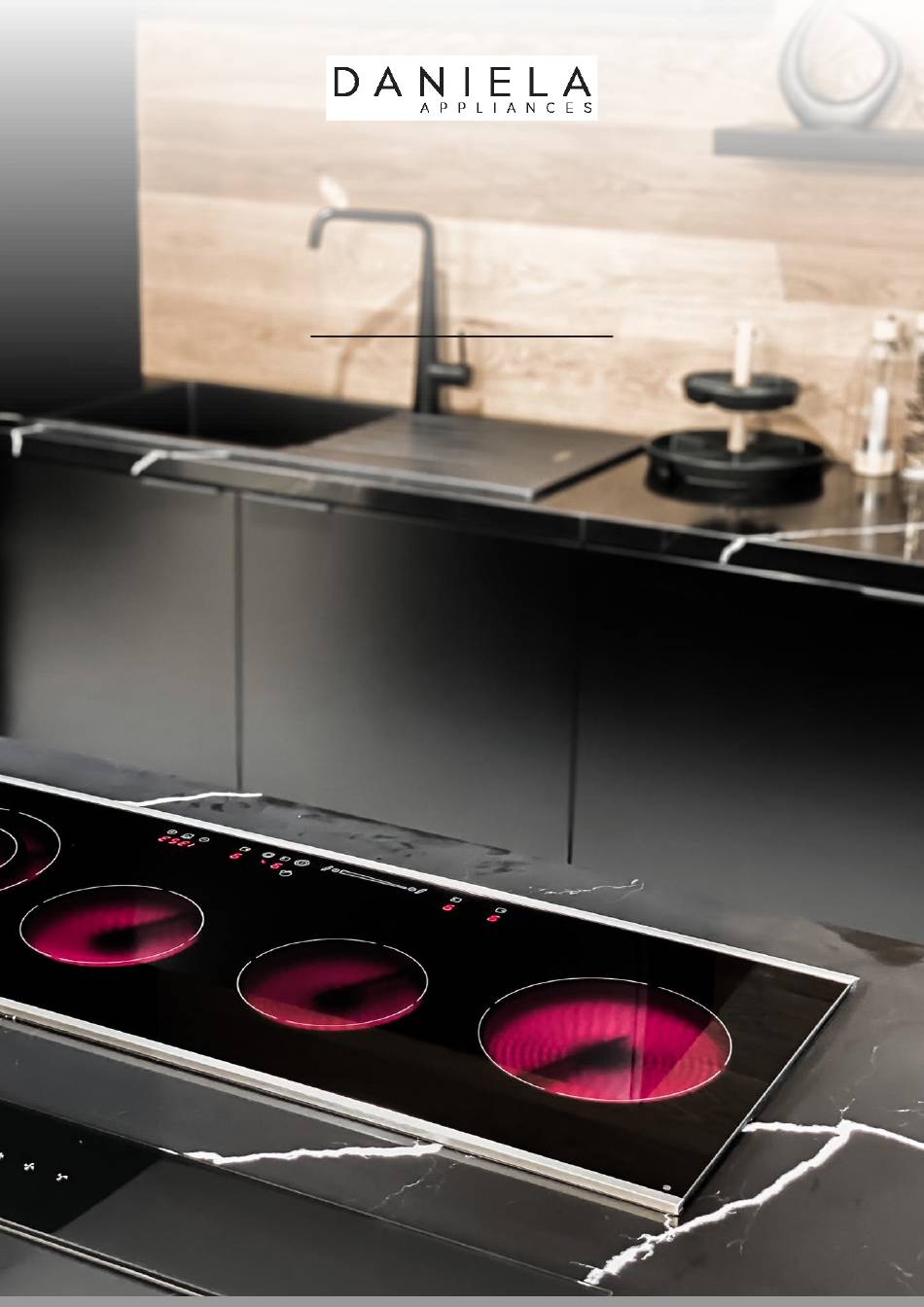

- Page 1 U s e r M a n u a l DA N 9T PQ 9 0 c m S l i d e r P a n o r a m i c C e r a m i c C o o k t o p d a n i e l a a p p l i a n c e s .
- Page 2 2005 from a father’s love to a daughter and naming it after Daniela, now the new proprietor. Daniela has worked closely with her father for many years learning from his decades of industry experience. Daniela with her extensive knowledge and understanding of appliances, now continues her father’s legacy with a...
- Page 3 The manufacturer cannot be held responsible for any inaccuracies due to printing or transcription errors that may be found in this User Manual. The pictures shown in the figures in this handbook are purely indicative. 02 9604 1226 | sales@danielaappliances.com.au | daniela.au...
- Page 4 TO OUR CLIENT • Congratulation on purchasing a ceramic cooktop. • Do not use this appliance for the first time without having read these instructions entirely. • Keep this manual carefully in order to consult it subsequently, or to let it use to someone else. •...
-
Page 5: Installation Instructions
“A”. 3. Plug the appliance in the collection. 4. Secure the appliance to the work by 4 brackets (in the packgaing box). shown in the diagram with the letter “B”. 02 9604 1226 | sales@danielaappliances.com.au | daniela.au... -
Page 6: Electrical Connection
PLACEMENT Any deformities caused by incorrect installation could affect the performance of the appliance. ELECTRICAL CONNECTION The electrical connection for the hob and that of another appliance (oven, refrigerator, dishwasher, etc...) should be connected separately for both security reasons and for any subsequent maintenance or whatever. -
Page 7: Initial Power-Up
The initial setting of the time-of-day is mandatory for the further operation of the cooktop via the Touch Control Pro Line. Setting, changing and hiding the time-of-day is only possible • if the cooktop is switched off and 02 9604 1226 | sales@danielaappliances.com.au | daniela.au... -
Page 8: Changing The Time Of Day
DESCRIPTION OF THE CONTROL TOUCH OF APPLIANCE • if no minute minder function is programmed, Notwithstanding if the key lock function is activated or not. Once set, the time-of-day function remains permanently active, with or without being displayed. 2.1 INITIAL SET UP After initialising the Touch Control 5 Pro Line as described above, the clock display demands the set- ting of the present time-of-day by pulsating “12:00”... - Page 9 Press the selector button of the desired heater. Its display starts to pulsate “0” (depicted in yellow). Now set the desired power level using the Slider. The bargraph indication displays the power level optically and the heater display indicates the power levels as a digits: 02 9604 1226 | sales@danielaappliances.com.au | daniela.au...
- Page 10 DESCRIPTION OF THE CONTROL TOUCH OF APPLIANCE These are the setting ranges: Pass your finger over the Slider back and forth” ...0-1-2-3-4-5-6-7-8-9-8-7-6-5-4-3-2-1-2-3....Whereas the bargraph indication is not illuminated in power level 0, Or directly place your finger on a certain point of the Slider and the heater display and the bargraph indication immediately show the respective power level.
-
Page 11: Residual Heat Display
If the cooktop is switched off completely, “H” is indicated steadily in the displays of those heaters which were in use before. If the cooktop is switched again, these displays will flash “H” and “0” alternately as described above. 02 9604 1226 | sales@danielaappliances.com.au | daniela.au... -
Page 12: Timer Function
DESCRIPTION OF THE CONTROL TOUCH OF APPLIANCE 4.4 TIMER FUNCTION The Touch Control 5 Pro Line offers two different timer functions: • with the cooktop switched off, without any switching function, only as a minute minder function with signal, • with the cooktop switched on and active heaters, with operation period function and signal for each heater at the same time (automatic switch off). - Page 13 Approx. 5 seconds after releasing the button or immediately after pressing the heater selector button again, the heater display stops pulsating and the time-of-day is indicated again. The indicator LED for the timed heater is now illuminated steadily. 02 9604 1226 | sales@danielaappliances.com.au | daniela.au...
- Page 14 DESCRIPTION OF THE CONTROL TOUCH OF APPLIANCE This setting can be repeated for each heater in parallel, with the respective indicator LED illuminated for each programmed heater above the time display (up to a total of 5 indicator LEDs for 5 heaters in the described version, whereas in the depicted example the left most heater is programmed).
-
Page 15: Key Lock Function
• impedes, for example, small children or pets to switch the cooktop on unwittingly. Pressing the key lock button for min.1 second activates the key lock function. Its indicator LED ap- pears. 02 9604 1226 | sales@danielaappliances.com.au | daniela.au... - Page 16 DESCRIPTION OF THE CONTROL TOUCH OF APPLIANCE As long as this function is active, it is impossible to change the cooktop settings, this means, the pres- ent status is being locked, also that of presently active heaters. Exceptions: In ON and locked mode: •...
- Page 17 DISPOSAL OF PACKAGING The disposal of packging must be done by dividing the different types of material (cardboard, plastic, etc..) and placed them in special containers in order to be able to recycle. 02 9604 1226 | sales@danielaappliances.com.au | daniela.au...
- Page 18 DISPOSAL OF PACKAGING Do not dispose of household appliances in the bins of municipal solid waste, but deliver them to an island green where will be disposed properly. D A N I E L A A P P L I A N C E S...
- Page 19 NOTE: the model number and details are to be recovered below for future reference. Please have the following information ready before calling our customer care team. Your order/appliance details Full name: ___________________________________________ Order/invoice number: __________________________________ Place of purchase:______________________________________ Oven serial number: _____________________________________ 02 9604 1226 | sales@danielaappliances.com.au | daniela.au...
