Summary of Contents for Daniela DAN6TM
- Page 1 DAN6TM 60CM CERAMIC COOKTOP A p p l i a n c e U s e r M a n u a l danielaappliances.com.au...
- Page 2 From an Italian heritage our brand Daniela was then established in 2005 from a father’s love to a daughter and naming it after Daniela, now the new proprietor. Daniela has worked closely with her father for many years learning from his decades of industry experience. Daniela with her extensive knowledge and understanding of appliances, now continues her father’s legacy with a modern flare.
- Page 3 DAN6TM 60CM CERAMIC COOKTOP PA G E 3 02 9604 1226 sales@danielaappliances.com.au danielaappliances.com.au...
-
Page 4: Installation
SAVE THIS INSTRUCTION IN A SAFE PLACE FOR FUTURE REFERENCE Thank you for choosing Daniela appliances! Please read all instructions before using this appliance. This book contains valuable information about operation, care and service. Keep it in a safe place for future reference. -
Page 5: Operation And Maintenance
• In order to avoid a hazard, this appliance must be installed according to these instructions for installation. • This appliance is to be properly installed and earthed only by a suitably qualified person. • This appliance should be connected to a circuit which incorporates an isolating switch providing full disconnection from the power supply. - Page 6 IMPORTANT SAFETY INSTRUCTIONS • Never leave the appliance unattended when in use. Boil over causes smoking and greasy spillages that may ignite. • Never use your appliance as a work or storage surface. • Never leave any objects or utensils on the appliance. •...
- Page 7 • hotels, motels and other residential type environments; bed and breakfast type environments. WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.
-
Page 8: Product Overview

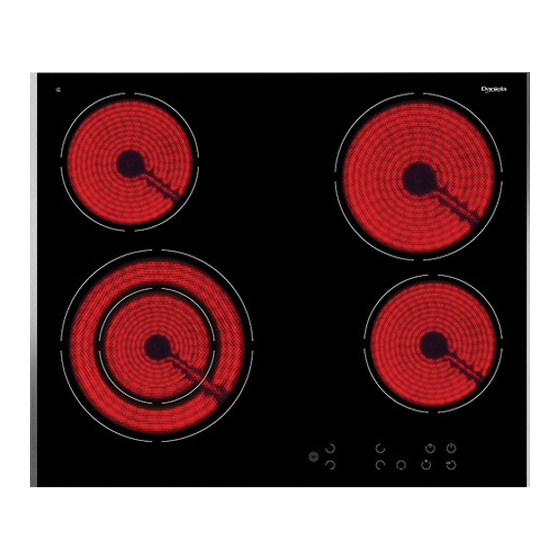

PRODUCT OVERVIEW TOP VIEW CONTROL PANEL Max. 2200/1000 W zone Heating zone selection controls Max. 1200 W zone Timer control Max. 1800W zone Power / Timer regulating controls Max. 1200 W zone Keylock control Glass plate ON/OFF control Control panel Dual zone control PRODUCT INFORMATION resistance wire heating, micro-computerized control and multi-power selection, really the optimal... -
Page 9: Using The Touch Controls
USING THE TOUCH CONTROLS • The controls respond to touch, so you don’t need to apply any pressure. • Use the ball of your finger, not its tip. • You will hear a beep each time a touch is registered. •... -
Page 10: Using Your Ceramic Hob
USING YOUR CERAMIC HOB TO START COOKING • After power on, the buzzer beeps once, all the indicators light up for 1 second then go out, indicating that the ceramic hob has entered the state of standby mode. Touch the ON/OFF control. -
Page 11: Locking The Controls
Beware of hot surfaces “H” will show which cooking zone is hot to touch. It will disappear when the surface has cooled down to a safe temperature. It can also be used as an energy saving function if you want to heat further pans, use the hotplate that is still hot. -
Page 12: Over Temperature Protection
OVER-TEMPERATURE PROTECTION A temperature sensor equipped can monitor the temperature inside the ceramic hob. When an excessive temperature is monitored, the ceramic hob will stop operation automatically. RESIDUAL HEAT WARNING When the hob has been operating for some time, there will be some residual heat. The letter “H”... - Page 13 Adjust the timer setting by touch the “-“ or “+” controls. The minute minder indicator will start flashing and will show in the timer display. Hint: Touch the “-“ or “+” control of the timer once to decrease or increase by 1 minute. Touch and hold the “-“ or ”+” control of the timer to decrease or increase by 10 minutes.
- Page 14 Touching the heating zone selection control, and then touch the “Timer”, the timer is cancelled, and the “--” will show in the minute display. When the time is set, it will begin to count down immediately. The display will show the remaining time and the timer indicator flash for 5 seconds.
-
Page 15: Cooking Guidelines
COOKING GUIDELINES COOKING TIPS • When food comes to the boil, reduce the temperature setting. • Using a lid will reduce cooking times and save energy by retaining the heat. • Minimise the amount of liquid or fat to reduce cooking times. •... -
Page 16: Heat Settings
HEAT SETTINGS HEAT SETTING HEAT SETTING SUITABILITY SUITABILITY 1 - 2 1 - 2 • delicate warming for small amounts of food • gentle simmering • delicate warming for small amounts of food • gentle simmering • melting chocolate, butter, and foods that burn quickly • slow warming •... -
Page 17: Hints And Tips
HINTS AND TIPS PROBLEM POSSIBLE CAUSES WHAT TO DO The cooktop No power. Make sure the cooktop is connected to the cannot be power supply and that it is switched on. Check turned on. whether there is a power outage in your home or area. - Page 18 INSTALLATION Selection of installation equipment Cut out the work surface according to the sizes shown in the drawing. For the purpose of installation and use, a minimum of 5 cm space shall be preserved around the hole. Be sure the thickness of the work surface is at least 30mm. Please select heat-resistant work surface material to avoid larger deformation caused by the heat radiation from the hotplate.
- Page 19 Before you install the hob, make sure that • the work surface is square and level, and no structural members interfere with space requirements. • the work surface is made of a heat-resistant material. • if the hob is installed above an oven, the oven has a built-in cooling fan. •...
- Page 20 Before locating the fixing brackets The unit should be placed on a stable, smooth surface (use the packaging). Do not apply force onto the controls protruding from the hob. Adjusting the bracket position Fix the hob on the work surface by screw 4 brackets on the bottom case of hob (see picture) after installation.
- Page 21 Connecting the hob to the mains power supply The power supply should be connected in compliance with the relevant standard, or a single- pole circuit breaker. The method of connection is shown below. If the cable is damaged or needs replacing, this should be done by an after-sales technician using the proper tools, so as to avoid any accidents.
- Page 22 INSTALLATION RECEIPT NUMBER: ........................If you require more information, service, warranty or spare parts enquiries please contact customer care. DANIELA APPLIANCES PTY LTD (02) 9604 1226 (9am – 5pm EST, Monday – Friday) PA G E 2 2 02 9604 1226 sales@danielaappliances.com.au...
-
Page 23: Terms And Conditions
If your goods remain boxed and in an unopened condition, they may be returned with in 30 days of the invoice date for a full refund. A collection fee of $50 will be charged should you require Daniela Appliances Pty Ltd to collect the stock. - Page 24 02 9604 1226 sales@danielaappliances.com.au A 6/9 Hume Road, Smithfield NSW 2164 danielaappliances.com.au...
