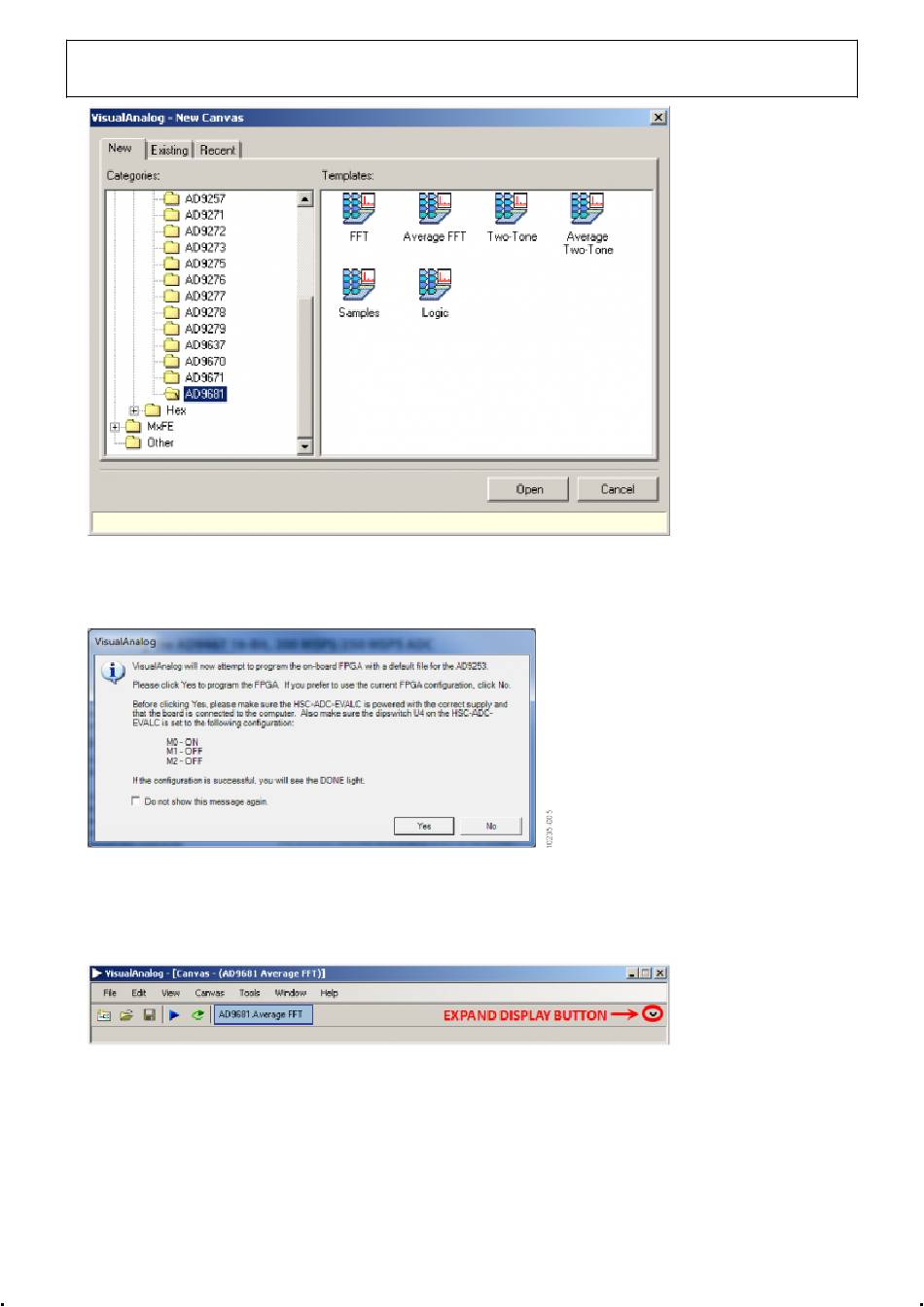

New Canvas Window
2.
After the template is selected, a message might appear asking if the default configuration can be
used to program the FPGA (see Figure 4). If this message appears, click Yes, and the window will
close.
Configuration Message
3.
To change features to settings other than the default settings, click the Expand Display button,
located on the bottom right corner of the window (see Figure 5), to see what is shown in Figure 6.
4.
Change the features and capture settings by consulting the detailed instructions in the
Application
Note, VisualAnalog Converter Evaluation Tool Version 1.0 User Manual.
Figure 5. VisualAnalog Window Toolbar, Collapsed Display
Rev 13 Nov 2013 01:53 | Page 9
Figure 3. VisualAnalog,
Figure 4. VisualAnalog Default
AN-905
