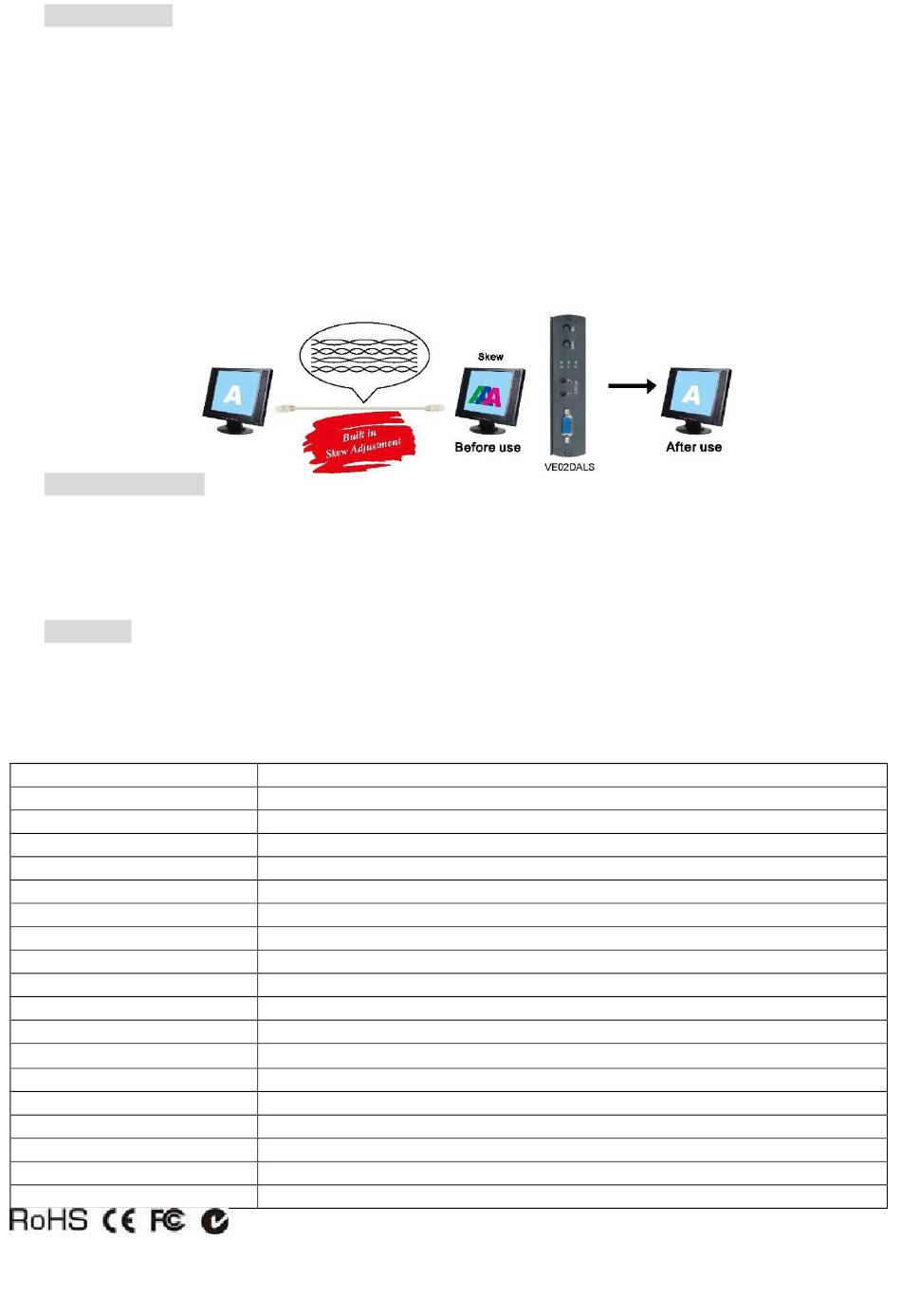

Adjustment:

EQ : Cable length EQ adjustment for picture sharpness, clockwise turning to enhance
signal, counter-clockwise to lower signal.
Gain: Video signal gain adjustment for picture brightness, clockwise turning to enhance
signal, counter-clockwise to lower signal.
Skew Select ← → : Press ← → 2 buttons together to start the Skew adjustment mode.
Skew Select ← : reduce delay time (color move to left side)
Skew Select → : increase delay time (color move to right side)
Note: 1. Under Skew adjustment mode without any setting in 30 seconds,
it will be auto off skew adjustment mode.
2. EQ, Gain, Skew adjustment also influence the picture quality of Loop Out.

LED Indication:

Blue LED: Power on/off
Vertical 3 x LED:
Link Cable Connector:
Green LED: Audio signal lock (LED on)
Caution:
The cabling must away from any equipment with electromagnetic wave, i.e.: microwave,
radio equipment, high voltage lines.

Specification:

ITEM NO.
Resolution
Video Bandwidth
Video Output
Sync Output
Horizontal Frequency
Vertical Frequency
VGA Connector
Audio Bandwidth
Link Connector
Analog Audio Output
Analog Audio Connector
Digital Audio Connector
Skew Adjustment
Max Distance
Power Supply
Power Consumption
Dimensions
Weight
Under skew adjustment mode: Press ← → 2 buttons together again
to switch the color (RGB) you want to adjust.
Under skew adjustment mode, to indicate the color you adjust
R = Red, G = Green, B = Blue.
mm
g
VE02DALS
Up to 1920x1200 @60Hz
122MHz(-3dB)
RGB Analog, 75Ω, 0.7Vp-p
H/V Separated, 5V TTL
30-95 KHz
50-180 Hz
DB15 x 1
20-20KHz (-3dB)
RJ45 x 2
10KΩ, 3Vp-p (Max)
3.5mm Stereo Phone jack x 1
Coaxial RCA x 1 (75Ω)，Optical x 1
0 – 62ns ( 2ns Step )
Up to 1000 ft. (300M)
5V DC 2000mA
1000mA (Max)
125 x 95 x 30
285
Rev. B
