RT880E SERVICE MANUAL
Item
12 Connector Bulkhead
13 Cab Interior Harness
14 Swivel Harness
15 Seat Harness
16 Seat Harness
17 Superstructure Harness
18 Overhead Harness
19 Overhead Harness
20 Cab Interior Harness
21 Cab Interior Harness
22 Cab Interior Harness
23 Cab Interior Harness
24 Superstructure Harness
25 Superstructure Harness
26 CAN Junction Box (125K)
27 Cab Module
7693-9
Grove
Component
FIGURE 3-5
Published 11-10-2014, Control # 524-00

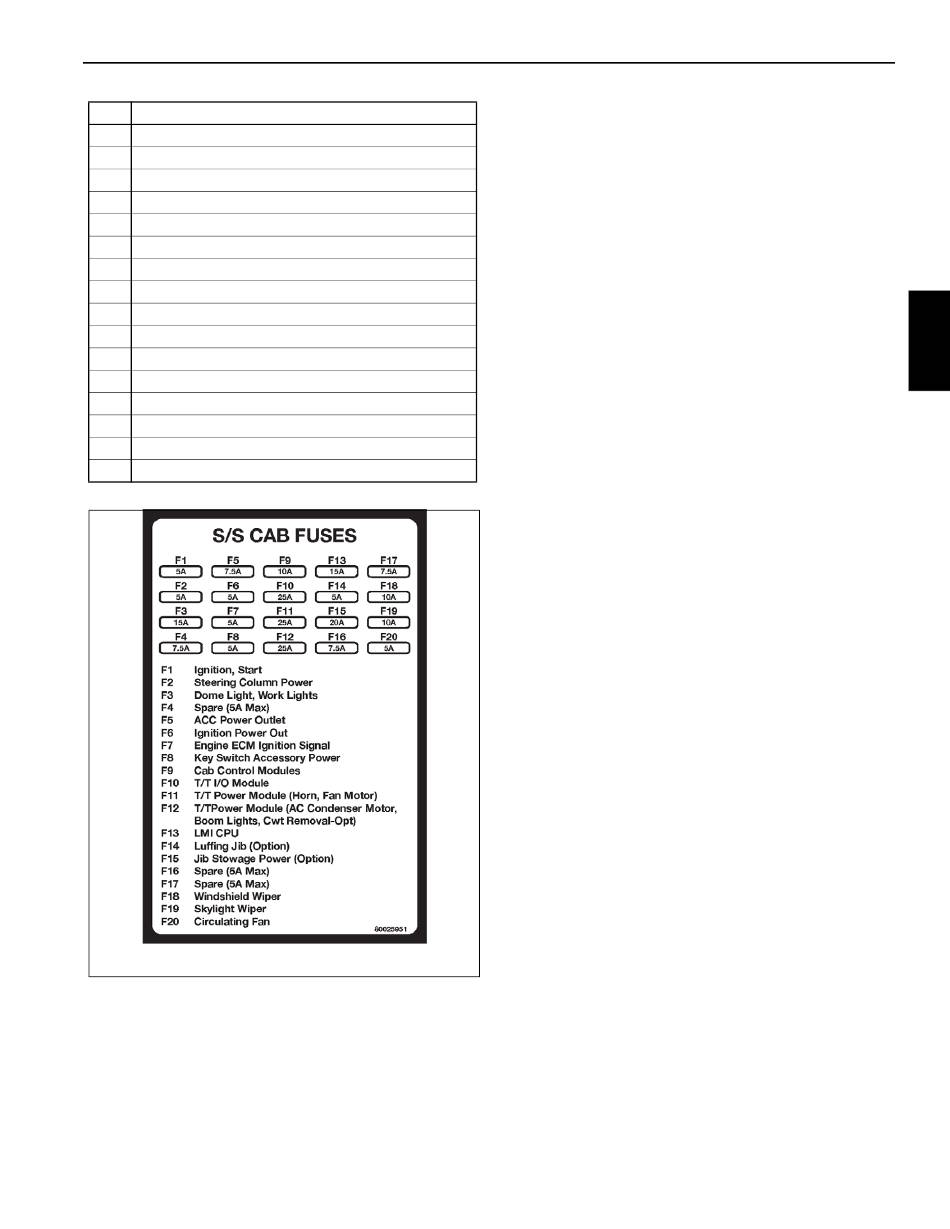

The following fuse assignments apply:
• Fuse 1 - Ignition Power in circuit
• Fuse 2 - Steering Column Power circuit
• Fuse 3 - Dome Light and Working Lights
• Fuse 4 - Spare
• Fuse 5 - ACC power and Diagnostic Connector circuit
• Fuse 6 - Ignition power out
• Fuse 7 - Engine ECM Ignition Signal and Emergency
Stop
• Fuse 8 - Key Switch Accessory Power
• Fuse 9 - Cab Control Modules Power
• Fuse 10 - Turntable I/O Module
• Fuse 11 - Turntable Power Module (Horn, Fan Motor)
• Fuse 12 - Turntable Power Module (AC Condenser
Motor, Boom Lights, Counterweight Removal - Option)
• Fuse 13 - RCL CPU
• Fuse 14 - Luffing Jib Option
• Fuse 15 - Jib Stowage Power Option
• Fuse 16 - Spare - 5A Max
• Fuse 17 - Spare - 5A Max
• Fuse 18 - Windshield Wiper
• Fuse 19 - Skylight Wiper
• Fuse 20 - Circulating Fan
ELECTRIC SYSTEM
3-5
3
