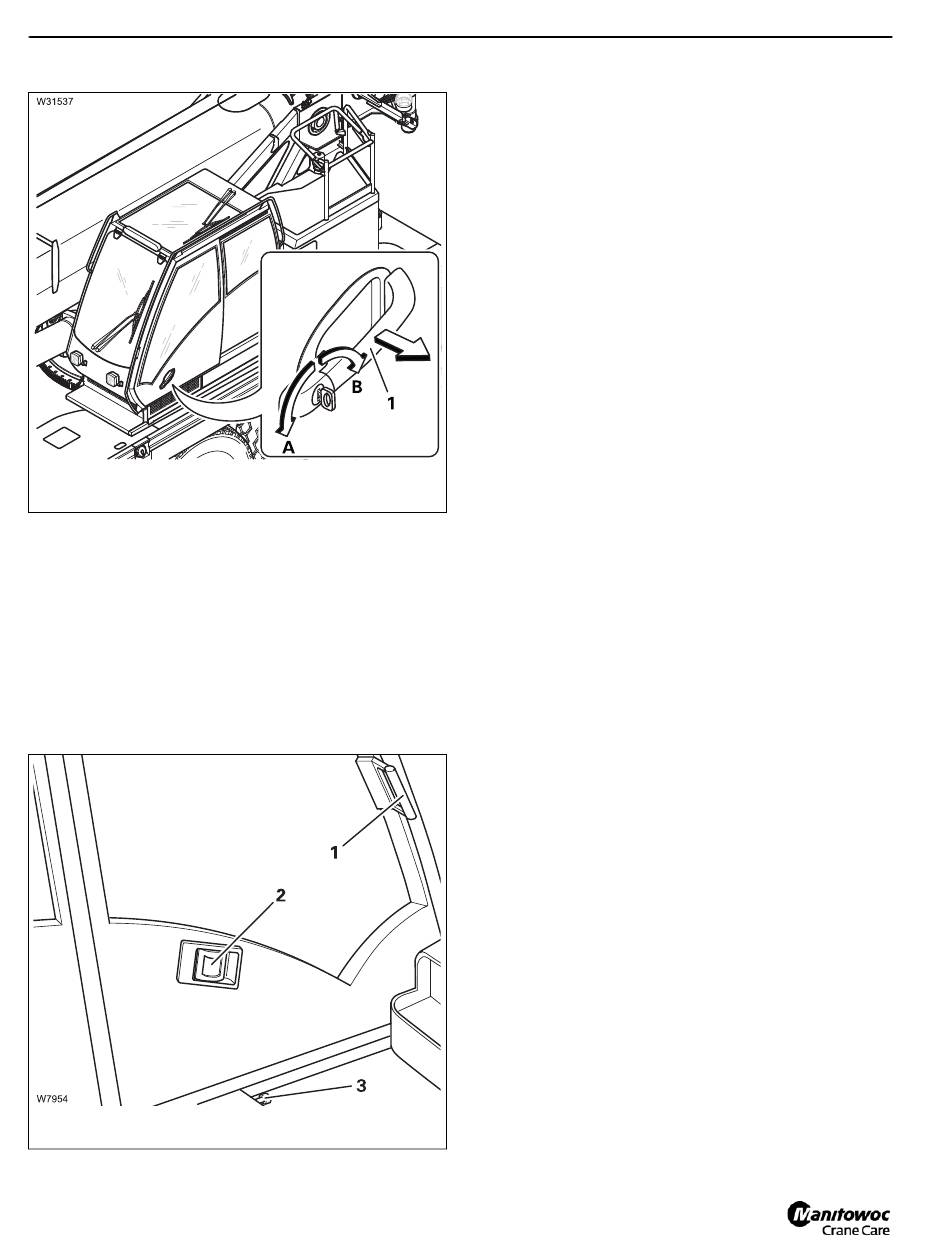

Inside door operation
Closing
Pull unlocking lever (3, (Figure 3-232)), push door forwards
by handle (1) – latches.
Locking from inside not possible.
Opening
Pull unlocking lever (2), push door back by handle (1) –
latches.
3-144
CRANESTAR

Overview

Your truck crane maybe equipped with the optional
CraneSTAR system.
The CraneSTAR system is used to transmit crane data via
mobile phone or satellite and thus offers various possibilities
for remote diagnostics and for locating the truck crane.
Transmission is primarily via mobile phone (GSM). If
transmission via mobile phone is disrupted, the device will
automatically switch to transmission via satellite.
The CraneSTAR® system works automatically, no controls
must be operated. This document just shows the position of
t h e a s s o c i a t e d c o m p o n e n t s a n d g i v e s t i p s o n
troubleshooting.
The CraneSTAR system will only be activated at the request
of the crane owner.
Information on viewing the transmitted data in the Internet
8854-251
can be found in the separate CraneSTAR Operating
FIGURE 3-231
instructions and at:
www.cranestar.net – here, you will find all of the information
about activating the CraneSTAR system.

Position of the components

The CraneSTAR system includes two antennas and a
Telematic Control Unit (TCU), the control unit for data
transmission.
The satellite antenna (1, (Figure 3-233)) is located on the
rear right or left of the turntable.
The antenna (2) is a combined GSM/GPS antenna for
transmission via mobile phone (GSM) and for the navigation
system (GPS).
The antennas are connected to the TCU (4).
The lights (3) are used for troubleshooting.
8856-35
FIGURE 3-232
Published 02-21-2019, Control # 611-05
TMS9000-2 OPERATOR MANUAL
®
SYSTEM
