Remote Control Components

Table 3-3 Remote Control Components
Item Component (Figure 3-168)
1 Programming Port
2 Color Display
3 Power Button
4 Indicator LED
3-110
For Grove factory authorized use only.
Displays information for the selected function.
ON/OFF switch which activates and deactivates the remote control.
Amber, solid = remote control in bootloader mode (ready to be programmed)
Green, slow blink = wireless communication OK
Red, slow blink = E-stop relay open or wireless communication stopped
Red, fast blink = battery low
Red, solid = remote controlling error
Published 02-21-2019, Control # 611-05
TMS9000-2 OPERATOR MANUAL
Description

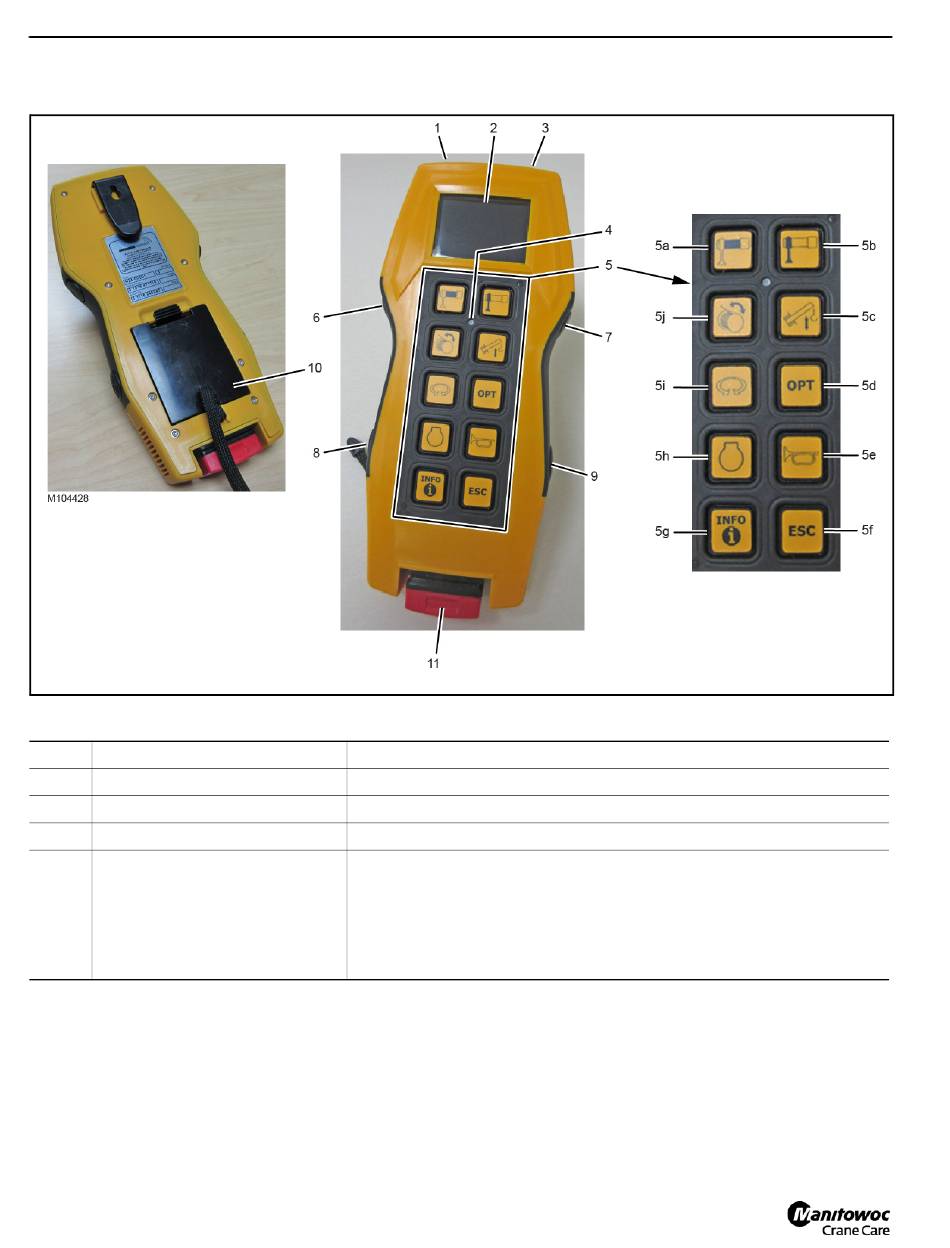

FIGURE 3-168
