Menu AMP SERVICE

5.2.
The menu AMP SERVICE (see
(see
Figure 5-1 | MENU SELECTION
The AMP SERVICE menu is used for checking and adjustment of the zero-signal (idle)
drain current of the final transistors and for testing some functions and circuits of the
amplifier when serviced. We recommend these procedures are carried out only by a
trained service technician!
The inactive functions are greyed out and the active are red. When leaving a function submenu, it is turned
off and deactivated automatically. At pressing the BACK button all service functions are turned off, and the
MENU SELECTION screen comes back (see
BACK button, the basic screen returns (see
If, the device does not operate normally and you need an amplifier servicing, we
recommend repair, performed only by a trained service technician.
Contact your ACOM dealer for assistance (see Section
Page 46 of 76 | S e c t i o n MENUS - SETTINGS AND SERVICE FUNCTIONS
User's Manual | ACOM 2020S | 1.8-54 MHz Linear Power Amplifier

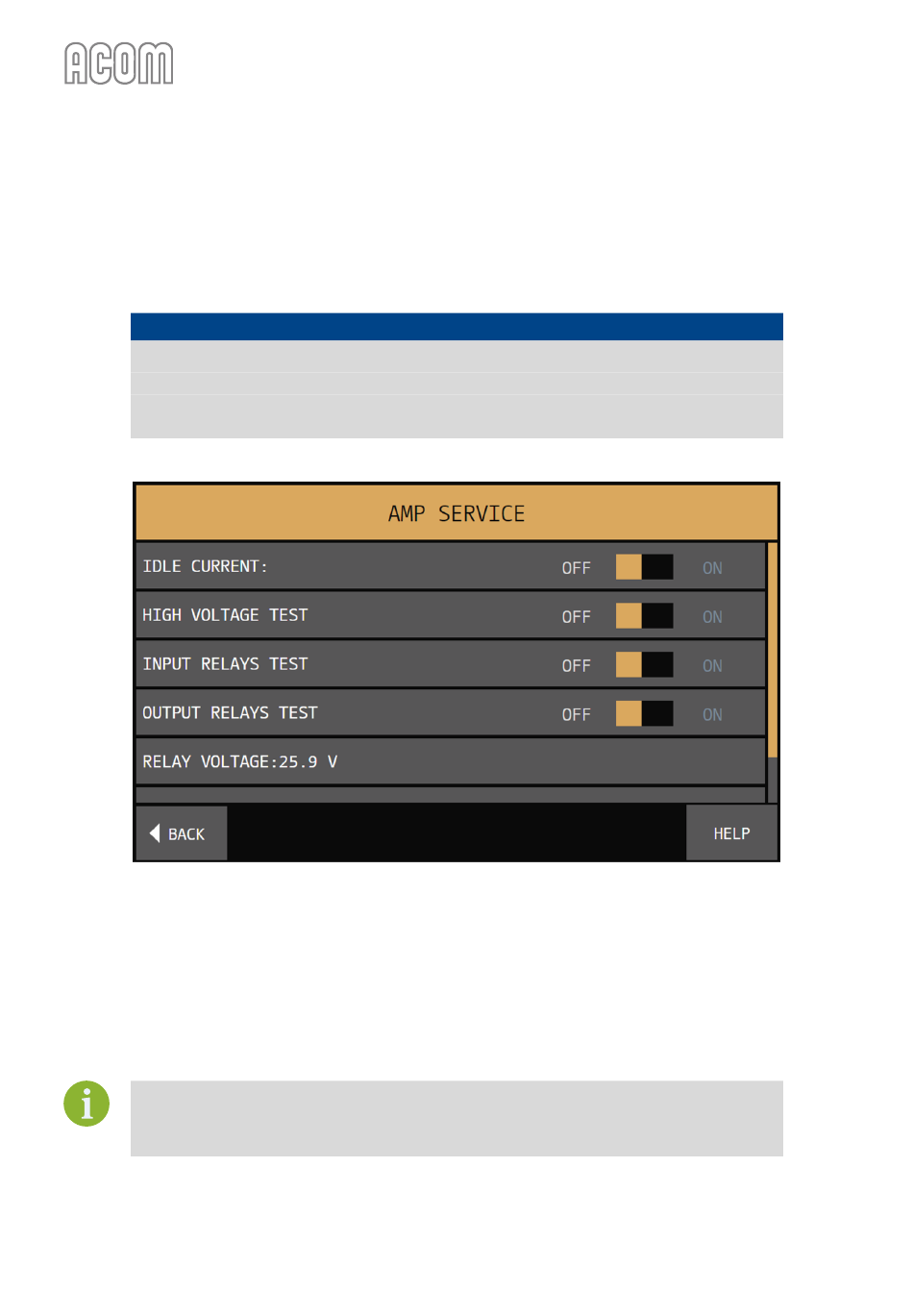

Figure 5-6 | Menu AMP SERVICE

).
