User's Manual | ACOM 2020S | 1.8-54 MHz Linear Power Amplifier

Menu CAT SETTINGS

5.3.
The menu CAT SETTINGS (see
screen (see
Figure 5-1 | MENU SELECTION
After a CAT cable is connected between the transceiver and amplifier (see
(transceiver, computer, etc.)
no CAT connection, OFF has to be selected as INTERFACE type.
The CAT settings are accessible only in RX mode. The amplifier will automatically switch to SERVICE mode
when entering the CAT SETTINGS menu and switch to STANDBY mode upon exiting.
To setup the CAT interface, first the type of INTERFACE needs to be selected (see
):
SETTINGS
RS-232 (serial band data, RS-232 levels);
•
TTL (serial band data, TTL levels);
•
BCD (parallel band data);
•
VOLTAGE (analog band data).
•
If the amplifier CAT port is connected to the transceiver via either BCD or VOLTAGE output, select the
respective interface type and push the BACK button. The other items and values will be ignored with such a
selection.
June 2022

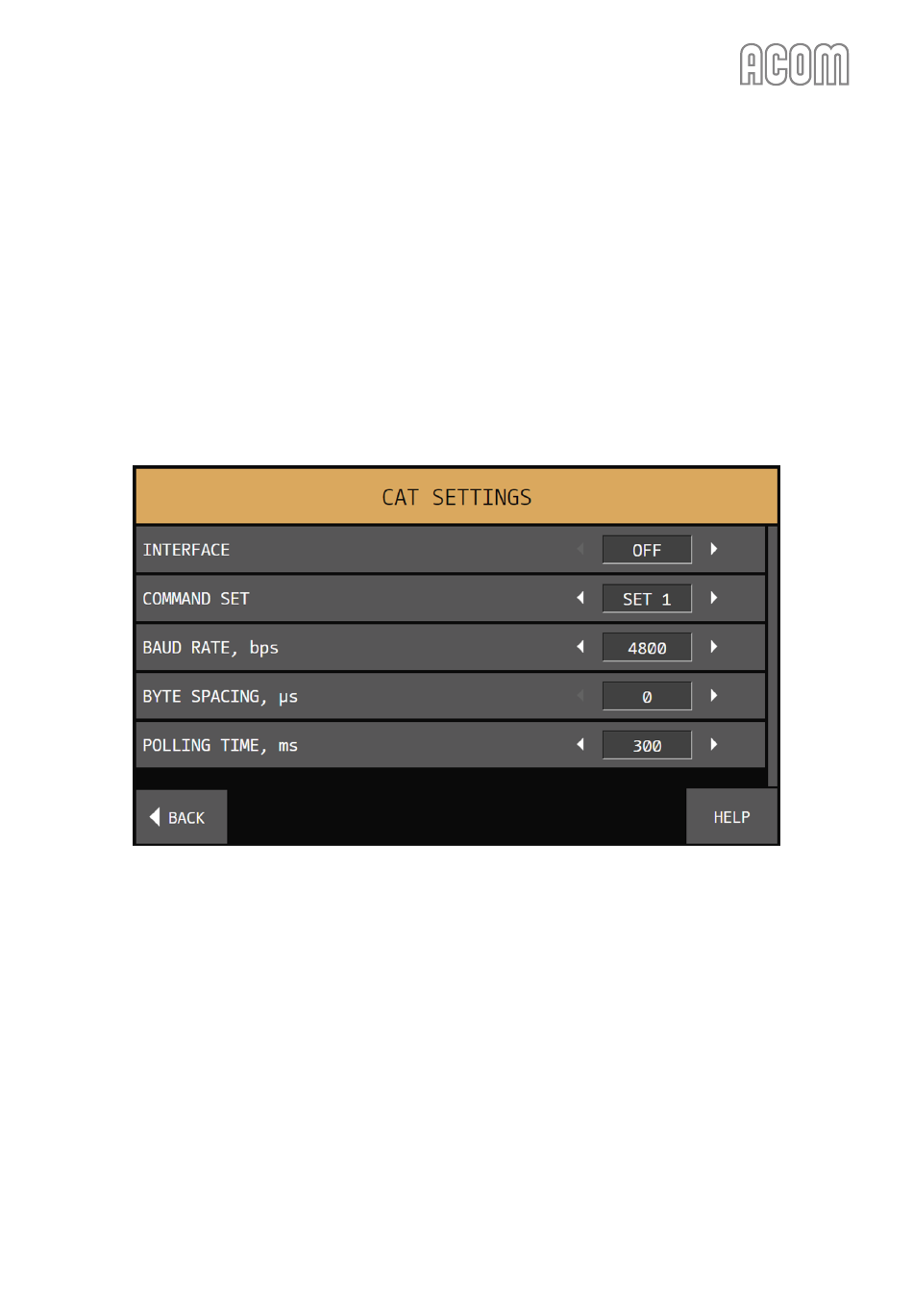

Figure 5-7 | Menu CAT SETTINGS

).
, the correct settings for the transceiver have to be set via this menu. If there is
Figure 5-7 | Menu CAT SETTINGS
Figure 5-7 | Menu CAT SETTINGS
S e c t i o n MENUS - SETTINGS AND SERVICE FUNCTIONS | Page 47 of 76
) is accessible from the MENU SELECTION
2.5 Connecting to External Devices
Figure 5-7 | Menu CAT
