Menu NETWORK SETTINGS

5.6.
The menu NETWORK SETTINGS (see
SELECTION screen (see
Figure 5-1 | MENU SELECTION
This menu is used to set the parameters for LAN (Local Area Network) network connection.
Available network parameters:
NETWORK MODE
•
This parameter is used to choose between:
ETHERNET wired (cable) connection (see
-
connector);
Wi-Fi (wireless) connection (see
-
DISABLED network connection (in this selection, all other fields are hidden until
-
either ETHERNET or Wi-Fi is selected).
IP ADDRESS ASSIGNMENT
•
This parameter is used to selects the method to set the IP (Internet Protocol) address, subnet
mask and gateway of the chosen network interface. There are two possibilities:
MANUAL
-
If MANUAL is selected, the fields IP ADDRESS, SUBNET MASK, GATEWAY and DNS are
enabled, and the user is able to set their values, using the on-screen virtual keypad
that pops up once they are touched (see
June 2022

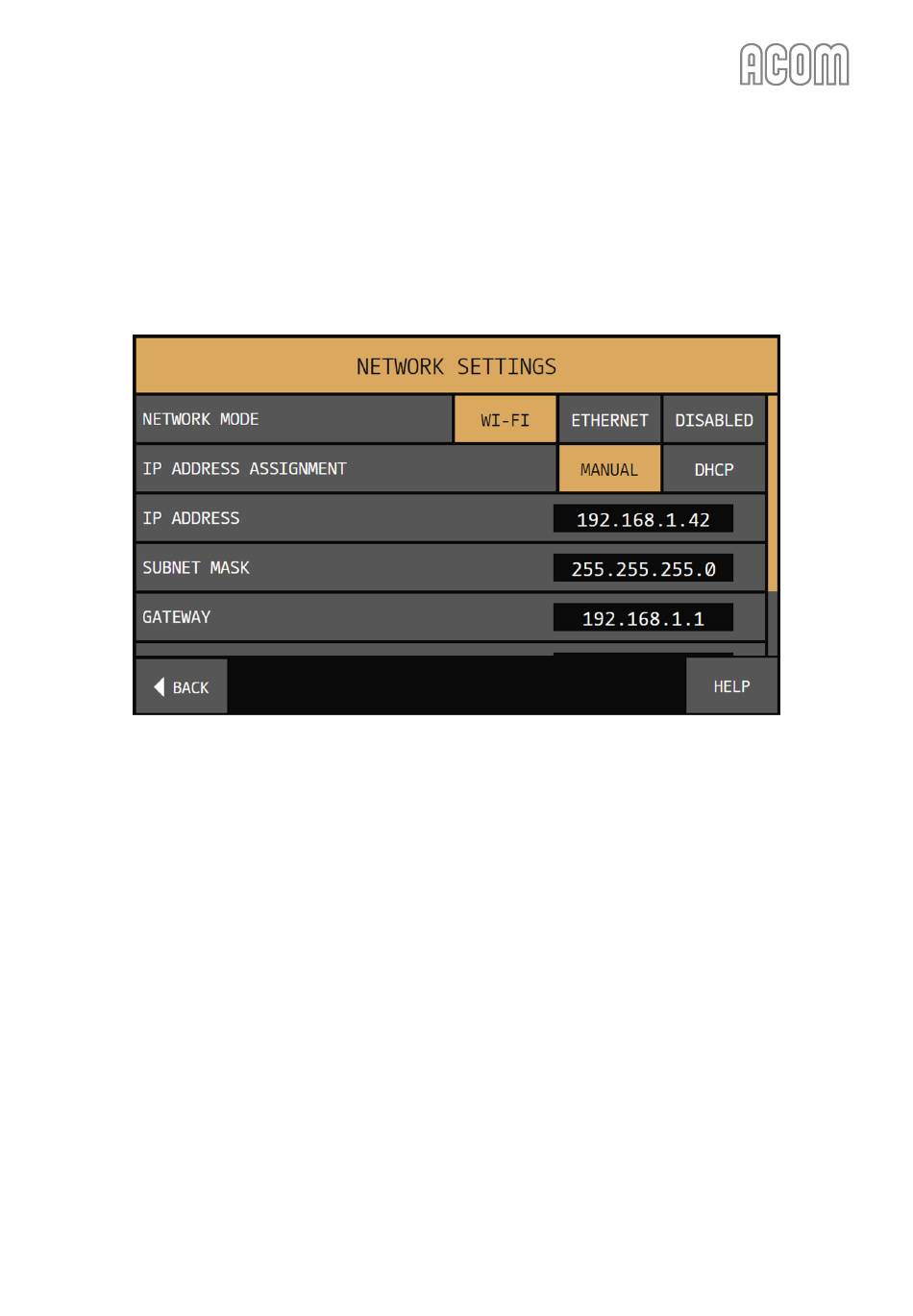

Figure 5-10 | Menu NETWORK SETTINGS

).
Figure 5-10 | Menu NETWORK SETTINGS
Figure 5-10 | Menu NETWORK SETTINGS
2.5.e) RCU's Wi-Fi device
S e c t i o n MENUS - SETTINGS AND SERVICE FUNCTIONS | Page 51 of 76
) is accessible from the MENU
2.5.d) RCU's LAN Ethernet interface
interface);
Figure 5-11 | Virtual keypad
);
