Set the COM port assigned to the AA-170 as shown in Figure D-4.

Note:

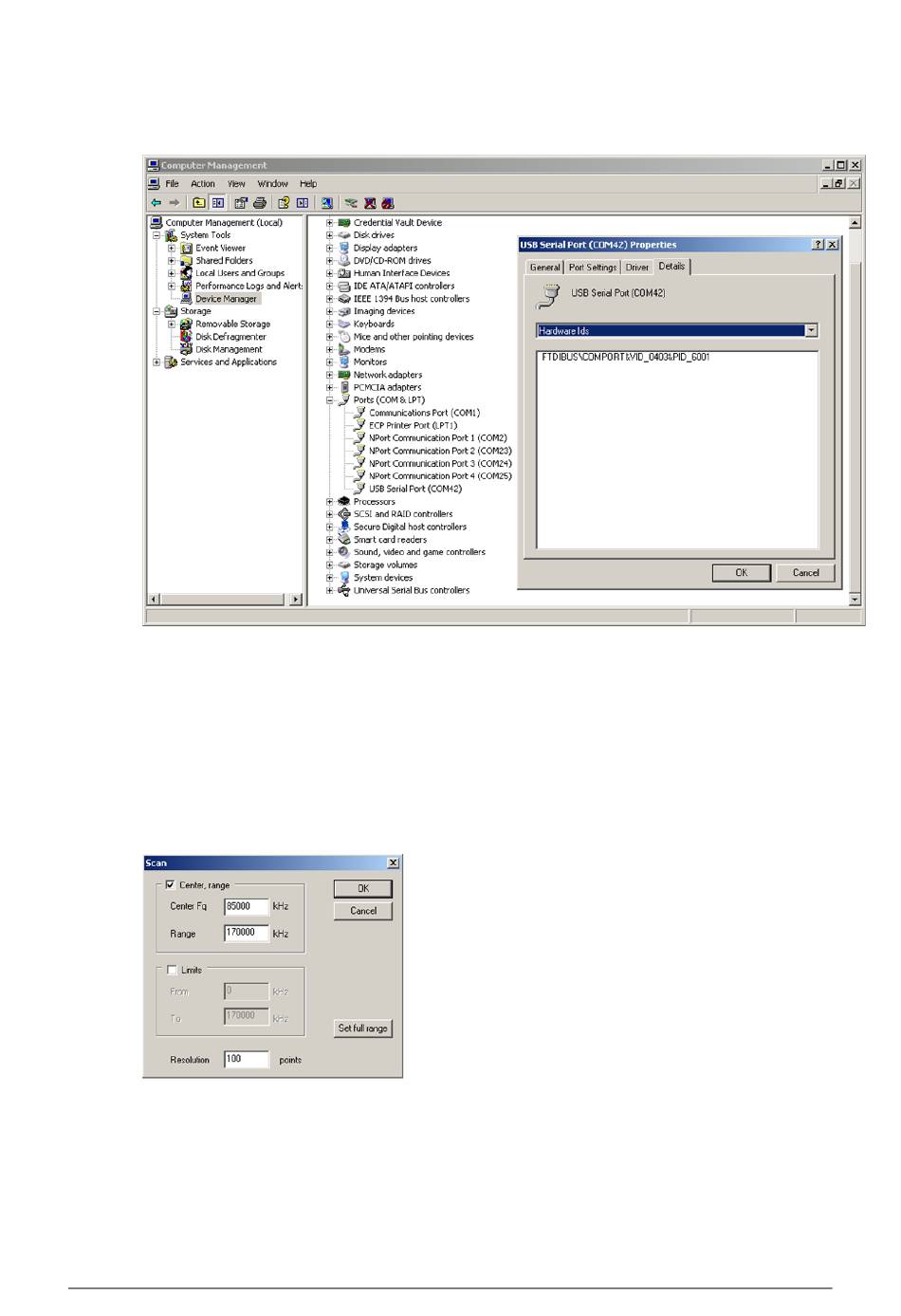

Figure D-4: AA-170 - USB serial port

Select the AA-170 as the antenna analyser model in the AntScope software (select

Configure and then AA-170).

Place the coaxial cable so that during the calibration and the subsequent

measurements minimal movement of the cable will occur. Leave the clips

unconnected, i.e. open circuit, as shown in Figure D-8).

Select Action > Scan to configure the resolution and scanning range. Type 100

points for the resolution, click the Set full range button (or press F9) and click OK

as shown in Figure D-5. A measurement will be triggered.

Figure D-5: 100 points and 'Set full range'

The progress of the scan is displayed on the status bar (bottom left of the AntScope

window). Wait until the scan is finished.

MA-017 – BMT 330 Installation Manual – Rev 3.3

To verify that this COM port is the one assigned to AA-170, check the

vendor id (VID=0403) and product id (PID=6001).

4-Mar-22

Page 51 of 69
