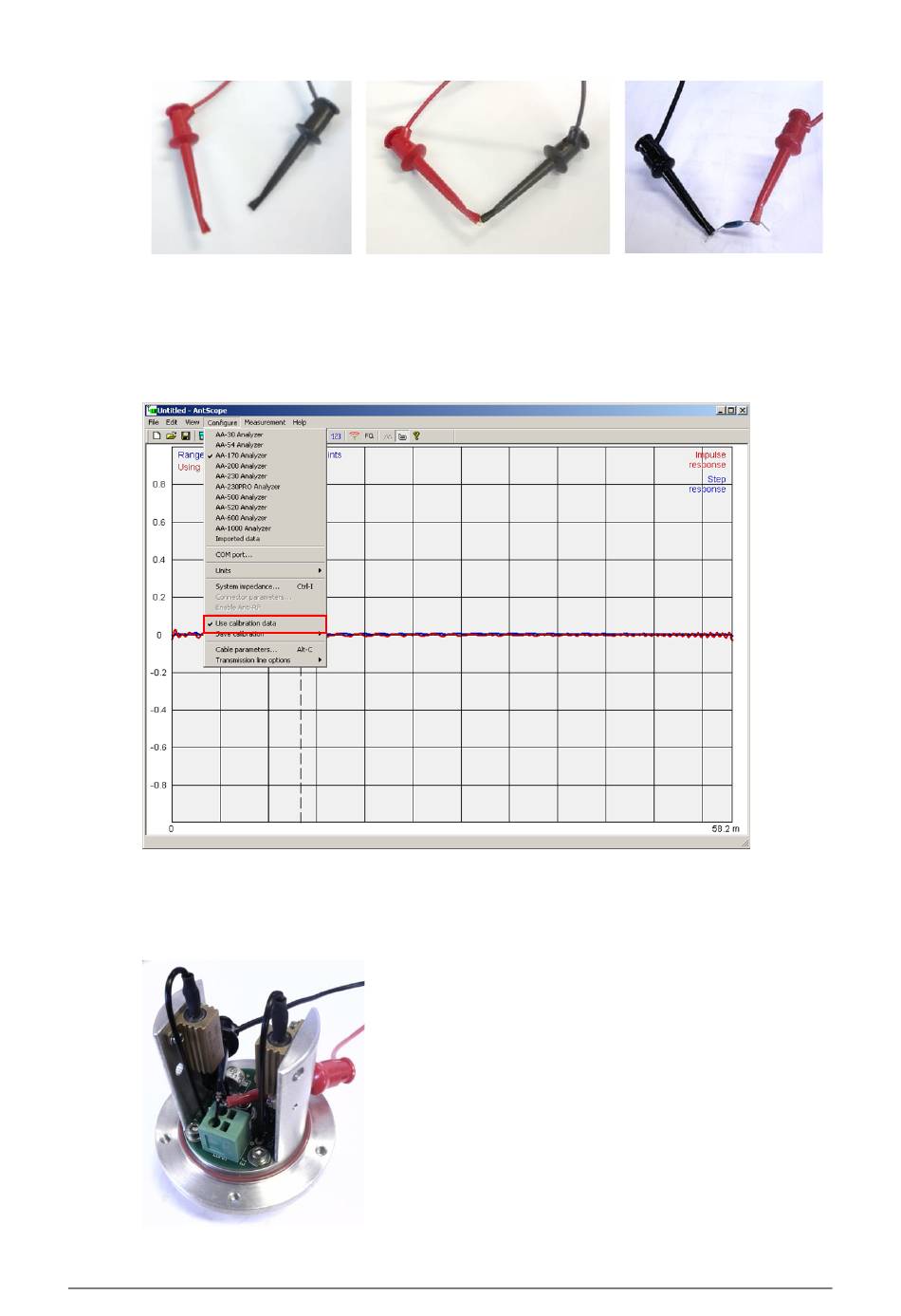

Figure D-8: Open calibration
14. Select the Configure menu item and ensure that Use calibration data is checked
as shown in Figure D-11.
Note:
Figure D-11: Use calibration data
15. Select View > Phase to change the display.
16. Connect the clips to the Bushing Adaptor using the short cables in the adaptor's
connector as shown in Figure D-12.
Figure D-12: Bushing adaptor measurement
MA-017 – BMT 330 Installation Manual – Rev 3.3
Figure D-9: Short calibration
If the calibration is used, a message stating "Using OSL calibration" is
shown on the top left of the graph.
Figure D-10: Load
calibration
4-Mar-22
Page 53 of 69
