3. In the Upload dialog box, type the IP address (the default is 192.168.0.121), uncheck
the LAN settings box and click the Upload button as shown in Figure E-13.

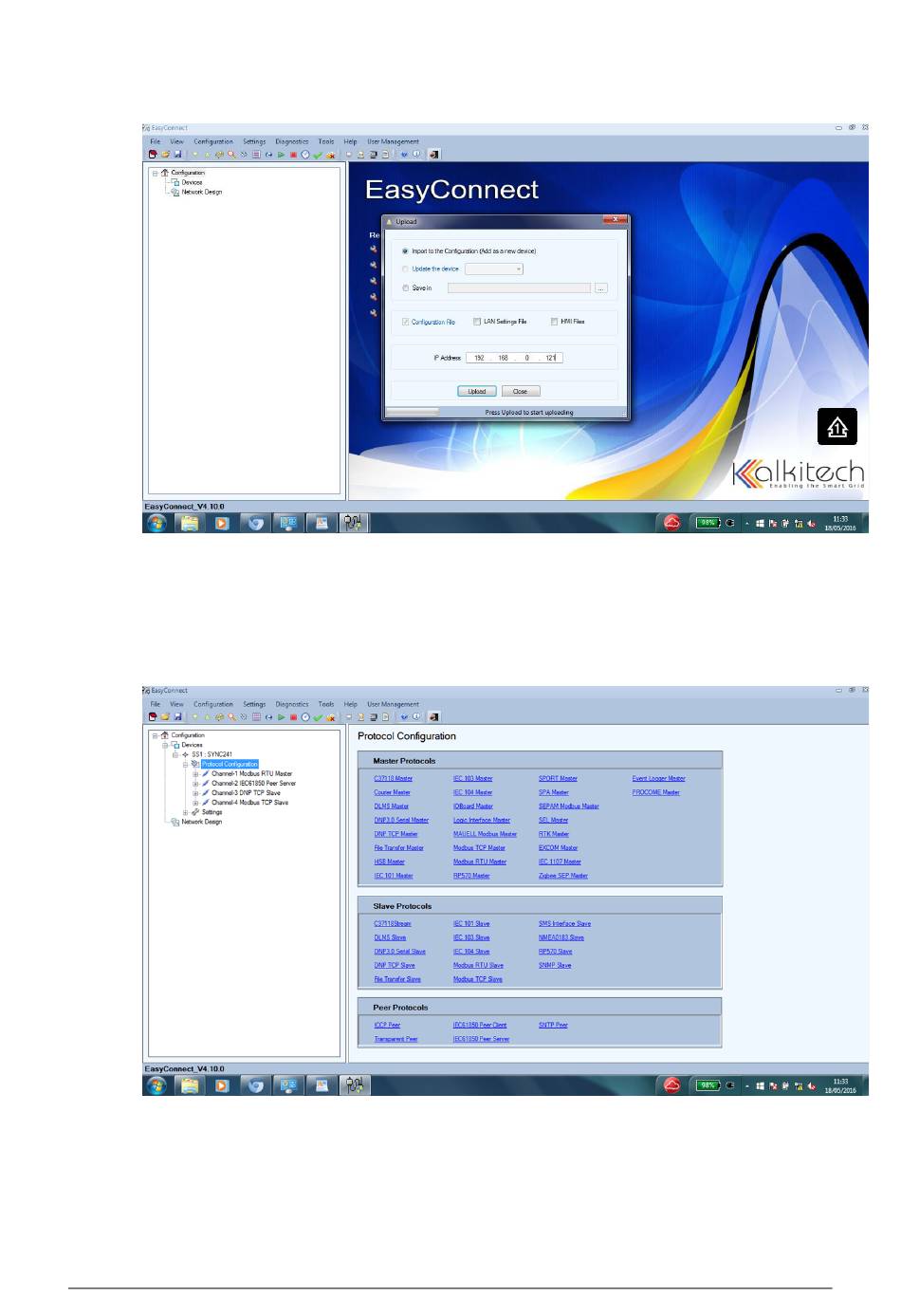

Figure E-13: Upload Kalkitech module settings
4. In the left-hand tree view, select Protocol Configuration. When the new settings are
received from the communications module, the configuration tree updates as shown
in Figure E-14.
Note:
The number of configured channels on the communications module may show
less than four (depending on the configuration purchased).
Figure E-14: Protocol Configuration
MA-017 – BMT 330 Installation Manual – Rev 3.3
4-Mar-22
Page 64 of 69
