GE Intellix BMT 330 Installation Manual page 52

10. Use this measurement for calibration. Select Configure > Save calibration > as
"open" as shown in Figure D-6.

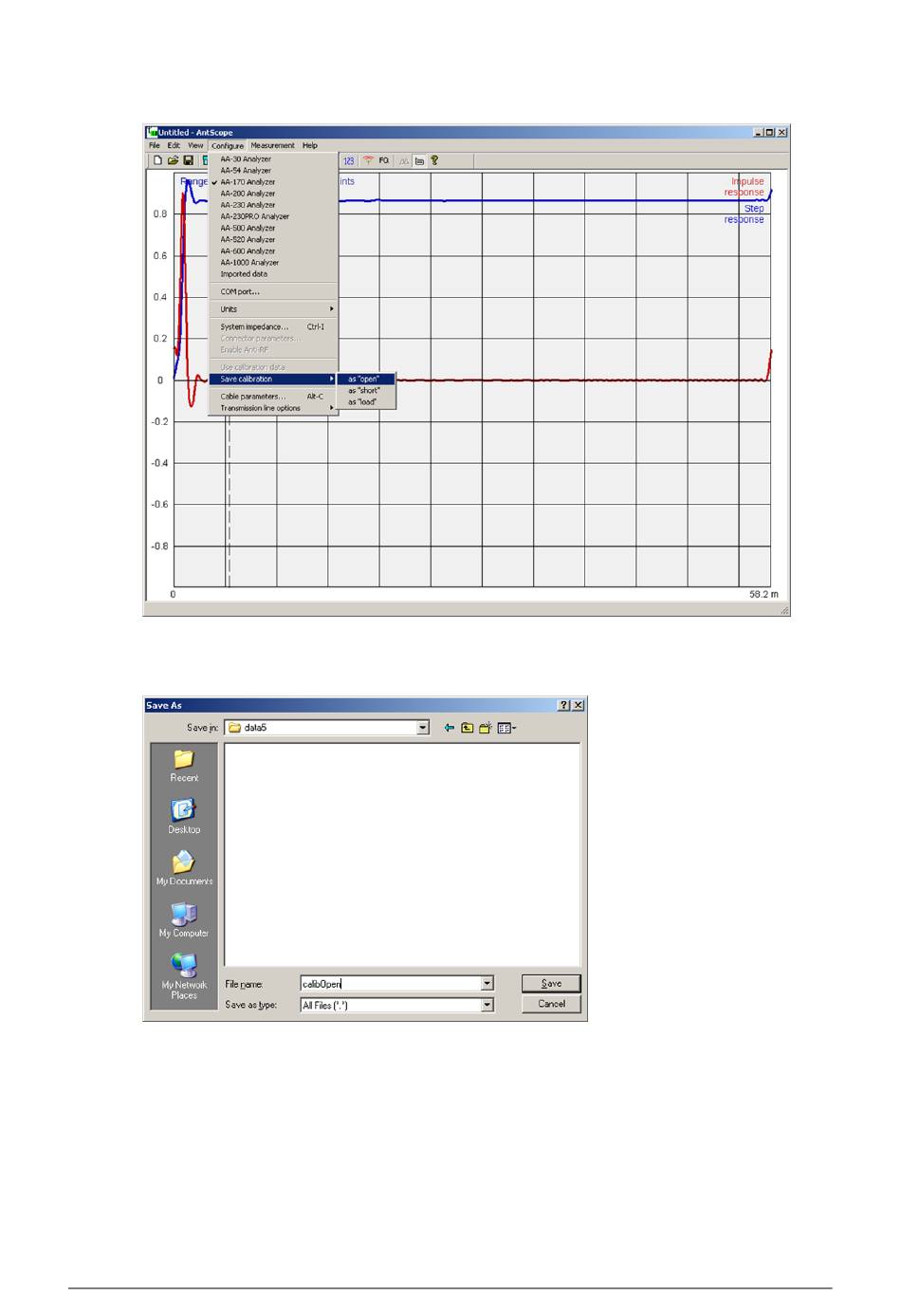

Figure D-6: Save calibration as "open"
11. Select File > Save As and type the filename calibOpen as shown in Figure D-7 to
save the data in the folder created in Step 1 for this Bushing Adaptor.
Figure D-7: Save "open" calibration data
12. Connect the clips to each other as shown in Figure D-9 and run another
measurement (press F8 or click the button). Select Save calibration > as "short"
and type the filename calibShort.
13. Connect the 50 Ω resistor across the clips as shown in Figure D-10 and run another
measurement. Select Save calibration > as "load" and type the filename calibLoad.
