Installation
Electrical Connection
CAUTION:
Damage to the water heaters will occur if the power is turned on without an
adequate water supply.

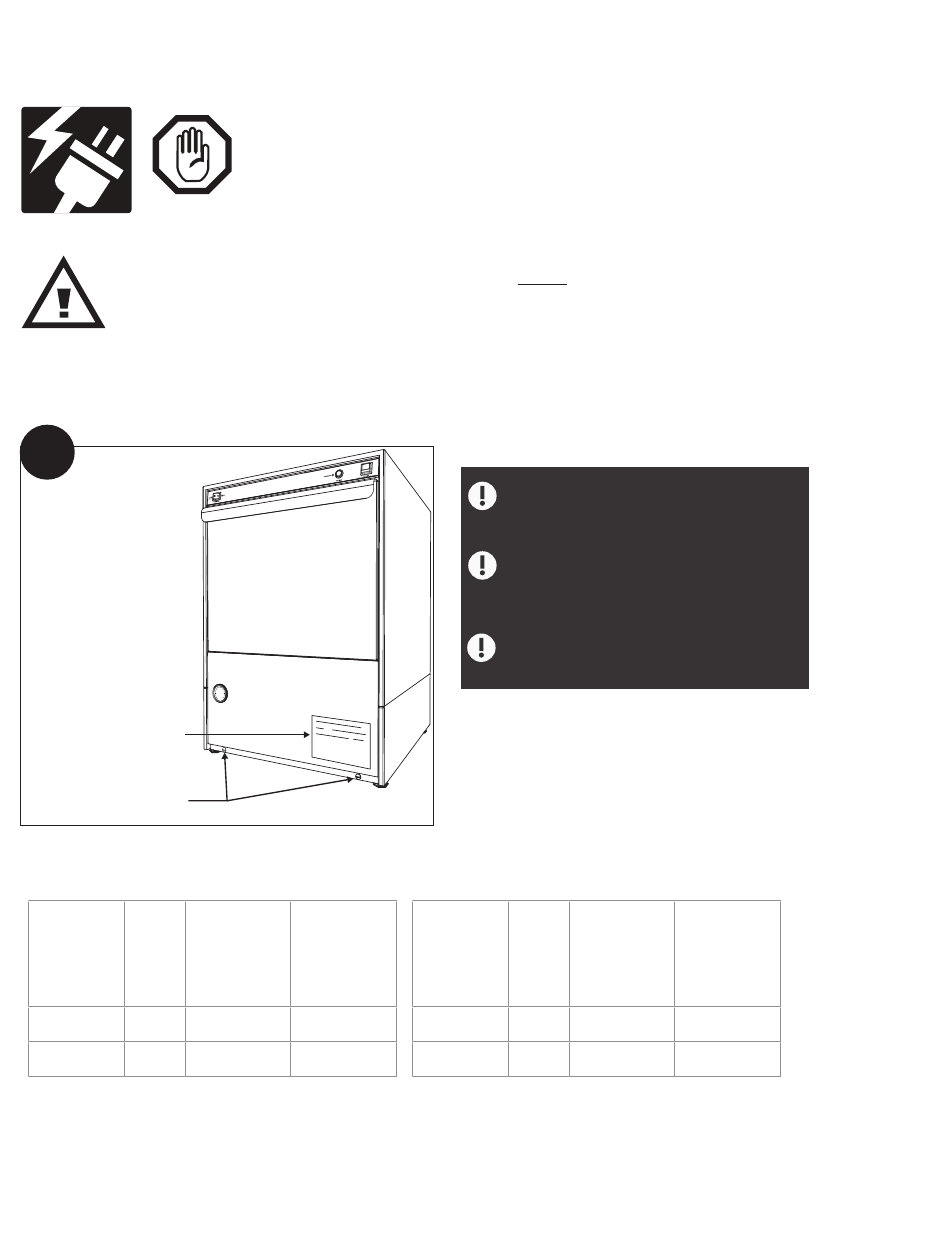

Follow the instructions below and on the next page to connect power to the machine.
1
DATA PLATE
FRONT PANEL
SCREW LOCATION
383HT 40 ˚F/22 ˚C Rise Electric Booster (4kW)
Rated
Ele c. Spec s
Amp s
208/60/1
22
240/60/1
24
7
WARNING:
Electrocution may occur when working on ener-
gized circuits. Disconnect power at the main breaker or service
disconnect switch, then lock out and tag it to indicate that work is
being performed on the circuit.
Electrical connections must be made AFTER the plumbing installation.
30
20
40
psi
10
50
0
60
Fig. 5
M aximu m
Ov ercurre nt
M inimum
Protecti ve
Suppl y
De vice
Circui t
Amp acit y
(Breaker Size)
30
30
30
30
Table - 1
Breaker (Service Disconnect Switch) Size
CHECK THE ELECTRICAL SPECIFICA-
TIONS ON MACHINE DATA PLATE.
REFER TO THE BREAKER SIZE TABLE
BELOW AND ENSURE THE BUILDING
BREAKER SIZE MATCHES.
REMOVE DISHWASHER LOWER
FRONT PANEL TO ACCESS INTERNAL
COMPONENTS FOR INSTALLATION.
383HT 70 ˚F/39 ˚C Rise Electric Booster (6kW)
Minimu m
Rate d
E lec. Sp ecs
Amp s
Ampacit y
208/60/1
29
240/60/1
31
Maximu m
Ov ercurre nt
Protectiv e
Suppl y
De vice
Circui t
(Breaker Size)
40
40
40
40
