HP Kayak XU PC Workstation — Installing Accessories In Your HP PC Workstation
Installing Mass Storage Devices

Installing a Hard Disk Drive in an Internal Shelf

Hard disk drives larger than one inch (1") in height can only be housed
in the lower internal shelf.
1 Disconnect the computer's power cord and any LAN or
telecommunications cable.
2 Remove the computer's cover (refer to page 3).
3 Remove the HP UltraFlow airflow guide (refer to page 5).

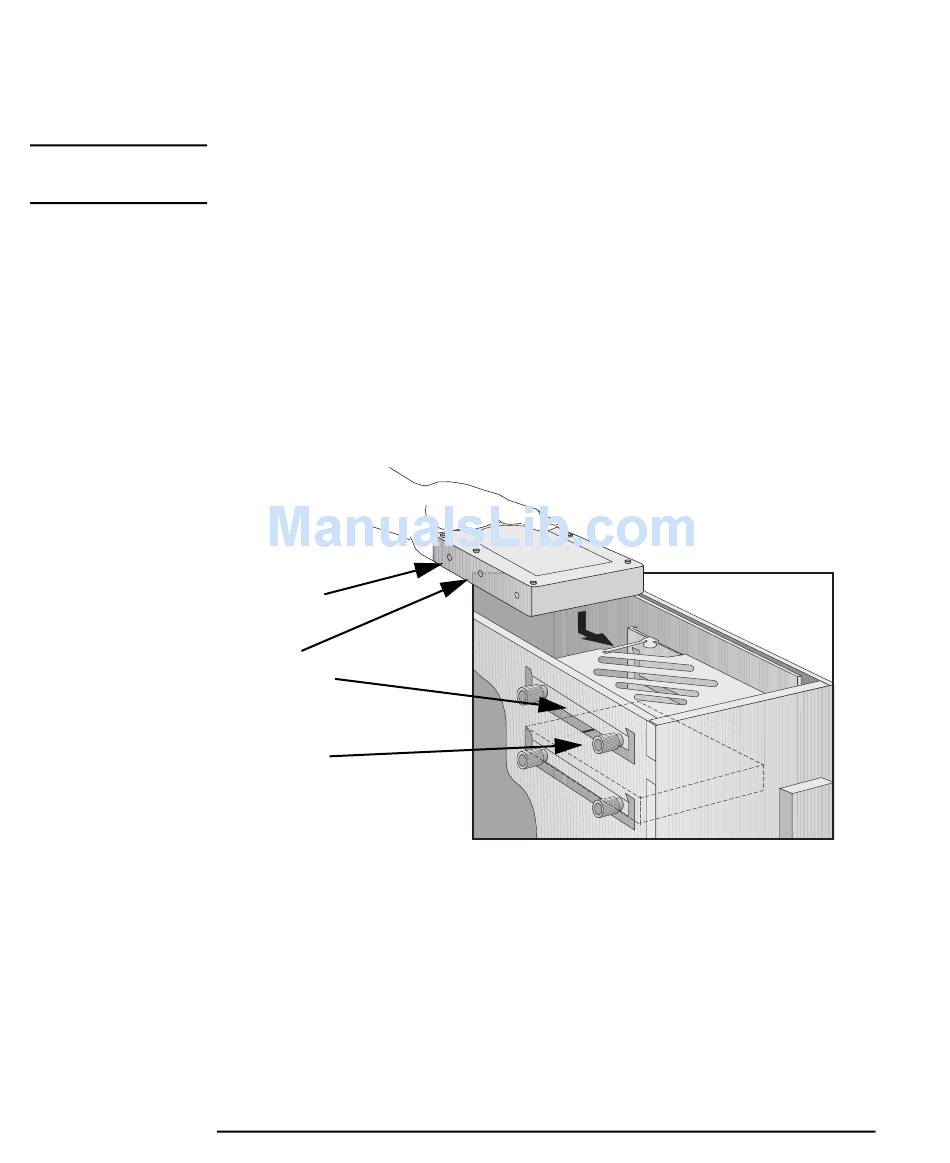

4 Slide the drive into position in the first internal shelf and align the
screw holes in the drive with the four self-retaining screws in the
drive shelf.
Screw hole
Self-retaining
screw
10
English
