HP Kayak XU PC Workstation — Installing Accessories In Your HP PC Workstation
Installing Mass Storage Devices

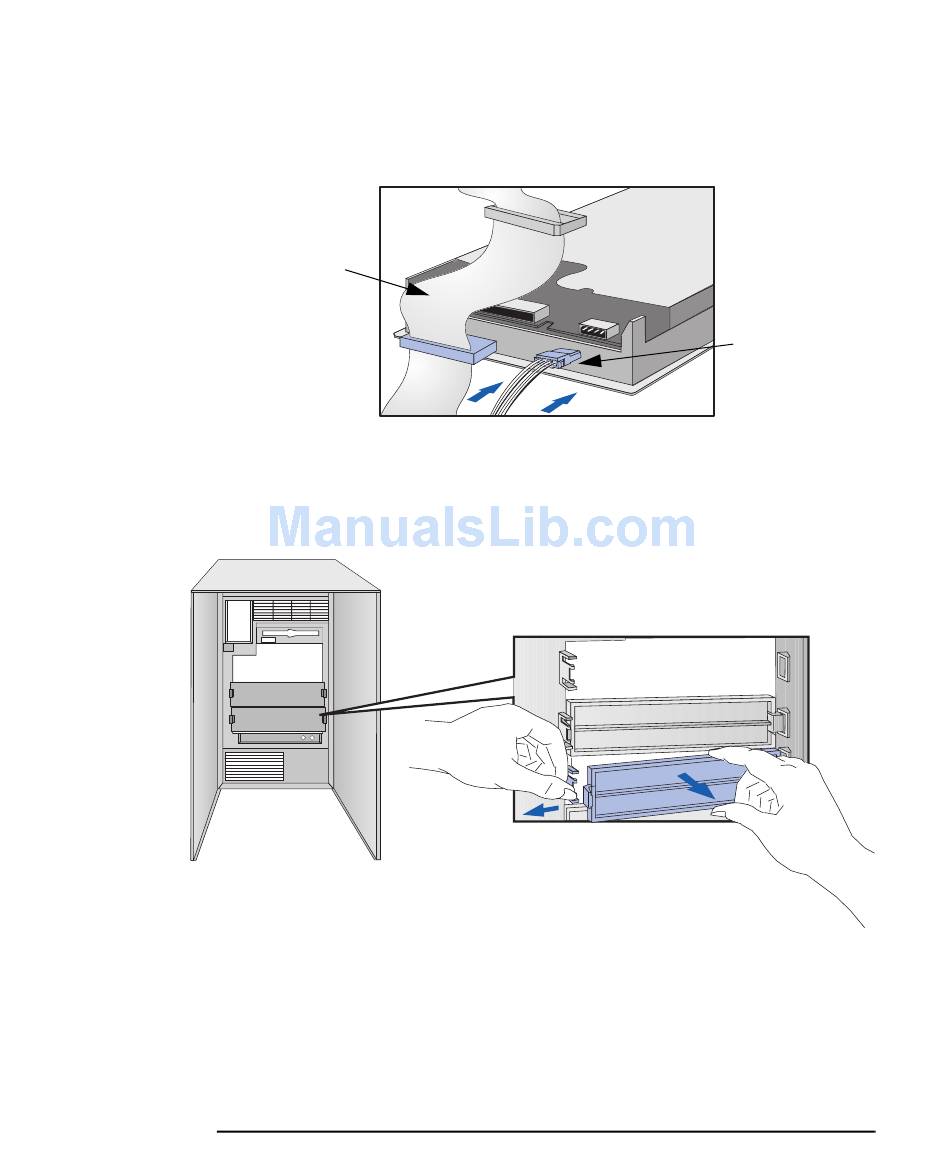

8 Connect the data and power cables to the rear of the device. (The
connectors are shaped to go in one way only.)
Data Cable
9 Remove the plastic panel from the cover by pulling the panel from
the left and unhinging its right-hand side. Store the panel in a safe
place.
10 Install any other accessories before replacing the cover and
completing the installation.
16
English
Power Cable
Unclip and lift out
the plastic panel
