Mechanical Installation

To mount the RAM-300LCD open the front door, remove the dead front plate and mount the

backbox to the wall using the four screws provided. This enclosure may also be mounted to a

4" square electrical box. There are two conduit areas provided at the bottom center of the

enclosure. With the dead front plate removed, you may do the functional setup and wiring

before replacing the dead front, see following sections.

7.0

7.5"

6.0"

FOUR

MOUNTING

HOLES

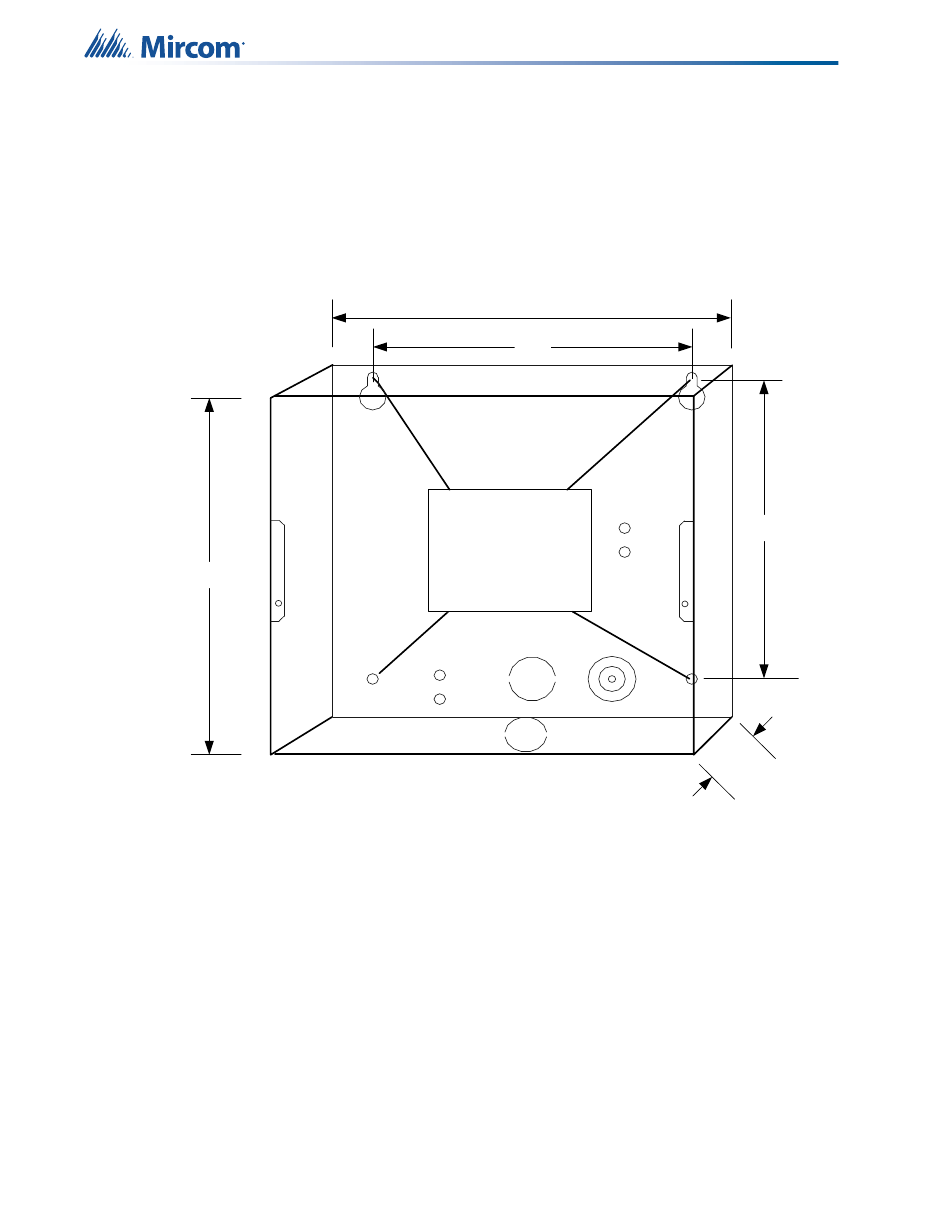

Figure 2

Mechanical Installation

firealarmresources.com

5.9"

1.22"
