Mechanical Installation
Mechanical Installation

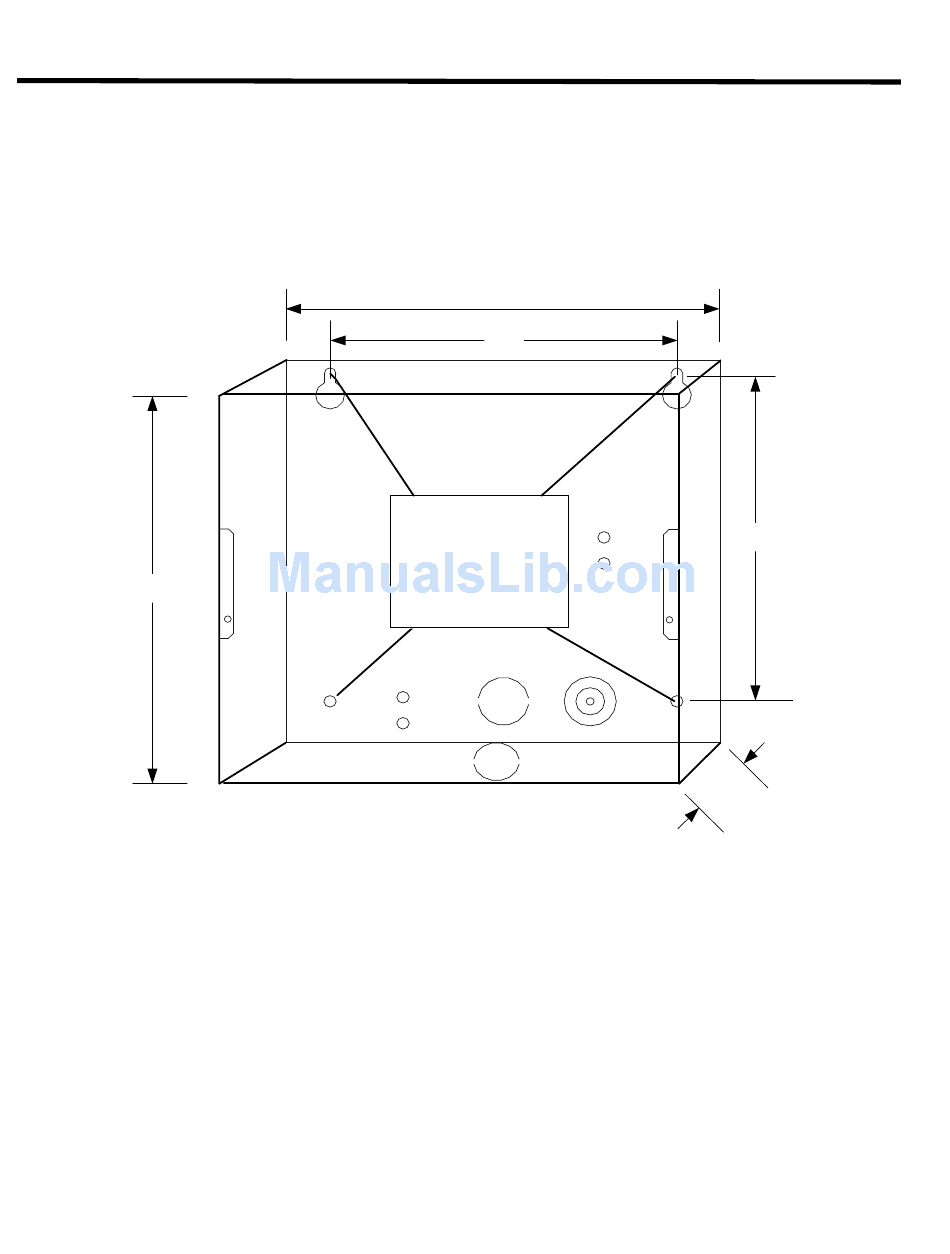

To mount the RAM-300LCD open the front door, remove the dead front plate and mount the backbox to the wall
using the four screws provided. This enclosure may also be mounted to a 4" square electrical box. There are two
conduit areas provided at the bottom center of the enclosure. With the dead front plate removed, you may do the
functional setup and wiring before replacing the dead front, see following sections.
7.0
2
7.5"
6.0"
FOUR
MOUNTING
HOLES
5.9"
1.22"
